Material ID: 6EP7133-6AB00-0BN0

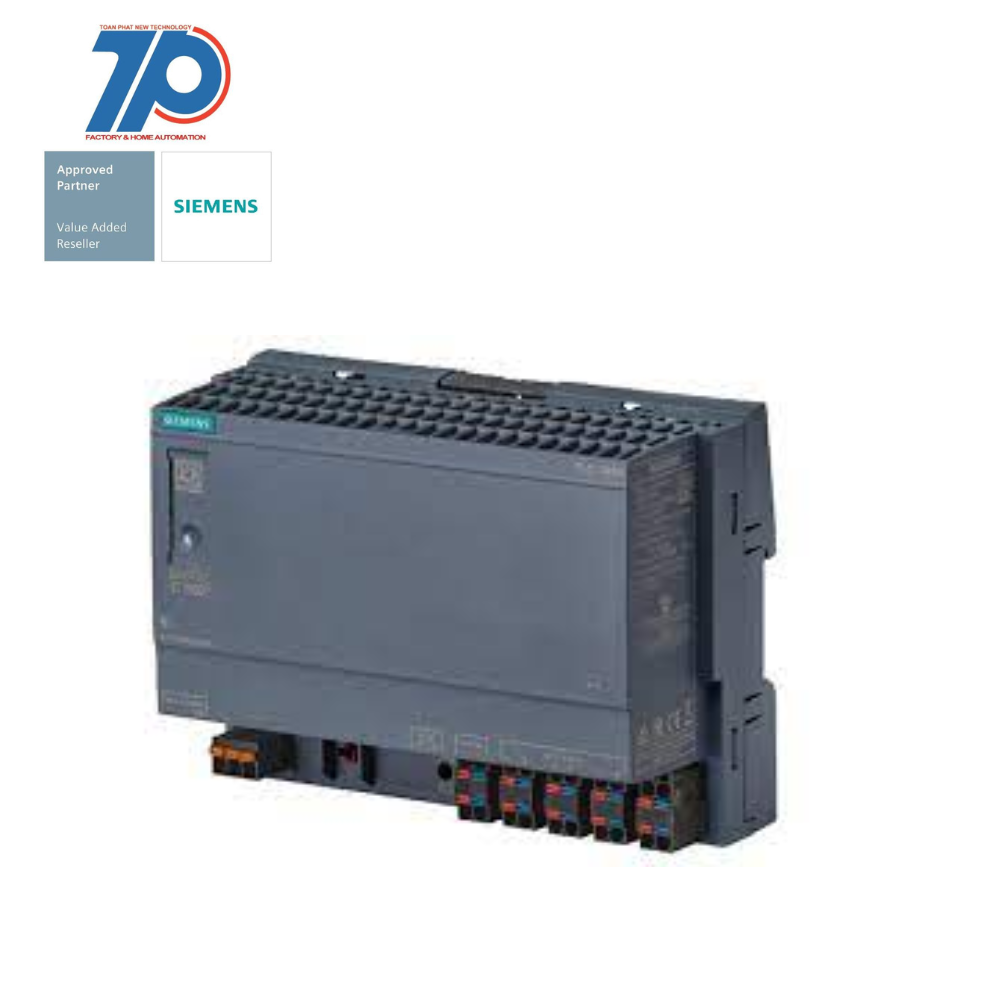

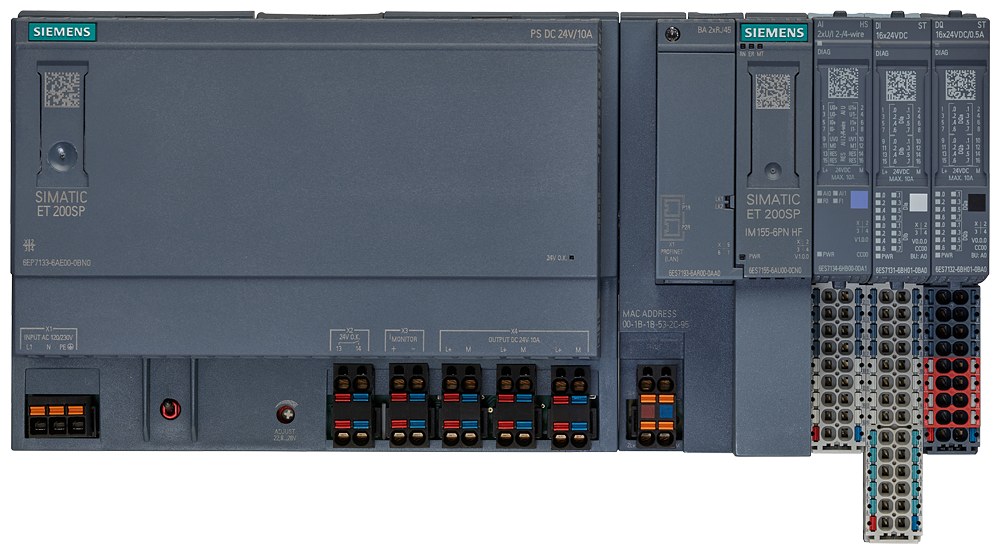

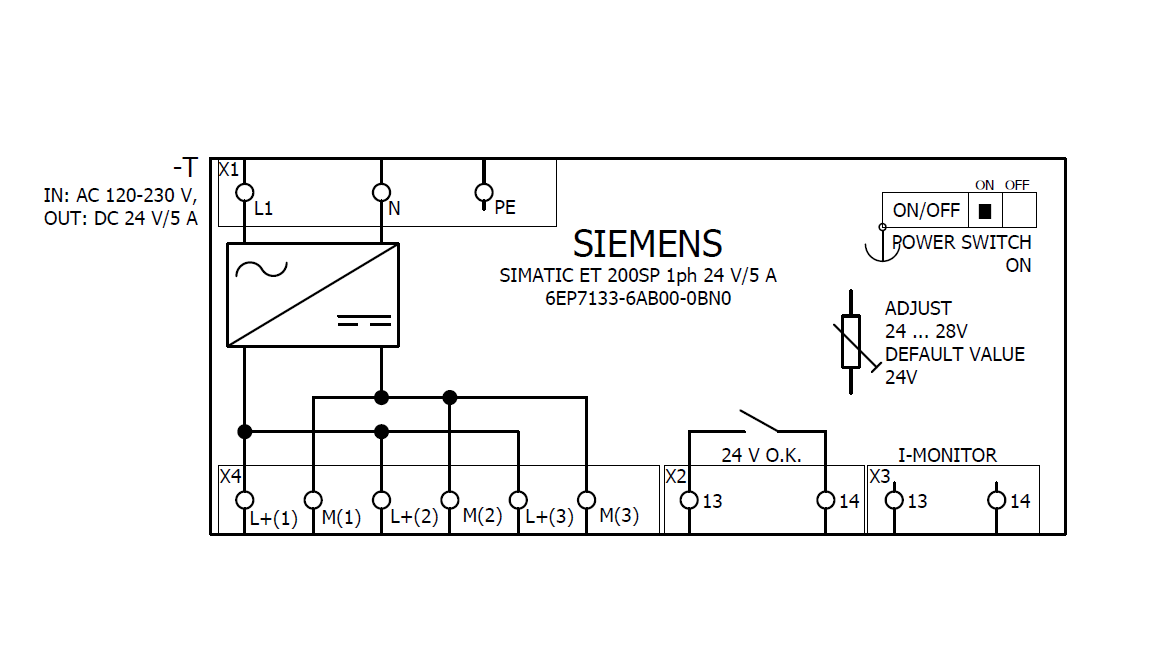

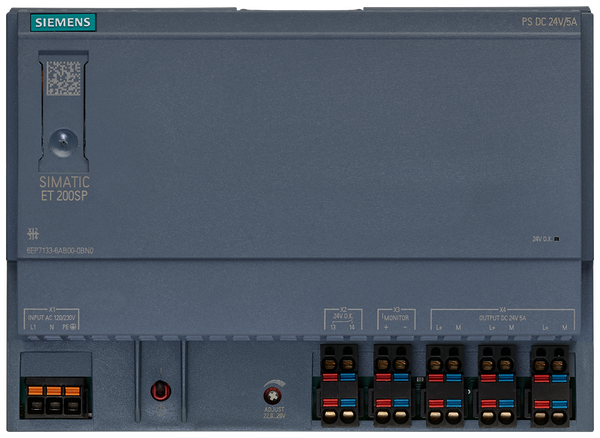

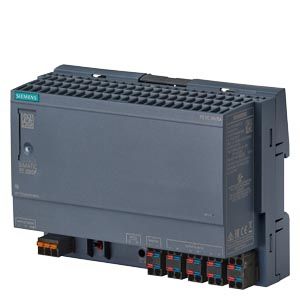

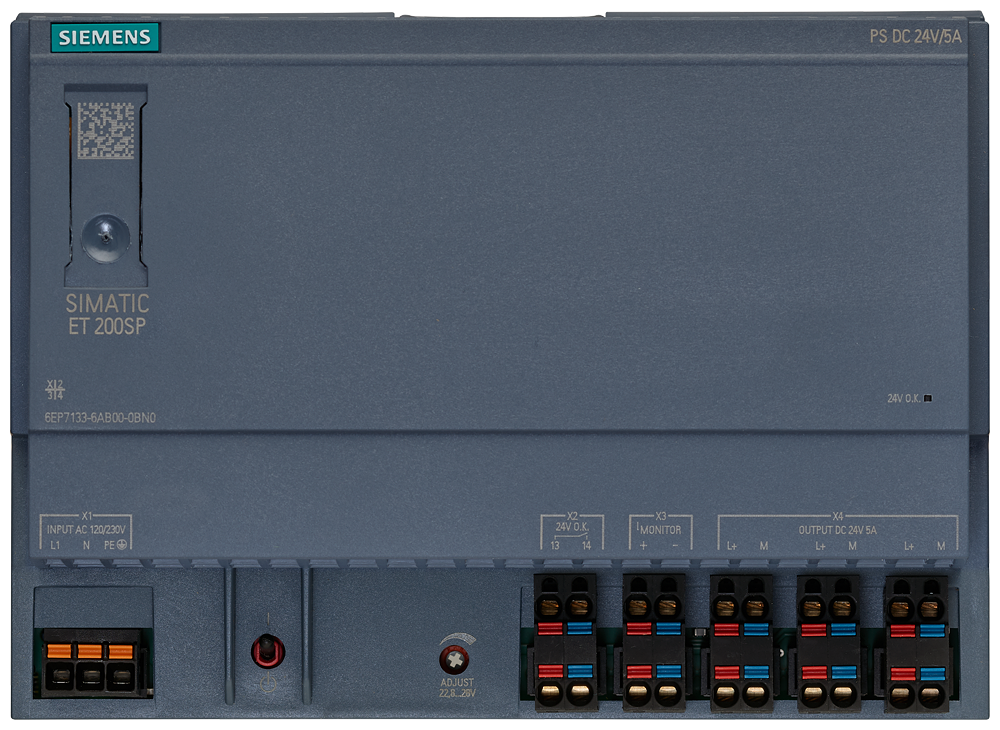

- SIMATIC ET 200SP PS 24V/5A Stabilized power supply
- Input: 120/230 V AC
- Output: 24 V DC/5 A

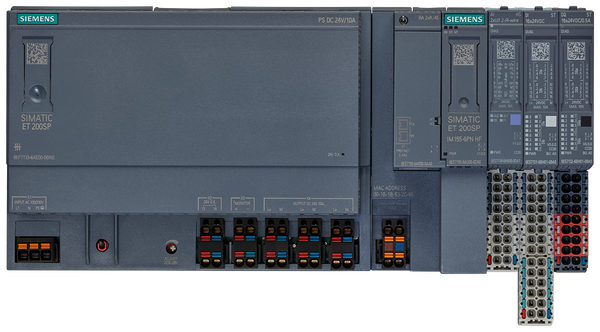

- Designed to match the enclosure design of the CPU
- Can be used in on-site control cabinets
- Offers outstanding overload behavior
- Extra Power of 150% allows connection of consumers with high power consumption
- Permanent overload capacity of 120% provides power reserves for expansions
- High efficiency ensures low power consumption and low heat generation
- Can be combined with buffer, DC UPS, redundancy, and selectivity modules
- Reliable and efficient power supplies for any plant
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Stabilized | true |
| Rated supply voltage AC 50 Hz | 230 V |

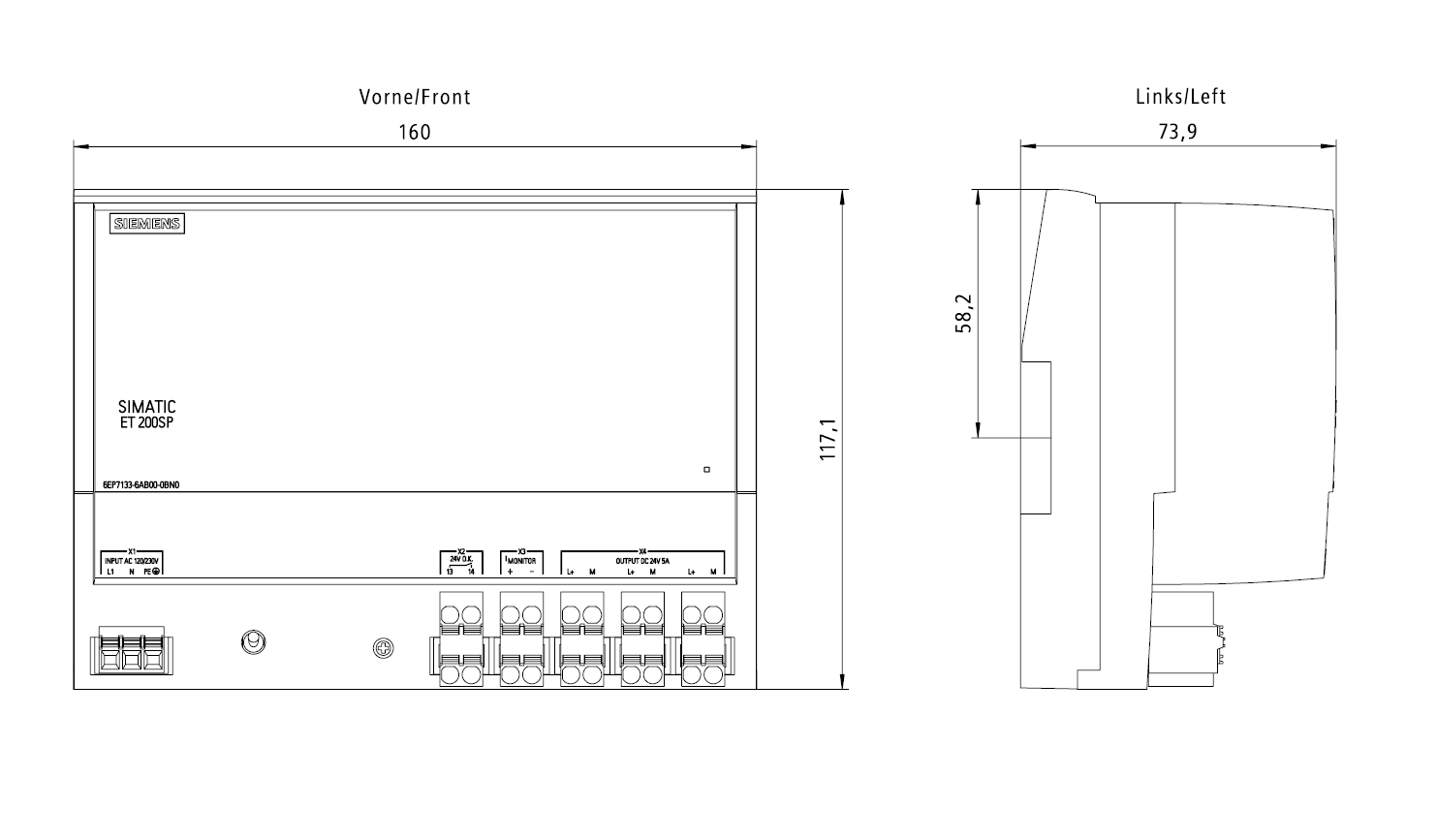

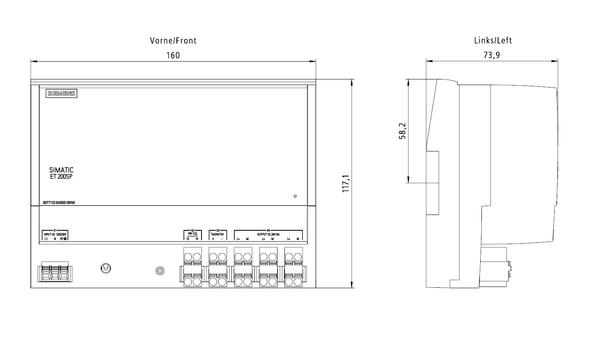

| Built-in width | 160 mm |
| Output voltage stabilized | true |
| Depth | 74 mm |
| Built-in height | 174 mm |
| Rail mounting possible | true |
| Direct mounting possible | false |
| Width | 160 mm |
| Height | 117 mm |
| Modular version | true |
| Nominal value output current 1 | 5 A |
| Power output | 120 W |
| Voltage type (supply voltage) | AC |
| Rated supply voltage AC 60 Hz | 120 V |
| Max. output current 1 | 6 A |
| Nominal value output voltage 1 | 24 V |
| 1st secondary output voltage | 24 V |
| Secondary voltage adjustable | true |
| Degree of protection (IP) | IP20 |
| Wall mounting possible | false |
| Short-circuit-proof | true |
