Material ID: 6ES7131-4BB01-0AB0Product Description

Spare part

SIMATIC DP, 5 electronic modules for ET 200S, 2 DI High Feature 24 V DC, 15 mm width, with param. input delay Diagnostics encoder short circuit with SF LED (group fault) 5 units per packing unit

Technical Features

Commercial Benefits

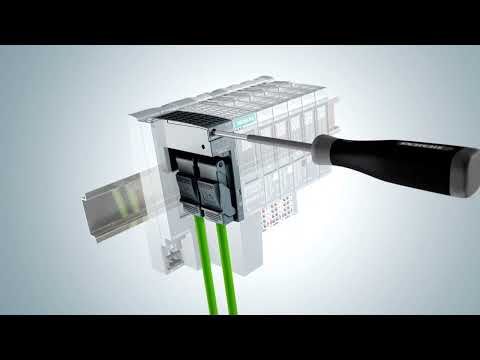

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Modules can be inserted in any combination
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available
    • ET 200S system allows swapping modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Enhanced availability and productivity of the machine
    • Capability of "hot swapping" increases machine uptime
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE

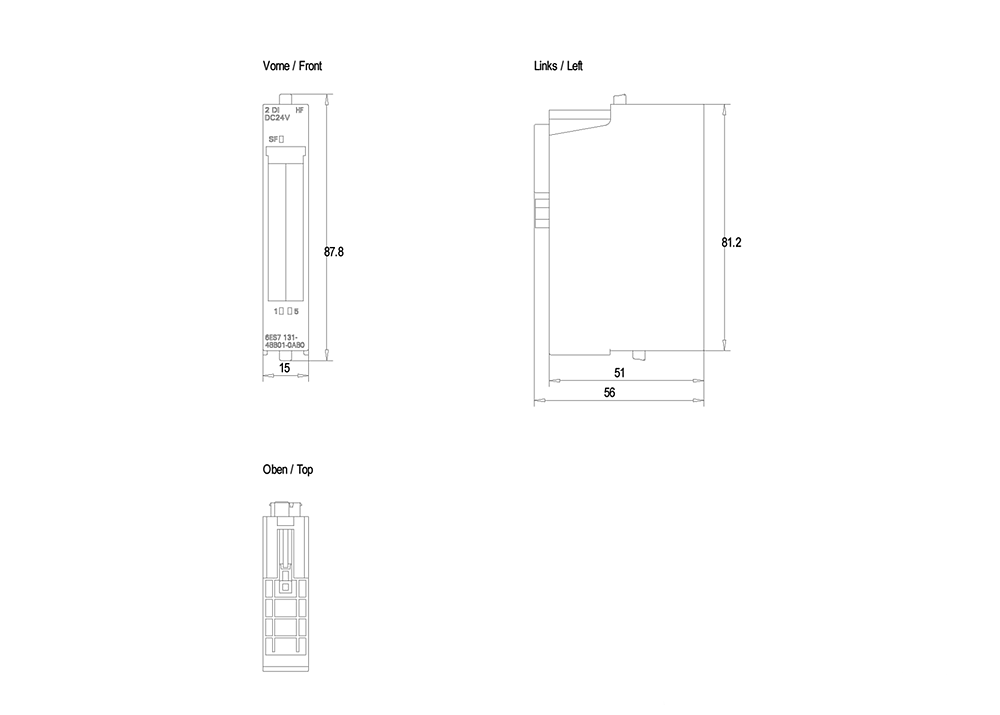

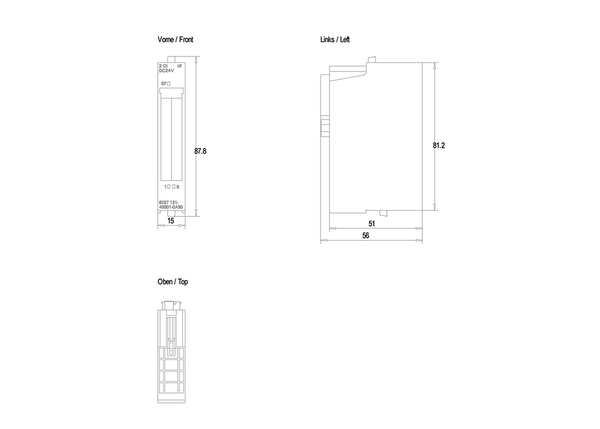

Depth52 mm
Supporting protocol for DeviceNetfalse
Supporting protocol for SafetyBUS pfalse
Radio standard WLAN 802.11false
Permitted voltage at input-30 V
Supporting protocol for PROFINET CBAfalse
Wall mounting/direct mountingfalse
Suitable for safety functionsfalse
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Radio standard GSMfalse
Front built-in possiblefalse
Supply voltage DC20.4 V
Digital inputs configurabletrue
Type of voltage (input voltage)DC
Height81 mm
Appendant operation agent (Ex ib)false
Number of HW-interfaces other0
Radio standard Bluetoothfalse
Number of digital inputs2
Number of HW-interfaces RS-4220
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Radio standard GPRSfalse
Time delay at signal change15.15 ms
Number of HW-interfaces industrial Ethernet0
IO link masterfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for CANfalse
Width15 mm
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for Modbusfalse
Number of HW-interfaces wireless0
Rail mounting possibletrue
Permitted voltage at input30 V
Supporting protocol for SERCOSfalse
Supporting protocol for KNXfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-2320
Input current at signal 18 mA
Supporting protocol for EtherNet/IPfalse
Number of digital outputs0
Supporting protocol for PROFIsafefalse
Supporting protocol for LONfalse
With optical interfacefalse
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4850
Type of digital outputNone
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC28.8 V
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for PROFINET IOfalse
System accessorytrue
Appendant operation agent (Ex ia)false
Time delay at signal change0.015 ms
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
