Material ID: 6ES7131-4BD01-0AB0Spare part - SIMATIC DP

Spare part - SIMATIC DP

Technical Features

Commercial Benefits

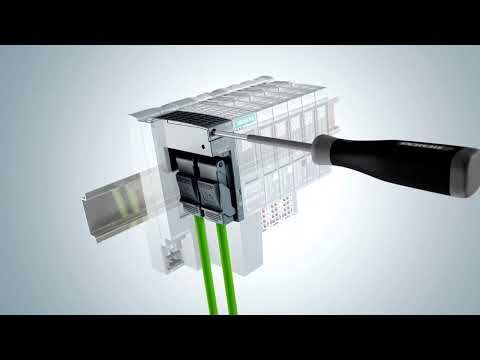

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    • 5 electronic modules for ET 200S
    • 4 DI High Feature 24 V DC
    • 15 mm width
    • Param. input delay
    • Diagnostics encoder short circuit with SF LED (group fault)
    • 5 units per packing unit
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
With optical interfacefalse

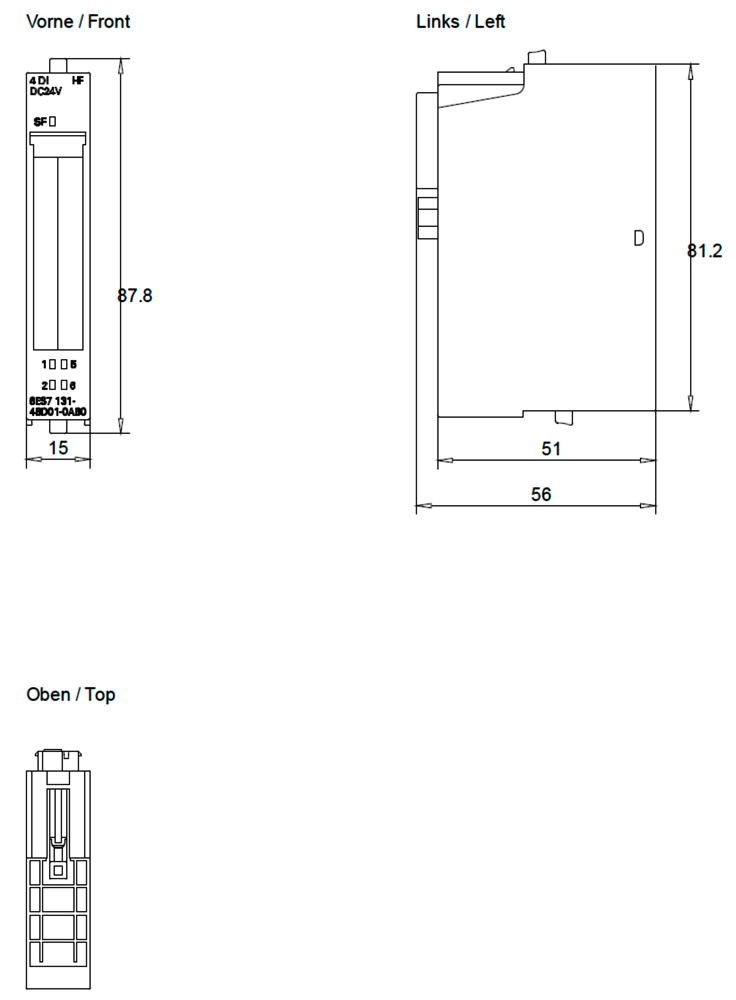

Height81 mm
Supporting protocol for TCP/IPfalse
Number of HW-interfaces USB0
Radio standard Bluetoothfalse
Supply voltage DC28.8 V
Depth52 mm
Appendant operation agent (Ex ib)false
Supporting protocol for SUCONETfalse
Supporting protocol for SafetyBUS pfalse
Type of digital outputNone
Front built-in possiblefalse
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
Time delay at signal change15.15 ms
Number of HW-interfaces serial TTY0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Width15 mm
Supporting protocol for DeviceNetfalse
Rack-assembly possiblefalse
Supply voltage DC20.4 V
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-2320
Supporting protocol for LONfalse
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces other0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIsafefalse
IO link masterfalse
Radio standard UMTSfalse
Radio standard WLAN 802.11false
Permitted voltage at input30 V
Supporting protocol for SERCOSfalse
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces parallel0
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse
Digital inputs configurabletrue
Wall mounting/direct mountingfalse
Time delay at signal change0.015 ms
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Suitable for safety functionsfalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for Modbusfalse
Number of HW-interfaces wireless0
Number of digital inputs4
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Type of voltage (input voltage)DC
Input current at signal 18 mA
Number of digital outputs0
Radio standard GPRSfalse
Rail mounting possibletrue
Number of HW-interfaces RS-4850
Supporting protocol for CANfalse
Permitted voltage at input-30 V
Supporting protocol for ASIfalse
