Material ID: 6ES7131-4BF00-0AA0

Spare part

Electronics module for ET 200S, 8DI 24 V DC 15 mm width, 1 unit per packing unit

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Modules can be inserted in any combination
    • Comprehensive range of modules available
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity due to "hot swapping"
    • Scalability in functionality and price
    • Improved machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for TCP/IPfalse
Digital inputs configurabletrue
Supporting protocol for LONfalse
Supply voltage DC20.4 V
System accessorytrue
Radio standard Bluetoothfalse
Wall mounting/direct mountingfalse
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSfalse
Number of digital outputs0
Number of HW-interfaces industrial Ethernet0
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Number of HW-interfaces wireless0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for EtherNet/IPfalse
Rail mounting possibletrue
Supporting protocol for DeviceNet Safetyfalse
Input current at signal 15 mA
Supply voltage DC28.8 V
Radio standard GPRSfalse

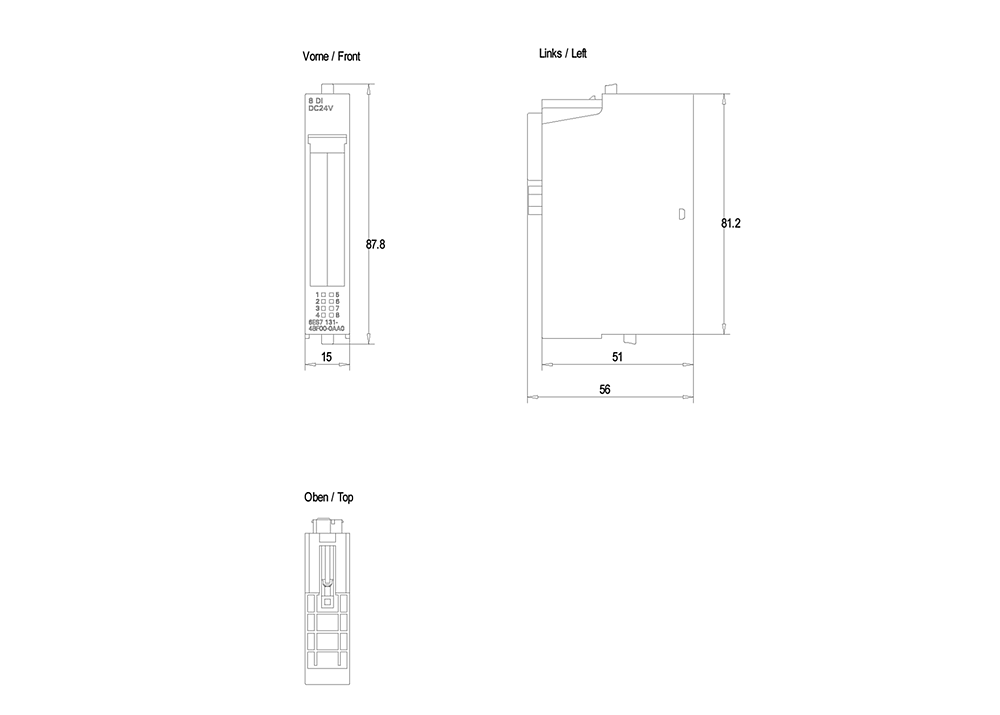

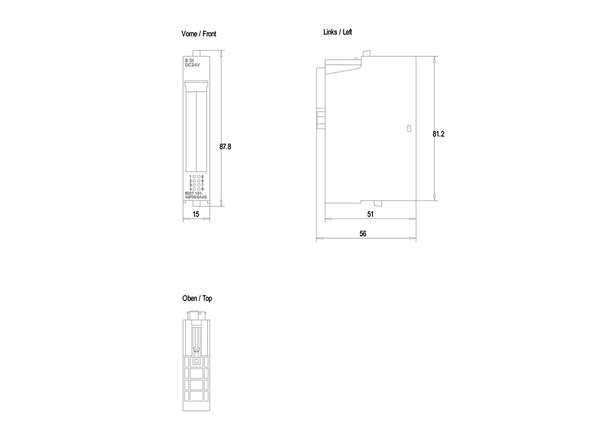

Height81 mm
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Front built-in possiblefalse
Type of digital outputNone
Permitted voltage at input30 V
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Supporting protocol for SERCOSfalse
Time delay at signal change4.5 ms
Type of voltage (input voltage)DC
Number of HW-interfaces other0
With optical interfacefalse
Depth52 mm
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Number of digital inputs8
Time delay at signal change2 ms
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNetfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for ASIfalse
Appendant operation agent (Ex ib)false
Number of interfaces PROFINET0
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces USB0
Radio standard GSMfalse
Suitable for safety functionsfalse
Degree of protection (IP)IP20
Permitted voltage at input-30 V
IO link masterfalse
Width15 mm
Appendant operation agent (Ex ia)false
Number of HW-interfaces serial TTY0
