Material ID: 6ES7131-4BF50-0AA0

Spare part

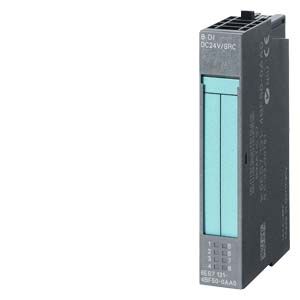

Electronics module for ET 200S, 8 DI source input 24 V DC, 15 mm width, 1 unit per packing unit

Technical Features

Commercial Benefits

SIMATIC ET 200S is a versatile and efficient solution for your control system needs. With its modular design and wide range of modules, it offers flexibility and scalability. The system is easy to install, allowing for quick and hassle-free integration into small control boxes near the machine. Whether you need standard functions or advanced diagnostics, SIMATIC ET 200S has the right module for you. The ability to swap modules and terminal boxes during operation ensures minimal downtime and increased productivity. Upgrade your control system with the reliable and innovative ET 200S.

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics, including standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine due to "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Radio standard GSMfalse
Supporting protocol for ASIfalse
Time delay at signal change4.5 ms
Supporting protocol for other bus systemsfalse
Supporting protocol for SERCOSfalse
Width15 mm
Radio standard WLAN 802.11false
Type of digital outputNone
Input current at signal 16 mA
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for LONfalse
Supporting protocol for SUCONETfalse
Supporting protocol for CANfalse
Digital inputs configurabletrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supply voltage DC28.8 V
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
Radio standard GPRSfalse
Type of voltage (input voltage)DC
Rail mounting possibletrue
Rack-assembly possiblefalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Supporting protocol for EtherNet/IPfalse
Number of digital outputs0
Time delay at signal change2 ms
Degree of protection (IP)IP20
Number of HW-interfaces wireless0
Height81 mm
System accessorytrue
Supporting protocol for Modbusfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Permitted voltage at input-30 V
Supporting protocol for PROFINET CBAfalse
Permitted voltage at input30 V
Number of HW-interfaces RS-2320
Front built-in possiblefalse
Supporting protocol for PROFIsafefalse
Appendant operation agent (Ex ia)false
Supporting protocol for TCP/IPfalse
Wall mounting/direct mountingfalse
Number of HW-interfaces parallel0
Depth52 mm
IO link masterfalse
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Number of digital inputs8
Supporting protocol for KNXfalse
Radio standard UMTSfalse
Number of HW-interfaces USB0
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4850
Suitable for safety functionsfalse
Appendant operation agent (Ex ib)false
Supply voltage DC20.4 V
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces other0
Supporting protocol for DeviceNet Safetyfalse
Number of interfaces PROFINET0
