Material ID: 6ES7131-4CD02-0AB0

Spare part

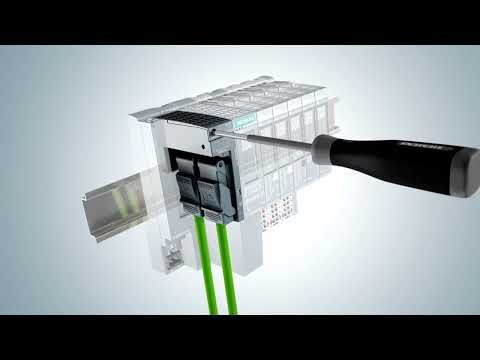

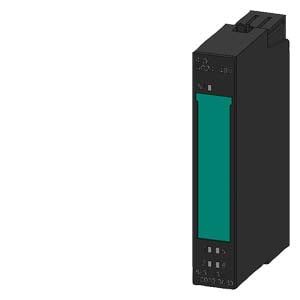

SIMATIC DP, 5 electronic modules ET 200S: 4 DI 24 V...48 V UI, 15 mm width, with SF LED (group fault) 5 units per packing unit

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
    • Swappable modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine
    • Capability of "hot swapping" for easy application
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supply voltage DC48 V
Permitted voltage at input57.6 V
Supporting protocol for KNXfalse

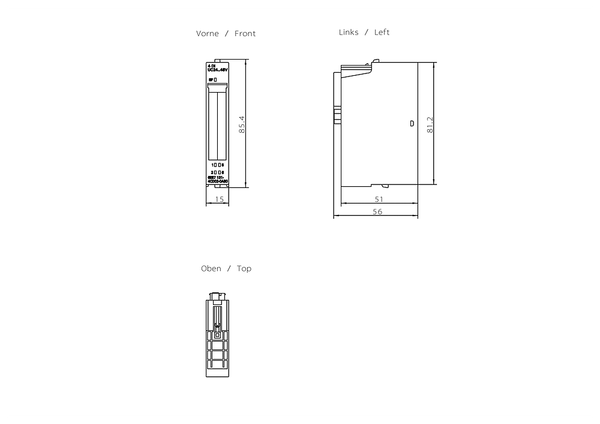

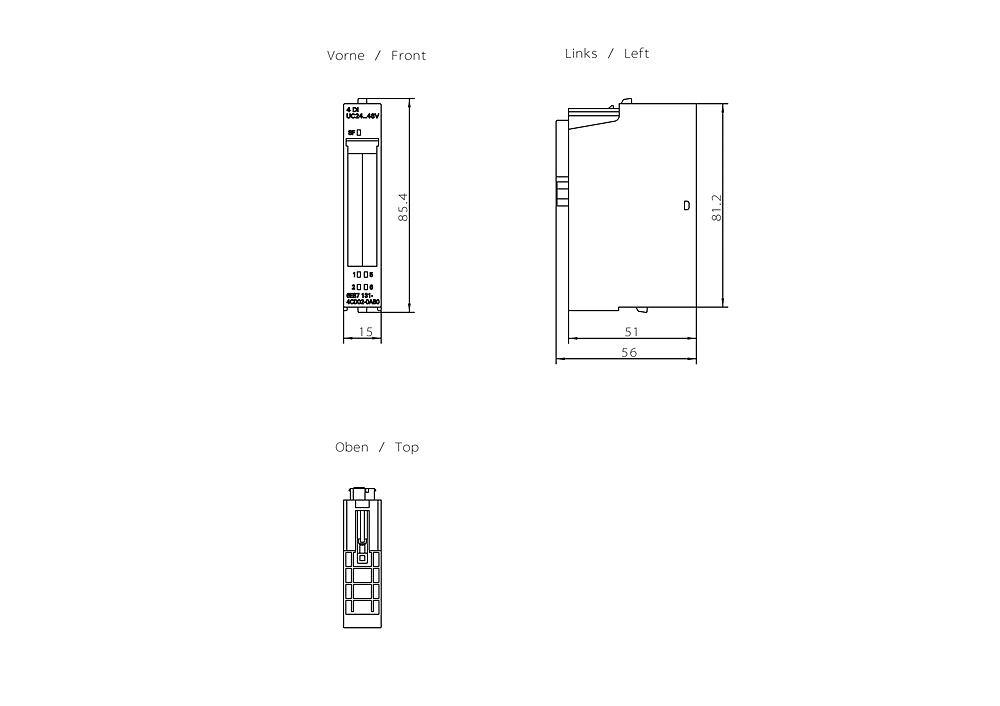

Width15 mm
Time delay at signal change15 ms
Voltage type (supply voltage)AC/DC
Supply voltage AC 60 Hz48 V
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
System accessorytrue
Supporting protocol for other bus systemsfalse
Supporting protocol for Modbusfalse
IO link masterfalse
Supporting protocol for AS-Interface Safety at Workfalse
Type of voltage (input voltage)AC/DC
Supporting protocol for ASIfalse
Degree of protection (IP)IP20
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-2320
Number of HW-interfaces other0
Supply voltage DC24 V
Wall mounting/direct mountingfalse
Supporting protocol for INTERBUSfalse
Radio standard GSMfalse
Supporting protocol for CANfalse
Number of HW-interfaces parallel0
Appendant operation agent (Ex ib)false
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Time delay at signal change10 ms
Appendant operation agent (Ex ia)false
Supply voltage AC 60 Hz24 V
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
Front built-in possiblefalse
Number of digital outputs0
Supporting protocol for PROFIsafefalse
Number of HW-interfaces USB0
Supply voltage AC 50 Hz24 V
Supporting protocol for Foundation Fieldbusfalse
Supply voltage AC 50 Hz48 V
Supporting protocol for PROFINET CBAfalse
Height81 mm
Rail mounting possibletrue
Number of interfaces PROFINET0
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for INTERBUS-Safetyfalse
Digital inputs configurabletrue
Depth52 mm
With optical interfacefalse
Radio standard GPRSfalse
Input current at signal 110 mA
Permitted voltage at input-57.6 V
Number of digital inputs4
Supporting protocol for DeviceNet Safetyfalse
Radio standard WLAN 802.11false
Type of digital outputNone
Radio standard Bluetoothfalse
Number of HW-interfaces RS-4850
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Supporting protocol for TCP/IPfalse
