Material ID: 6ES7131-4EB00-0AB0Spare part - SIMATIC DP

Spare part - SIMATIC DP

Technical Features

Commercial Benefits

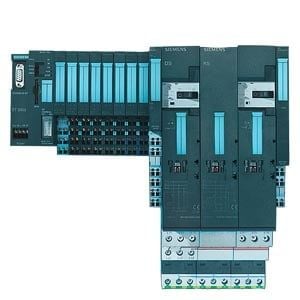

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination.

The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    • 5 electronic modules for ET 200S
    • 2 DI 120 V AC 15 mm width
    • 5 units per packing unit
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Type of voltage (input voltage)AC
System accessorytrue
Appendant operation agent (Ex ib)false
Radio standard UMTSfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFINET IOfalse
Radio standard WLAN 802.11false
Digital inputs configurabletrue
Number of HW-interfaces USB0
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces serial TTY0
Supporting protocol for LONfalse
With optical interfacefalse
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for Modbusfalse
Wall mounting/direct mountingfalse
Degree of protection (IP)IP20
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Supporting protocol for KNXfalse
Number of HW-interfaces wireless0
Number of digital inputs2
Radio standard Bluetoothfalse
Rail mounting possibletrue
Rack-assembly possiblefalse
Depth52 mm
Supporting protocol for EtherNet/IPfalse
Voltage type (supply voltage)AC
Permitted voltage at input0 V
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNet Safetyfalse
Time delay at signal change15 ms
Supply voltage AC 50 Hz102 V
Supporting protocol for DeviceNetfalse
Supply voltage AC 60 Hz102 V
Number of interfaces PROFINET0
Width15 mm
Supporting protocol for INTERBUS-Safetyfalse
Time delay at signal change25 ms
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Supporting protocol for ASIfalse
Number of HW-interfaces RS-2320
Permitted voltage at input132 V
Supporting protocol for other bus systemsfalse
Supporting protocol for SERCOSfalse
Front built-in possiblefalse
Type of digital outputNone
Supporting protocol for PROFIBUSfalse
Number of digital outputs0
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Input current at signal 13 mA
Supply voltage AC 50 Hz144 V
Radio standard GSMfalse
IO link masterfalse
Supply voltage AC 60 Hz144 V
Appendant operation agent (Ex ia)false
Supporting protocol for INTERBUSfalse
Height81 mm
Suitable for safety functionsfalse
