Material ID: 6ES7131-4RD02-0AB0

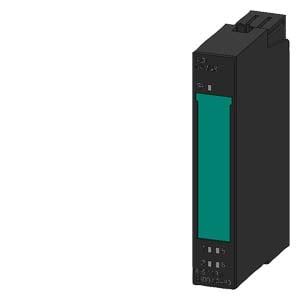

Spare part - Electronics module ET 200S

The Electronics module ET 200S is a spare part for industrial applications. It is designed for installation in small control boxes near the machine.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200S system offers modular scalability and distributed I/O capabilities. It can be directly connected to an ET 200S IM with CPU functionality or to a central controller via PROFINET or PROFIBUS.

Key benefits of the SIMATIC ET 200S system include:

Overall, the Electronics module ET 200S is a reliable and versatile spare part that enhances the performance and flexibility of industrial control systems.

    • 4 DI 24 V DC NAMUR: This module has 4 digital input channels operating at 24 volts DC according to the NAMUR standard.
    • 15 mm width: The module has a compact design with a width of only 15 mm, allowing for easy installation in tight spaces.
    • SF LED (group fault): The module is equipped with a status LED that indicates group faults, providing quick and easy troubleshooting.
    • Expandability: The system can be expanded with up to 64 I/O modules, allowing for flexible configuration and future expansion.
    • Comprehensive Range of Modules: The system offers a wide variety of modules with different characteristics, improving functionality and price scalability.

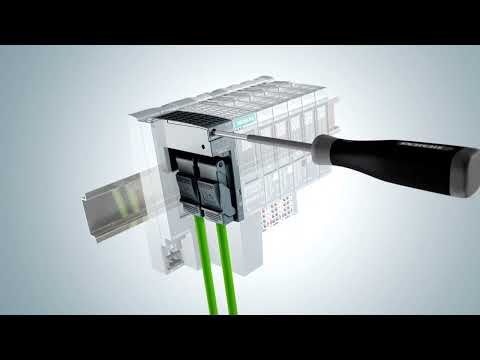

    • Hot Swapping: The ET 200S system supports hot swapping, allowing for module and terminal box replacement during operation. This feature increases machine availability and productivity.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
IO link masterfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces serial TTY0
Supporting protocol for CANfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for KNXfalse
Supporting protocol for LONfalse
Number of HW-interfaces wireless0
Rail mounting possibletrue
Number of HW-interfaces RS-4850
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Suitable for safety functionsfalse
Supporting protocol for DeviceNet Safetyfalse

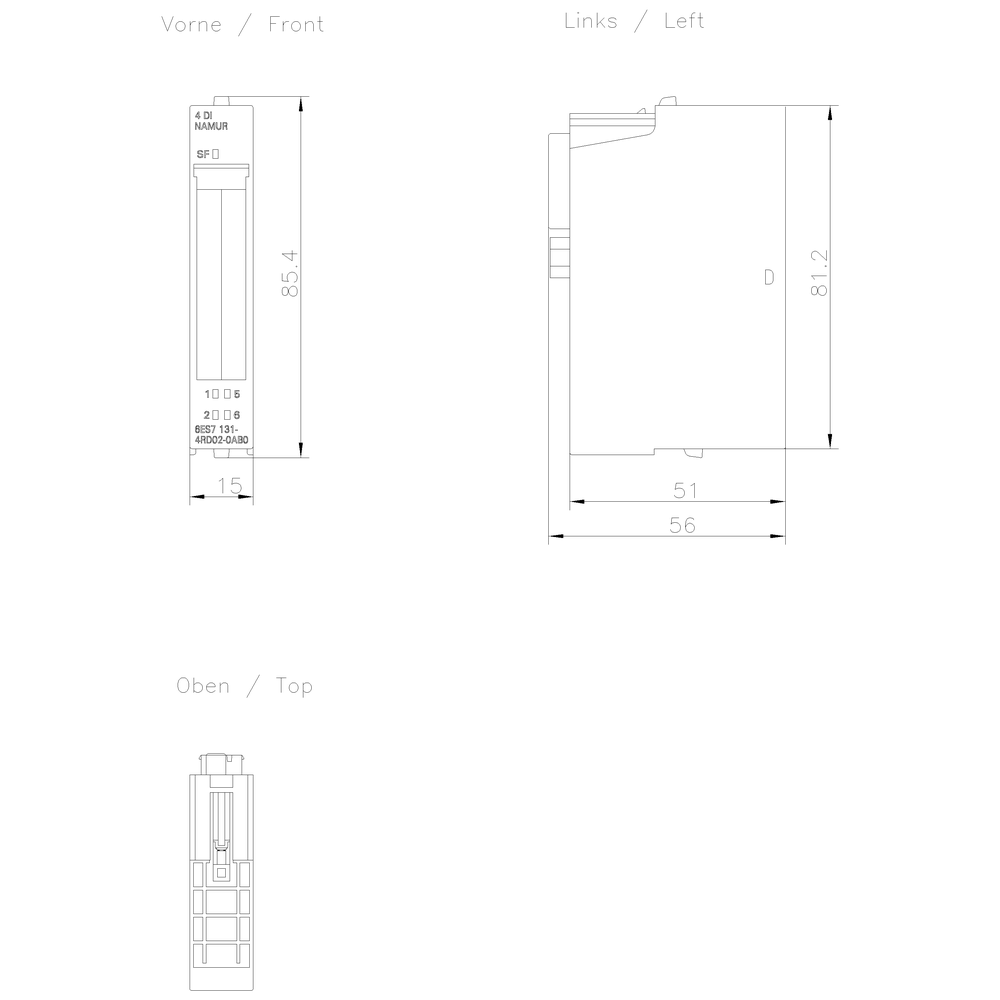

Depth52 mm
Supporting protocol for DeviceNetfalse
Width15 mm
Number of HW-interfaces USB0
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
Number of digital outputs0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Number of interfaces PROFINET0
With optical interfacefalse
Time delay at signal change0.0046 ms
Supply voltage DC28.8 V
Number of HW-interfaces industrial Ethernet0
Appendant operation agent (Ex ia)false
Supply voltage DC20.4 V
Type of voltage (input voltage)DC
Height81 mm
Supporting protocol for TCP/IPfalse
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Wall mounting/direct mountingfalse
Degree of protection (IP)IP20
Supporting protocol for Data-Highwayfalse
Fieldbus connection over separate bus coupler possibletrue
Radio standard UMTSfalse
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces other0
Number of digital inputs4
System accessorytrue
Supporting protocol for ASIfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces parallel0
Radio standard GSMfalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Digital inputs configurabletrue
Supporting protocol for other bus systemsfalse
Type of digital outputNone
Front built-in possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for Foundation Fieldbusfalse
Appendant operation agent (Ex ib)false
Supporting protocol for Modbusfalse
