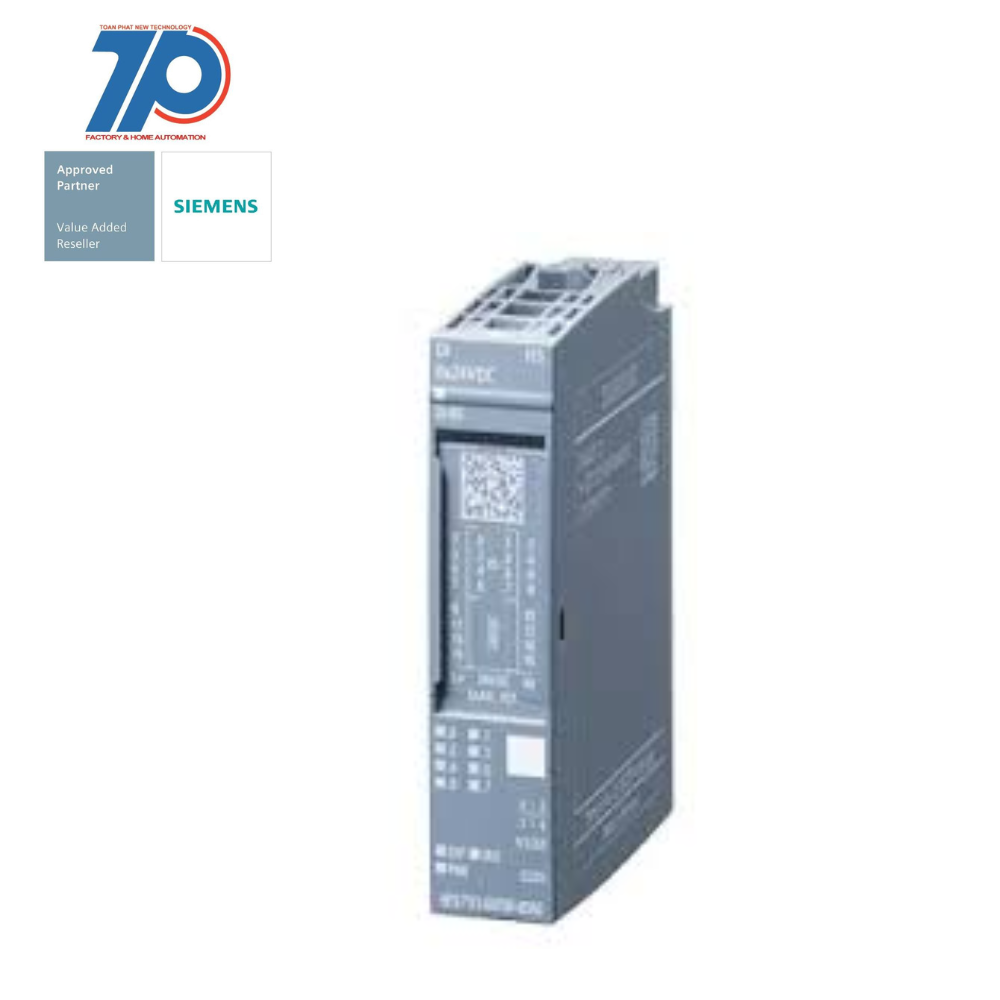

Material ID: 6ES7131-6BF00-2CA0
- SIMATIC ET 200SP digital input module: DI 8x 24VDC High Feature
- Input type 3 (IEC 61131), Sink input (PNP, active high)
- Packaging unit: 10 pieces, suitable for BU type A0, color code CC01
- Input delay: 0.05..20ms channel diagnosis for short circuit of sensor supply, wire break, power supply, channel failure LED
- Multifunctional and distributed I/O system
- Commissioned easily due to space-saving design
- Approved for degree of protection IP20
- Installation in compact control box
- Multi hot swapping feature for quick and simple module replacement
- Wide range of communication methods available
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative automation products
- Consistent data availability, flexible use cases, and versatile
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for AS-Interface Safety at Work | false |
| Depth | 58 mm |
| Type of digital output | None |
| Supporting protocol for Modbus | false |
| IO link master | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ib) | false |
| Radio standard Bluetooth | false |
| Supporting protocol for Data-Highway | false |
| Permitted voltage at input | -30 V |
| Supporting protocol for Foundation Fieldbus | false |
| Time delay at signal change | 20 ms |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for PROFIBUS | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for PROFIsafe | false |
| Radio standard UMTS | false |
| Supporting protocol for PROFINET CBA | false |
| Rail mounting possible | true |
| Permitted voltage at input | 30 V |
| System accessory | true |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for other bus systems | false |
| With optical interface | false |
| Supporting protocol for CAN | false |
| Height | 73 mm |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for SUCONET | false |
| Number of digital inputs | 8 |
| Supporting protocol for LON | false |
| Rack-assembly possible | false |
| Time delay at signal change | 0.05 ms |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for INTERBUS | false |
| Digital inputs configurable | true |
| Supporting protocol for KNX | false |
| Supporting protocol for SERCOS | false |
| Radio standard WLAN 802.11 | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for TCP/IP | false |
| Supply voltage DC | 28.8 V |
| Suitable for safety functions | false |
| Type of voltage (input voltage) | DC |
| Voltage type (supply voltage) | DC |
| Front built-in possible | false |
| Width | 15 mm |
| Supporting protocol for ASI | false |
| Wall mounting/direct mounting | false |
| Input current at signal 1 | 2.5 mA |
| Radio standard GPRS | false |
| Supporting protocol for SafetyBUS p | false |
