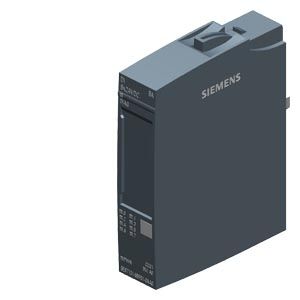

Material ID: 6ES7131-6BF01-0AA0
- SIMATIC ET 200SP
- Digital input module
- DI 8x 24V DC Basic
- Type 2 (IEC 61131)
- Sink input (PNP, P-reading)
- Packing unit: 1 piece
- Fits to BU-type A0
- Colour Code CC01
- Input delay time: 0.05-20ms
- Module diagnostics for supply voltage
- Siemens offers a multifunctional and distributed I/O system with SIMATIC ET 200SP
- Commissioned easily due to its space-saving design
- Degree of protection: IP20
- Installation in a compact control box
- Multi hot-swapping feature for quickly replacing modules
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Simplified installation and service with standardized identification system
- Future-proof investment with integration of
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Height | 73 mm |
| Supporting protocol for CAN | false |
| Supporting protocol for DeviceNet Safety | false |
| Suitable for safety functions | false |
| Supporting protocol for EtherNet/IP | false |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFIsafe | false |
| Wall mounting/direct mounting | false |
| System accessory | true |
| Supporting protocol for LON | false |
| Time delay at signal change | 20 ms |
| Type of digital output | None |
| Width | 15 mm |
| Radio standard GPRS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for TCP/IP | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for SafetyBUS p | false |
| Appendant operation agent (Ex ia) | false |
| Rail mounting possible | true |
| Depth | 58 mm |
| Fieldbus connection over separate bus coupler possible | true |
| With optical interface | false |
| Input current at signal 1 | 6.8 mA |
| Supporting protocol for SUCONET | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for SERCOS | false |
| Front built-in possible | false |
| Rack-assembly possible | false |
| Supporting protocol for KNX | false |
| Radio standard GSM | false |
| Digital inputs configurable | true |
| Number of digital inputs | 8 |
| Permitted voltage at input | -30 V |
| Voltage type (supply voltage) | DC |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for other bus systems | false |
| IO link master | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for Foundation Fieldbus | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet | false |
| Time delay at signal change | 0.05 ms |
| Type of voltage (input voltage) | DC |
| Radio standard UMTS | false |
| Supply voltage DC | 19.2 V |
| Appendant operation agent (Ex ib) | false |
| Permitted voltage at input | 30 V |
| Supporting protocol for PROFINET IO | false |
