Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

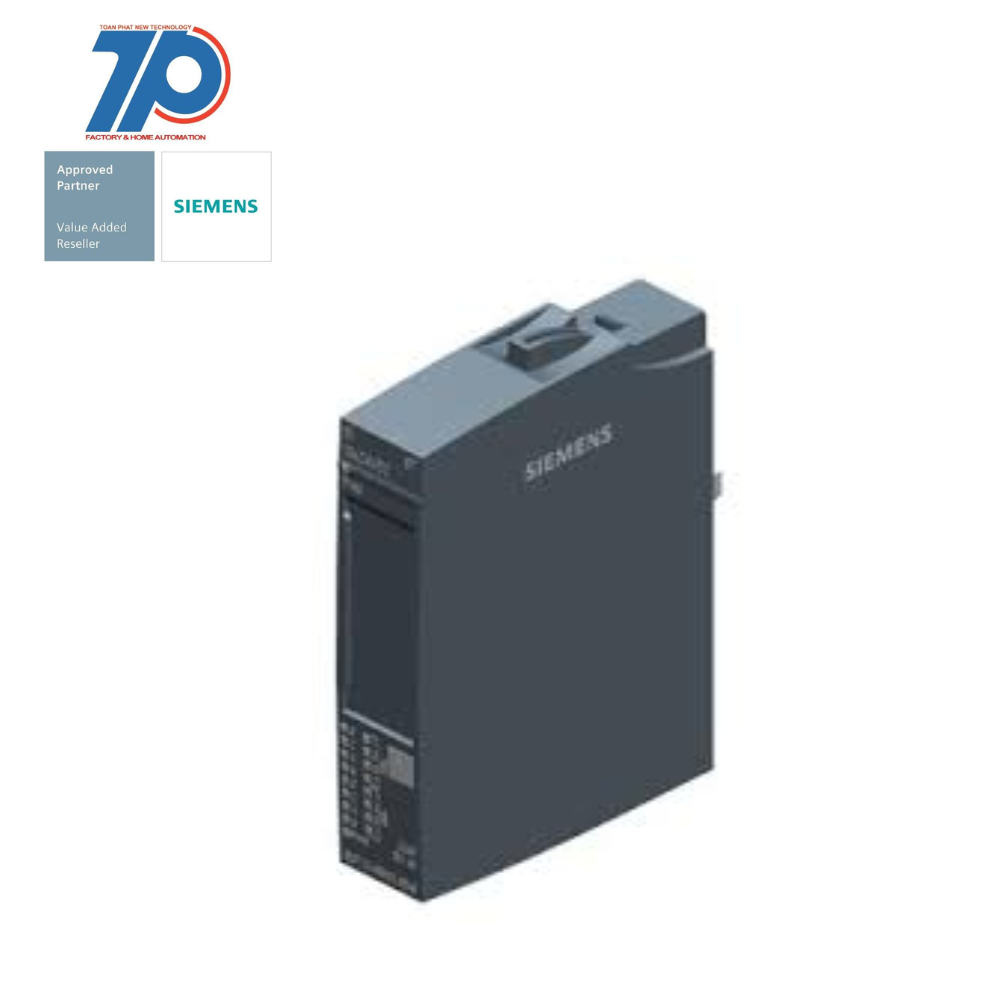

Material ID: 6ES7131-6BH01-2BA0
- SIMATIC ET 200SP
- Digital input module
- DI 16x 24V DC Standard
- Type 3 (IEC 61131)
- Sink input (PNP, P-reading)
- Packing unit: 10 Pieces
- Fits to BU-type A0
- Colour Code CC00
- Input delay time 0,05..20ms
- Diagnostics wire break
- Diagnostics supply voltage
- Siemens offers a multifunctional and distributed I/O system with SIMATIC ET 200SP
- Space-saving design
- Degree of protection IP20
- Approved for installation in compact control box
- Multi hot swapping feature allows for quick and simple module replacement
- Wide range of communication methods available
- Integrated MultiFieldbus interface module
- Supports multiple Ethernet protocols
- Standardized identification system simplifies installation and service
- Future-proof investment with integration
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Time delay at signal change | 20 ms |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET IO | false |
| Suitable for safety functions | false |
| Permitted voltage at input | -30 V |
| Type of voltage (input voltage) | DC |
| IO link master | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for EtherNet/IP | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFIsafe | false |
| Time delay at signal change | 0.05 ms |
| Supporting protocol for TCP/IP | false |
| Width | 15 mm |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Type of digital output | None |
| Supporting protocol for other bus systems | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet | false |
| Radio standard Bluetooth | false |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard GPRS | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Fieldbus connection over separate bus coupler possible | true |
| Input current at signal 1 | 2.5 mA |
| Rack-assembly possible | false |
| Radio standard UMTS | false |
| Permitted voltage at input | 30 V |
| Supporting protocol for PROFIBUS | false |
| Digital inputs configurable | true |
| Appendant operation agent (Ex ia) | false |
| Depth | 58 mm |
| Front built-in possible | false |
| Height | 73 mm |
| Appendant operation agent (Ex ib) | false |
| System accessory | true |
| Supply voltage DC | 28.8 V |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SERCOS | false |
| With optical interface | false |
| Rail mounting possible | true |
| Number of digital inputs | 16 |
| Supporting protocol for PROFINET CBA | false |
| Radio standard WLAN 802.11 | false |
| Voltage type (supply voltage) | DC |
