Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

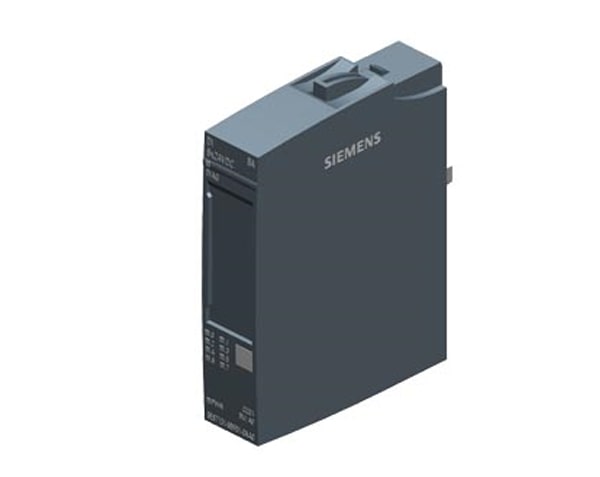

Material ID: 6ES7131-6FD01-0BB1
- SIMATIC ET 200SP, Digital input module, DI 4x 120..230V AC Standard, type 3 (IEC 61131), Packing unit: 1 piece, fits to BU-type B1, Colour Code CC41, module diagnostics
- Space-saving design
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Standardized identification system based on equipment labeling plates and color-coded connector assignments
- Future-proof investment
- Consistent data availability
- Flexible use cases
- Versatile integration options
- Scalable, cost-optimized configuration
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters for motors up to 5.5 kW
- Energy Meters for measuring and analyzing energy consumption
- IO-Link master (V1.1.)
- Accessories for maximum manageability in the control cabinet
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted voltage at input | 0 V |
| Appendant operation agent (Ex ib) | false |
| IO link master | false |
| Width | 20 mm |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherNet/IP | false |
| Input current at signal 1 | 10.8 mA |
| Supply voltage AC 60 Hz | 264 V |
| Supporting protocol for SUCONET | false |
| Radio standard Bluetooth | false |
| Appendant operation agent (Ex ia) | false |
| Height | 73 mm |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet | false |
| Rail mounting possible | true |
| Time delay at signal change | 1.5 ms |
| Supply voltage AC 50 Hz | 264 V |
| Supporting protocol for PROFINET CBA | false |
| Depth | 58 mm |
| Time delay at signal change | 8 ms |
| Supporting protocol for LON | false |
| Supporting protocol for SERCOS | false |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GPRS | false |
| With optical interface | false |
| Permitted voltage at input | 264 V |
| Type of digital output | None |
| Radio standard UMTS | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet Safety | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for KNX | false |
| Supporting protocol for INTERBUS | false |
| Fieldbus connection over separate bus coupler possible | true |
| System accessory | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Number of digital inputs | 4 |
| Supply voltage AC 50 Hz | 187 V |
| Supporting protocol for Data-Highway | false |
| Digital inputs configurable | true |
| Radio standard GSM | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Voltage type (supply voltage) | AC |
| Degree of protection (IP) | IP20 |
| Front built-in possible | false |
| Supply voltage AC 60 Hz | 187 V |
| Supporting protocol for PROFINET IO | false |
