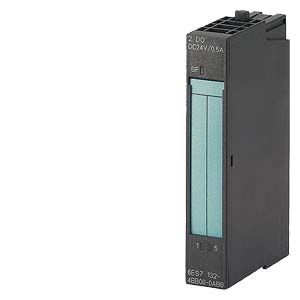

Material ID: 6ES7132-4BB01-0AA0
Spare part
SIMATIC DP, 5 electronic modules for ET 200S, 2 DO Standard 24 V DC/0.5 A, 15 mm width, 5 units per packing unit
Technical Features
Commercial Benefits
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200S IM with CPU functionality
- Modules can be connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules available with a wide variety of characteristics
- Modules with standard functions (ST) available
- Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
- Swappable modules and terminal boxes during operation
- Improved scalability in regard to functionality and price
- Increased availability and productivity of the machine
- Capability of "hot swapping" for easy application
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supply voltage DC | 28.8 V |
| Radio standard UMTS | false |
| Number of HW-interfaces wireless | 0 |
| Permitted voltage at output | 17.4 V |
| System accessory | true |
| Number of digital inputs | 0 |
| Supporting protocol for PROFINET CBA | false |

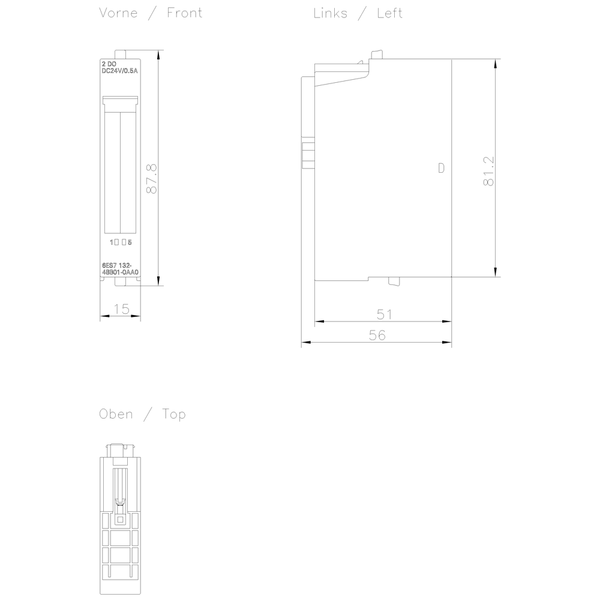

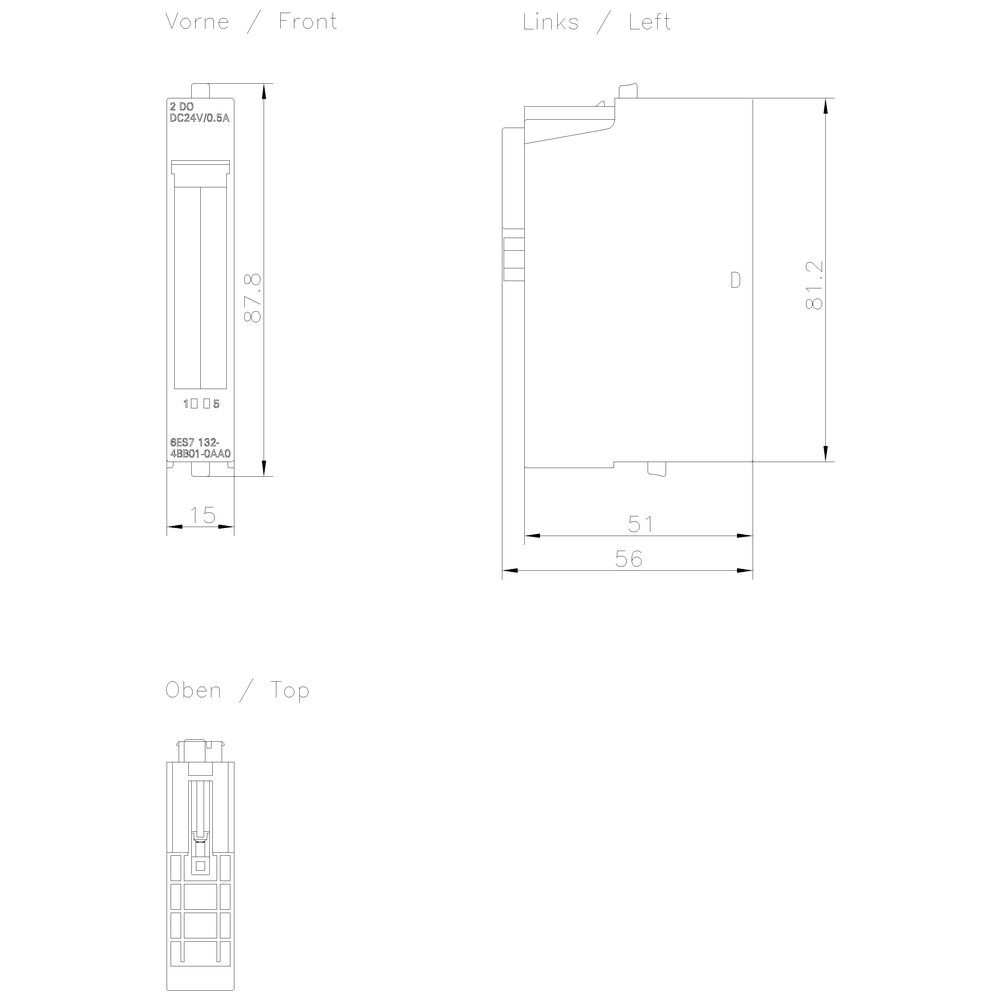

| Height | 81 mm |
| Supply voltage DC | 20.4 V |
| Supporting protocol for ASI | false |
| Supporting protocol for other bus systems | false |
| Radio standard Bluetooth | false |
| Time delay at signal change | 1.3 ms |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for DeviceNet Safety | false |
| With optical interface | false |
| Number of HW-interfaces RS-422 | 0 |
| Time delay at signal change | 0.2 ms |
| Number of HW-interfaces industrial Ethernet | 0 |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for CAN | false |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| Number of interfaces PROFINET | 0 |
| Fieldbus connection over separate bus coupler possible | true |
| Suitable for safety functions | false |
| Number of HW-interfaces RS-485 | 0 |
| Degree of protection (IP) | IP20 |
| Front built-in possible | false |
| Digital outputs configurable | true |
| Supporting protocol for Modbus | false |
| Radio standard WLAN 802.11 | false |
| Radio standard GSM | false |
| Output current | 0.5 A |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Width | 15 mm |
| Wall mounting/direct mounting | false |
| Type of output voltage | DC |
| Number of HW-interfaces serial TTY | 0 |
| Number of digital outputs | 2 |
| Supporting protocol for KNX | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for INTERBUS | false |
| Number of HW-interfaces other | 0 |
| Rack-assembly possible | false |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for LON | false |
| Rail mounting possible | true |
| Number of HW-interfaces USB | 0 |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces RS-232 | 0 |
| Short-circuit protection, outputs available | true |
| Permitted voltage at output | 25.8 V |
| Supporting protocol for SERCOS | false |
| IO link master | false |
| Depth | 52 mm |
| Supporting protocol for PROFINET IO | false |
