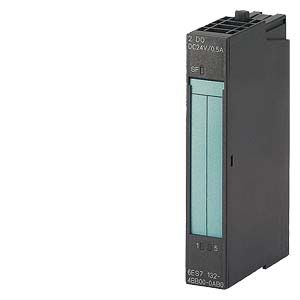

Material ID: 6ES7132-4BB01-0AB0Spare part - SIMATIC DP

Spare part - SIMATIC DP

Technical Features

Commercial Benefits

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    • 5 electronic modules for ET 200S
    • 2 DO High Feature 24 V DC/0.5 A
    • 15 mm width
    • Diagnostics short circuit and wire break
    • Substitute value output with LED SF (group fault)
    • 5 units per packing unit
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Supporting protocol for AS-Interface Safety at Workfalse
System accessorytrue
Suitable for safety functionsfalse
Type of output voltageDC

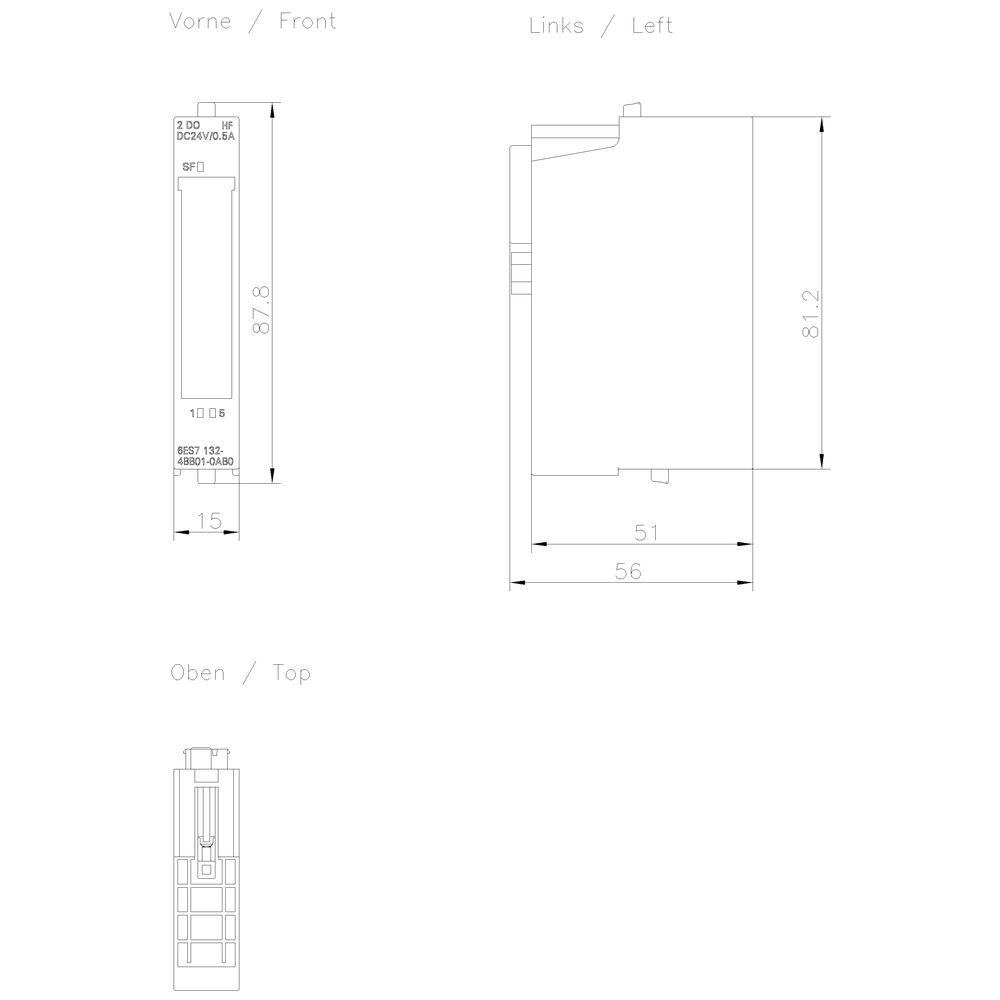

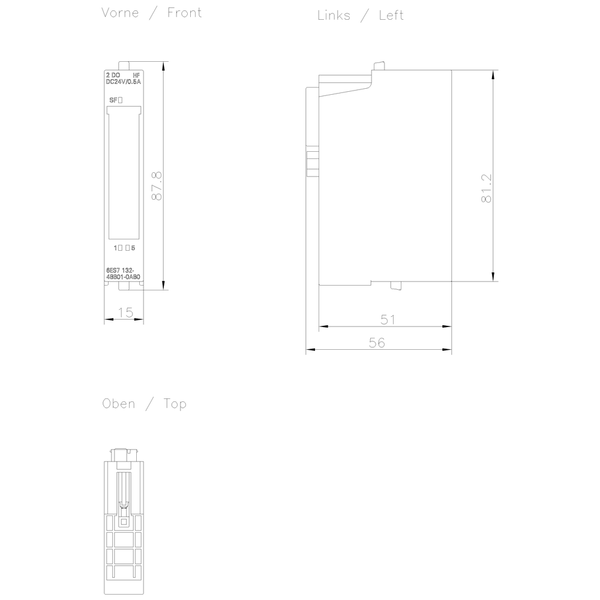

Width15 mm
Supporting protocol for PROFINET CBAfalse
Depth52 mm
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard UMTSfalse
Number of HW-interfaces serial TTY0
IO link masterfalse
Supporting protocol for PROFIsafefalse
Degree of protection (IP)IP20
Supporting protocol for LONfalse
Time delay at signal change0.4 ms
Short-circuit protection, outputs availabletrue
Wall mounting/direct mountingfalse
Output current0.5 A
Number of HW-interfaces RS-2320
Supply voltage DC20.4 V
Supporting protocol for KNXfalse
Number of HW-interfaces parallel0
Number of HW-interfaces other0
Time delay at signal change0.1 ms
Number of interfaces PROFINET0
Appendant operation agent (Ex ib)false
Supporting protocol for INTERBUSfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for DeviceNet Safetyfalse
Number of digital outputs2
Supporting protocol for TCP/IPfalse
Digital outputs configurabletrue
Supporting protocol for other bus systemsfalse
Front built-in possiblefalse
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces USB0
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Number of digital inputs0
Supporting protocol for Foundation Fieldbusfalse
With optical interfacefalse
Supporting protocol for SUCONETfalse
Height81 mm
Radio standard GPRSfalse
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
Permitted voltage at output25.8 V
Appendant operation agent (Ex ia)false
Rail mounting possibletrue
Radio standard GSMfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Number of HW-interfaces RS-4850
Radio standard Bluetoothfalse
Permitted voltage at output17.4 V
Number of HW-interfaces wireless0
Supporting protocol for Modbusfalse
