Material ID: 6ES7132-4BD00-0AB0

Spare part

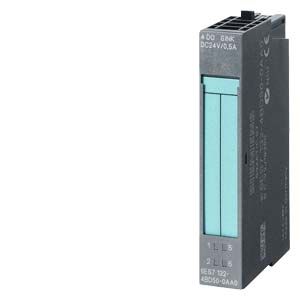

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO High Feature 24 V DC/0.5 A, 15 mm width, Diagnostics short circuit, SF LED

5 units per packing unit

SIMATIC ET 200S

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

Advantages

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    Additional Information

    Support

    Technical Data

    Manuals / Links

    Thông số kỹ thuật
    FEATUREVALUE
    Appendant operation agent (Ex ia)false
    Type of output voltageDC
    Supporting protocol for CANfalse

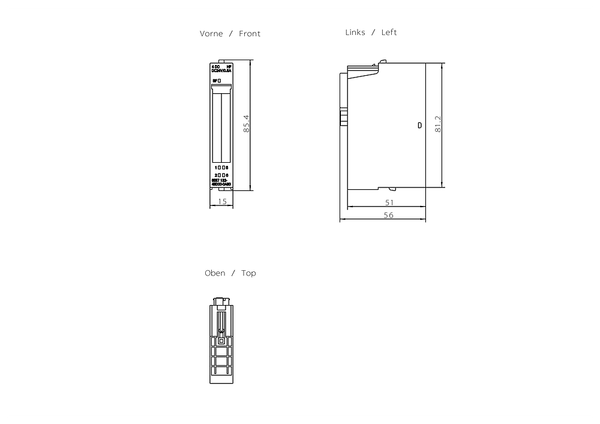

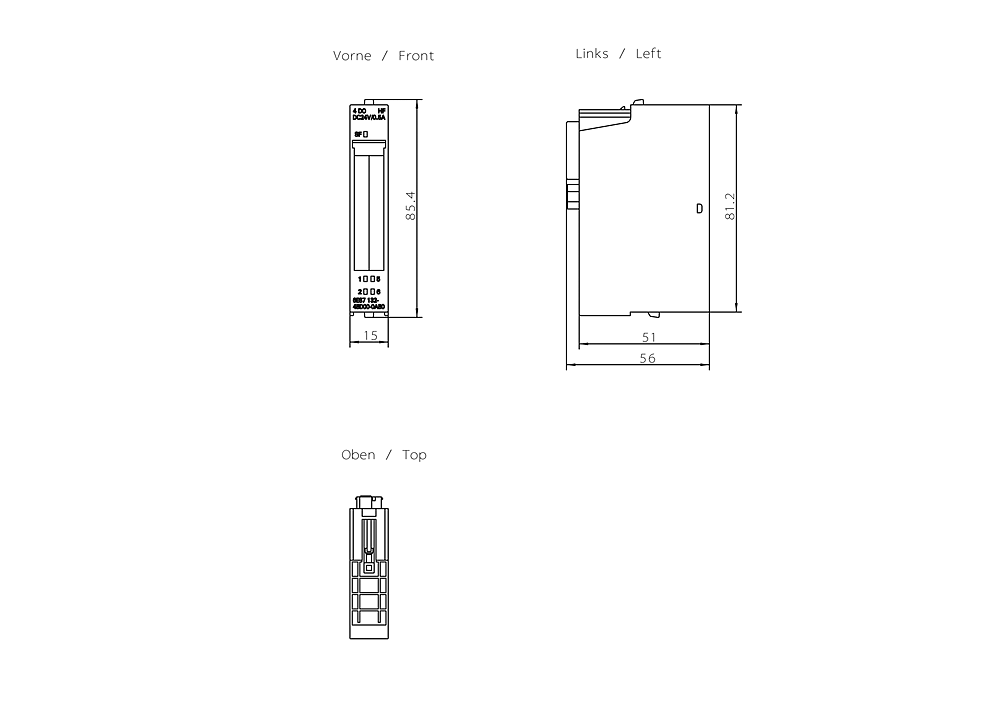

    Height81 mm
    Number of HW-interfaces wireless0
    Supporting protocol for LONfalse
    Supporting protocol for PROFIsafefalse
    Supporting protocol for Foundation Fieldbusfalse
    IO link masterfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Radio standard GPRSfalse
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for SUCONETfalse
    Permitted voltage at output25.8 V
    Number of HW-interfaces RS-4850
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for KNXfalse
    Number of HW-interfaces parallel0
    Number of interfaces PROFINET0
    Supporting protocol for Modbusfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Suitable for safety functionsfalse
    Supporting protocol for INTERBUSfalse
    Supply voltage DC20.4 V
    Type of digital outputTransistor
    Front built-in possiblefalse
    Supply voltage DC28.8 V
    Digital outputs configurabletrue
    Supporting protocol for PROFINET CBAfalse
    Permitted voltage at output17.4 V
    Time delay at signal change0.3 ms
    System accessorytrue
    Rail mounting possibletrue
    Supporting protocol for EtherNet/IPfalse
    Supporting protocol for other bus systemsfalse
    Number of HW-interfaces RS-4220
    Fieldbus connection over separate bus coupler possibletrue
    Number of HW-interfaces serial TTY0
    Degree of protection (IP)IP20
    Radio standard UMTSfalse
    Number of digital inputs0
    Supporting protocol for ASIfalse
    Rack-assembly possiblefalse
    With optical interfacefalse
    Number of HW-interfaces RS-2320
    Output current0.5 A
    Supporting protocol for TCP/IPfalse
    Radio standard WLAN 802.11false
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for SafetyBUS pfalse
    Width15 mm
    Radio standard Bluetoothfalse
    Number of digital outputs4
    Wall mounting/direct mountingfalse
    Short-circuit protection, outputs availabletrue
    Supporting protocol for Data-Highwayfalse
    Radio standard GSMfalse
    Number of HW-interfaces USB0
    Depth52 mm
    Appendant operation agent (Ex ib)false
    Time delay at signal change0.1 ms
    Number of HW-interfaces other0
