Material ID: 6ES7132-4BD02-0AA0

Spare part

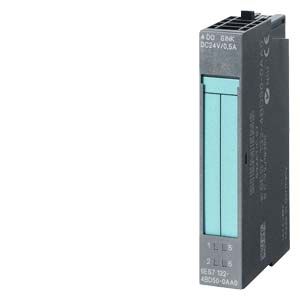

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO standard 24 V DC/0.5 A, 15 mm width, 5 units per packing unit

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics
    • Modules with standard functions (ST)
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Capability of swapping modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine
    • "Hot swapping" feature
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Degree of protection (IP)IP20
Time delay at signal change0.05 ms
Number of interfaces PROFINET0
Supporting protocol for PROFIsafefalse
Number of digital outputs4
Supply voltage DC20.4 V
Supporting protocol for DeviceNet Safetyfalse
Radio standard Bluetoothfalse
Front built-in possiblefalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Suitable for safety functionsfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for LONfalse
Short-circuit protection, outputs availabletrue
Rack-assembly possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces serial TTY0

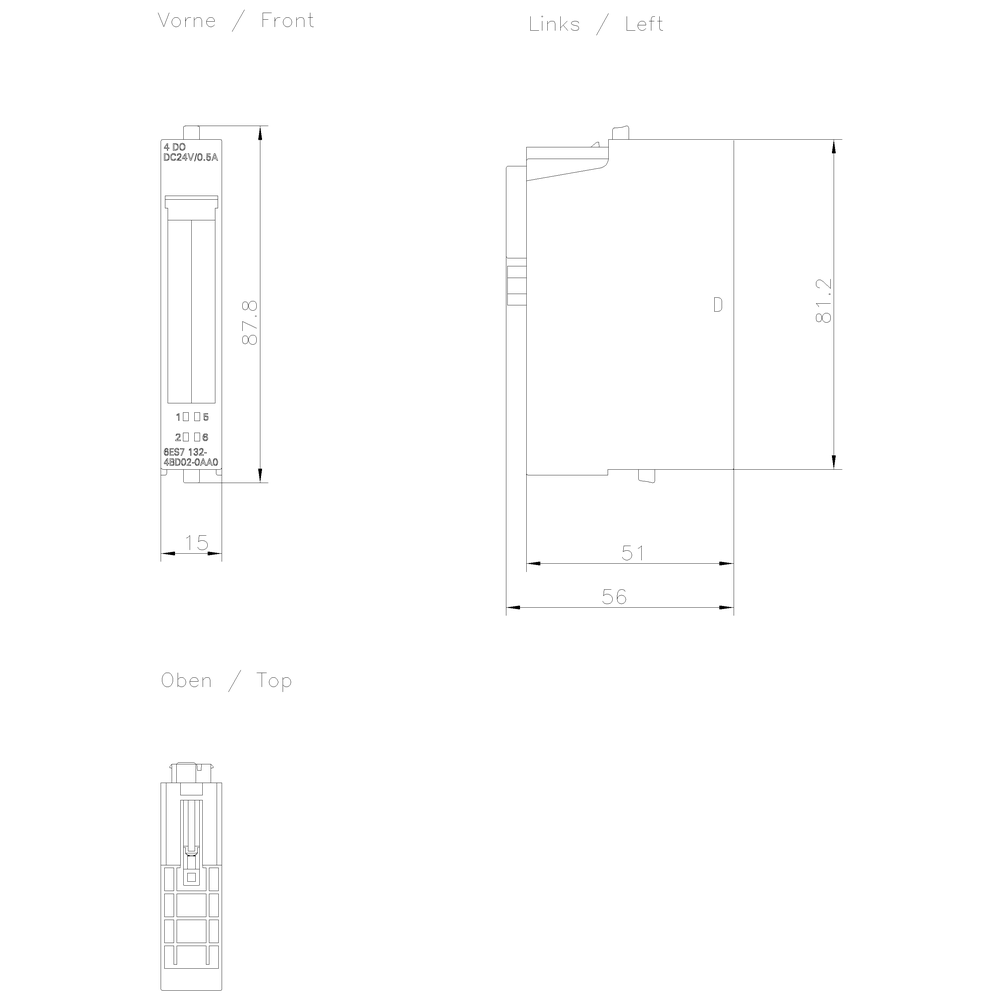

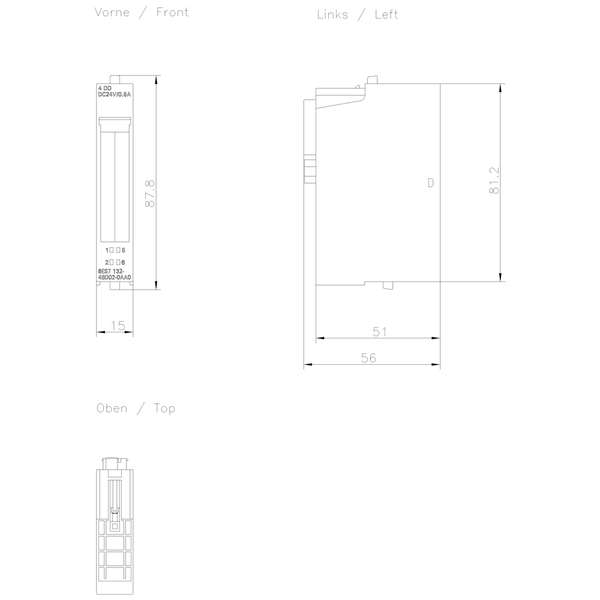

Depth52 mm
Radio standard GPRSfalse
Width15 mm
Permitted voltage at output25.8 V
Radio standard GSMfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4850
Supporting protocol for other bus systemsfalse
Supporting protocol for ASIfalse
System accessorytrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Appendant operation agent (Ex ib)false
Supporting protocol for TCP/IPfalse
Supply voltage DC28.8 V
Supporting protocol for PROFINET CBAfalse
Wall mounting/direct mountingfalse
Permitted voltage at output17.4 V
Height81 mm
Supporting protocol for INTERBUSfalse
Supporting protocol for EtherNet/IPfalse
Digital outputs configurabletrue
Time delay at signal change0.12 ms
Type of output voltageDC
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Supporting protocol for KNXfalse
Appendant operation agent (Ex ia)false
Number of digital inputs0
Supporting protocol for PROFINET IOfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
With optical interfacefalse
Output current0.5 A
Radio standard WLAN 802.11false
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Supporting protocol for Modbusfalse
IO link masterfalse
Rail mounting possibletrue
