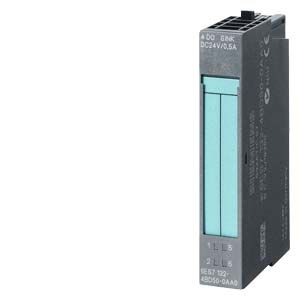

SIMATIC DP, 5 electronic modules for ET 200S, 4 DO High Feature 24 V DC/2 A, 15 mm width, Short-circuit diagnostics, SF LED
5 units per packing unit
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Appendant operation agent (Ex ib) | false |
Appendant operation agent (Ex ia) | false |
Supply voltage DC | 20.4 V |
Number of HW-interfaces RS-485 | 0 |
Supporting protocol for INTERBUS | false |
Radio standard Bluetooth | false |
System accessory | true |
Supporting protocol for PROFINET IO | false |
Number of HW-interfaces other | 0 |
Supporting protocol for other bus systems | false |
Digital outputs configurable | true |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for AS-Interface Safety at Work | false |
Number of HW-interfaces USB | 0 |
Suitable for safety functions | false |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for LON | false |
Radio standard GPRS | false |
With optical interface | false |
Supporting protocol for PROFIBUS | false |

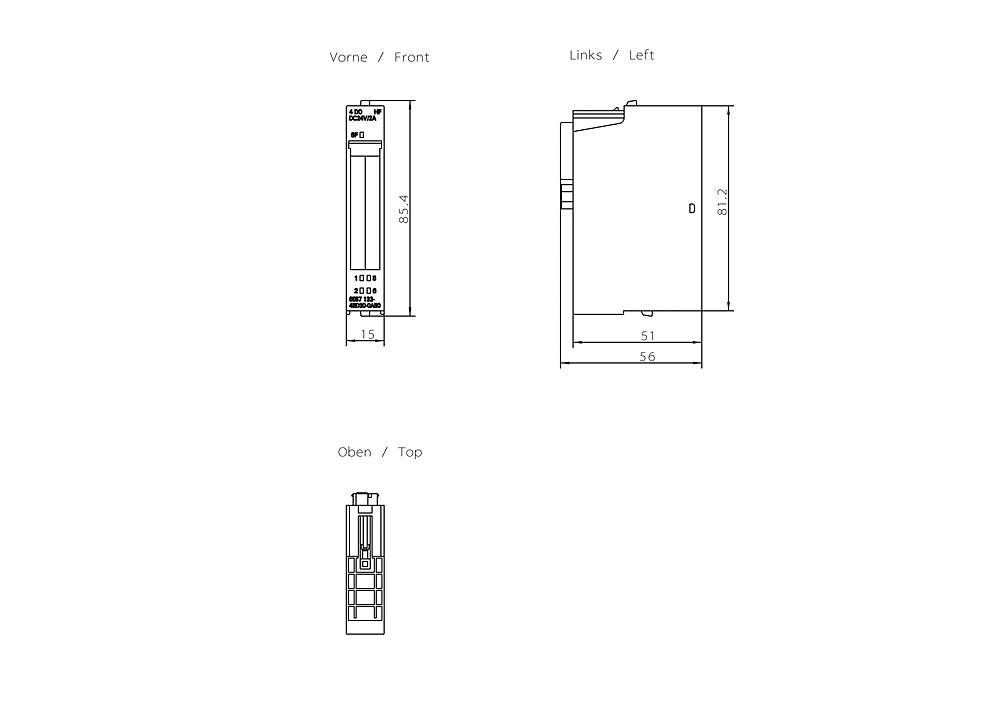

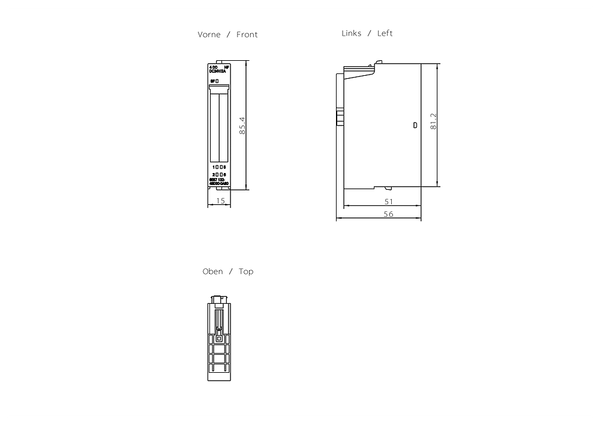

Width | 15 mm |
Rail mounting possible | true |
Depth | 52 mm |
Supporting protocol for PROFINET CBA | false |
Time delay at signal change | 0.4 ms |
Type of output voltage | DC |
Type of digital output | Transistor |
Supporting protocol for SUCONET | false |
Radio standard GSM | false |
Supporting protocol for PROFIsafe | false |
Short-circuit protection, outputs available | true |
Time delay at signal change | 0.25 ms |
Supporting protocol for TCP/IP | false |
Radio standard UMTS | false |
Permitted voltage at output | 17.4 V |
Supporting protocol for ASI | false |
Front built-in possible | false |
Number of HW-interfaces RS-422 | 0 |
Rack-assembly possible | false |
Supporting protocol for SERCOS | false |
Supply voltage DC | 28.8 V |
Supporting protocol for Foundation Fieldbus | false |
Supporting protocol for DeviceNet Safety | false |
Degree of protection (IP) | IP20 |
Supporting protocol for Data-Highway | false |
Number of HW-interfaces serial TTY | 0 |
Number of HW-interfaces industrial Ethernet | 0 |
Number of interfaces PROFINET | 0 |
Supporting protocol for Modbus | false |
Number of digital inputs | 0 |
Supporting protocol for DeviceNet | false |
Output current | 2 A |
Supporting protocol for KNX | false |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Number of digital outputs | 4 |
Radio standard WLAN 802.11 | false |
Height | 81 mm |
Wall mounting/direct mounting | false |
Number of HW-interfaces RS-232 | 0 |
Permitted voltage at output | 25.8 V |
Number of HW-interfaces wireless | 0 |
Fieldbus connection over separate bus coupler possible | true |
IO link master | false |
Number of HW-interfaces parallel | 0 |
Supporting protocol for CAN | false |
