Material ID: 6ES7132-4BF00-0AA0

Spare part

Electronics module for ET 200S, 8 DO 24 V DC/0.5 A, 15 mm width, 1 unit per packing unit

Technical Features

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

Commercial Benefits

The SIMATIC ET 200S system offers the following commercial benefits:

    • Modular scalability for easy expansion and customization
    • Improved functionality and price scalability with a wide variety of module characteristics
    • Compatibility with both ET 200S IM and central controllers via PROFINET or PROFIBUS
    • Enhanced productivity and availability through "hot swapping" capability
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for ASIfalse
Short-circuit protection, outputs availabletrue
Output current0.5 A
Supporting protocol for SafetyBUS pfalse
With optical interfacefalse
Number of HW-interfaces RS-4850
Permitted voltage at output17.4 V
Time delay at signal change0.3 ms
Number of HW-interfaces USB0
Radio standard Bluetoothfalse
Appendant operation agent (Ex ia)false
System accessorytrue
Supporting protocol for PROFINET IOfalse
IO link masterfalse
Time delay at signal change0.6 ms
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-2320
Rail mounting possibletrue
Supporting protocol for LONfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4220
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Number of HW-interfaces serial TTY0
Appendant operation agent (Ex ib)false
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for KNXfalse
Wall mounting/direct mountingfalse
Number of digital inputs0
Supporting protocol for DeviceNetfalse
Depth52 mm
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Permitted voltage at output25.8 V
Digital outputs configurabletrue
Front built-in possiblefalse
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs8
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Fieldbus connection over separate bus coupler possibletrue
Degree of protection (IP)IP20
Number of HW-interfaces other0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SERCOSfalse
Radio standard WLAN 802.11false
Number of interfaces PROFINET0

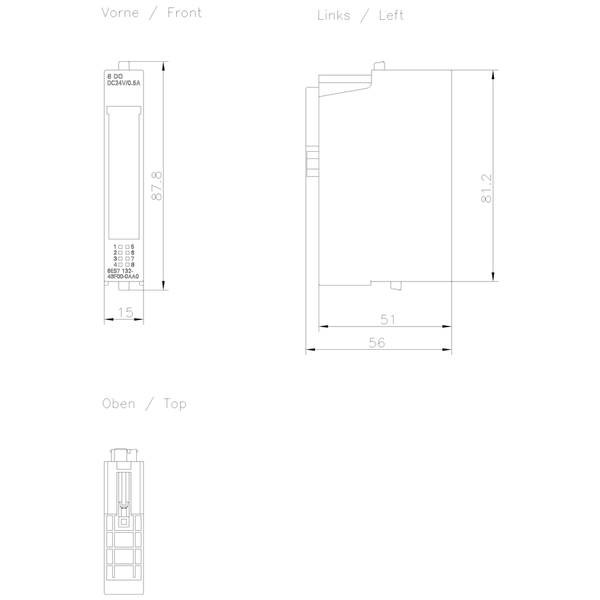

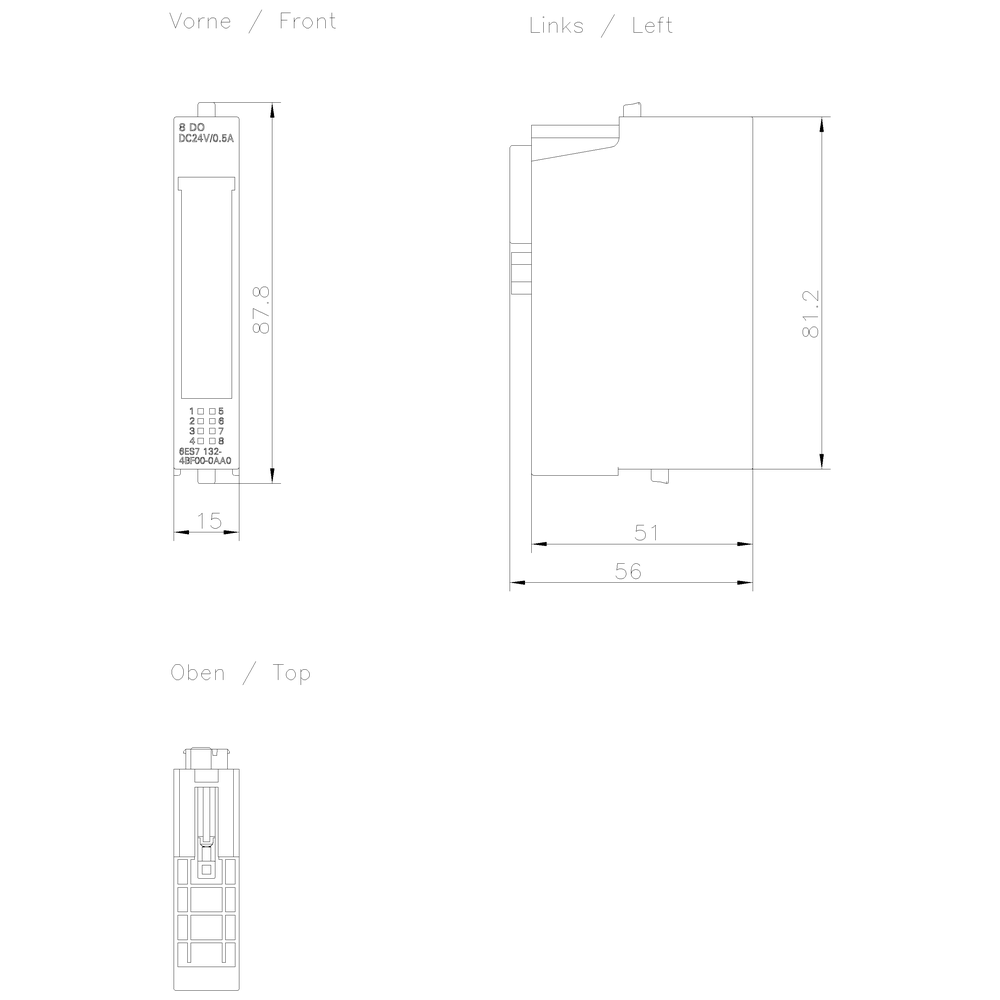

Width15 mm
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for CANfalse
Supporting protocol for TCP/IPfalse
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionsfalse
Supply voltage DC20.4 V
Supporting protocol for PROFIsafefalse
Type of output voltageDC
Supporting protocol for PROFINET CBAfalse
Height81 mm
Number of HW-interfaces parallel0
