Material ID: 6ES7132-4BF00-0AB0Product Description

Spare part

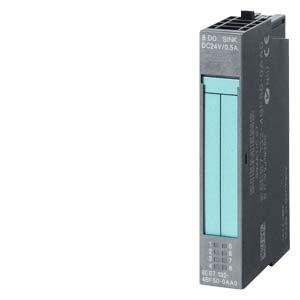

Electronics module for ET 200S, 8 DO High Feature 24 V DC/0.5 A, 15 mm width, Diagnostics short circuit, SF LED

1 unit per packing unit

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality
    • Modules can also be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules available
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine
    • "Hot swapping" capability
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Suitable for safety functionsfalse
Radio standard GPRSfalse
Type of output voltageDC

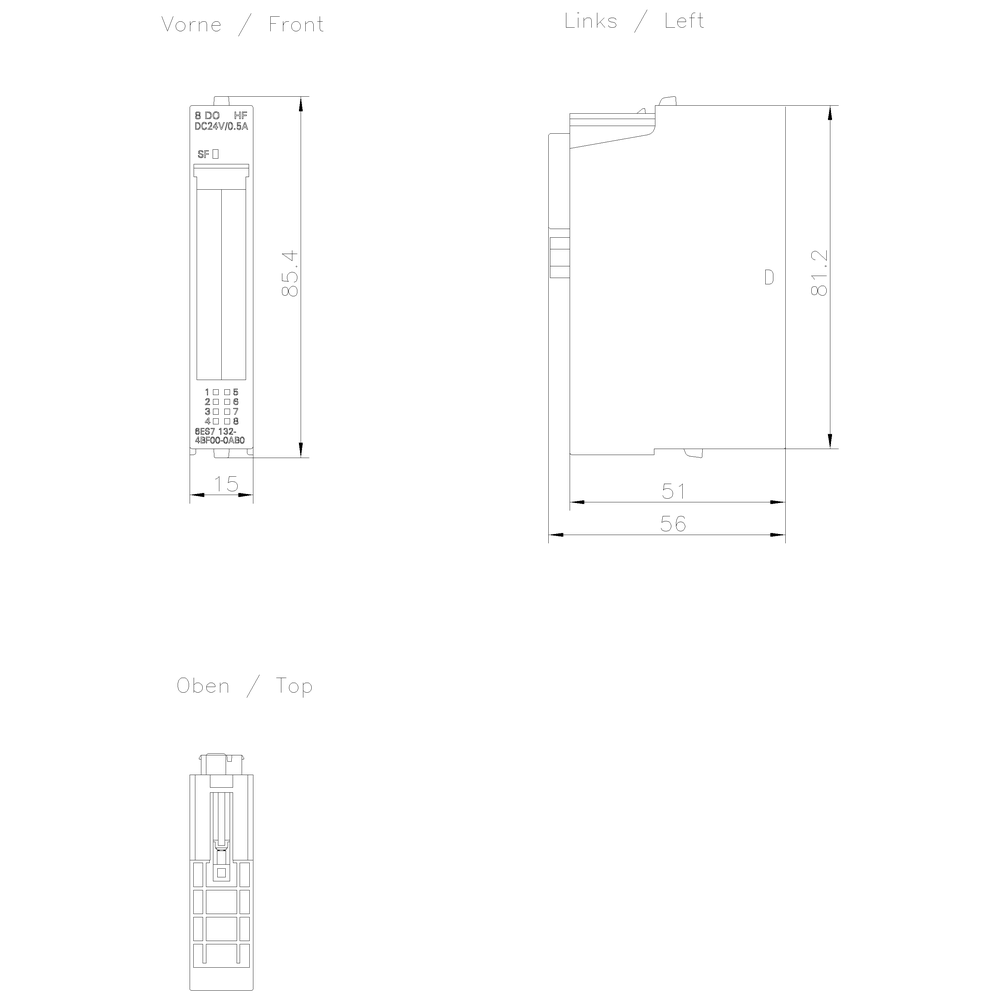

Depth52 mm
Number of digital outputs8
Supporting protocol for PROFIsafefalse
IO link masterfalse
Height81 mm
Supporting protocol for SUCONETfalse
Short-circuit protection, outputs availabletrue
Number of HW-interfaces parallel0
Supporting protocol for INTERBUSfalse
Number of HW-interfaces wireless0
Number of HW-interfaces RS-2320
Radio standard GSMfalse
Supporting protocol for SERCOSfalse
Supporting protocol for Modbusfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Appendant operation agent (Ex ia)false
Supporting protocol for LONfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Permitted voltage at output25.8 V
Supporting protocol for EtherNet/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for CANfalse
Time delay at signal change0.6 ms
Number of HW-interfaces RS-4850
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Radio standard UMTSfalse
Supporting protocol for TCP/IPfalse
Number of digital inputs0
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Rack-assembly possiblefalse
Number of HW-interfaces serial TTY0
Number of interfaces PROFINET0
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Supporting protocol for AS-Interface Safety at Workfalse
Width15 mm
Permitted voltage at output17.4 V
Time delay at signal change0.3 ms
Radio standard Bluetoothfalse
Supporting protocol for SafetyBUS pfalse
Wall mounting/direct mountingfalse
Rail mounting possibletrue
Front built-in possiblefalse
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Digital outputs configurabletrue
Degree of protection (IP)IP20
Supply voltage DC20.4 V
With optical interfacefalse
Appendant operation agent (Ex ib)false
Number of HW-interfaces other0
System accessorytrue
Supporting protocol for ASIfalse
Number of HW-interfaces USB0
Output current0.5 A
