Material ID: 6ES7132-4BF50-0AA0

Spare part

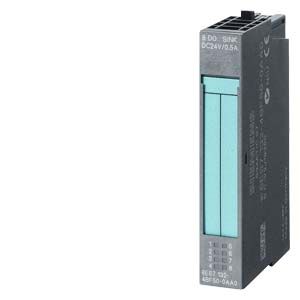

Electronics module for ET 200S, 8 DO Sink Output, 24 V DC/0.5 A, 15 mm width, 1 unit per packing unit

Technical Features

Commercial Benefits

    • Modularly scalable
    • Distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
    • Swappable modules and terminal boxes during operation
    • Improved scalability in regard to functionality and price
    • Increased availability and productivity of the machine
    • Easy application
    • Considerably increased machine availability and productivity due to "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFIsafefalse
Supporting protocol for TCP/IPfalse
Supporting protocol for AS-Interface Safety at Workfalse
Time delay at signal change0.6 ms
Radio standard GPRSfalse
Number of HW-interfaces industrial Ethernet0
Permitted voltage at output17.4 V
Time delay at signal change0.3 ms

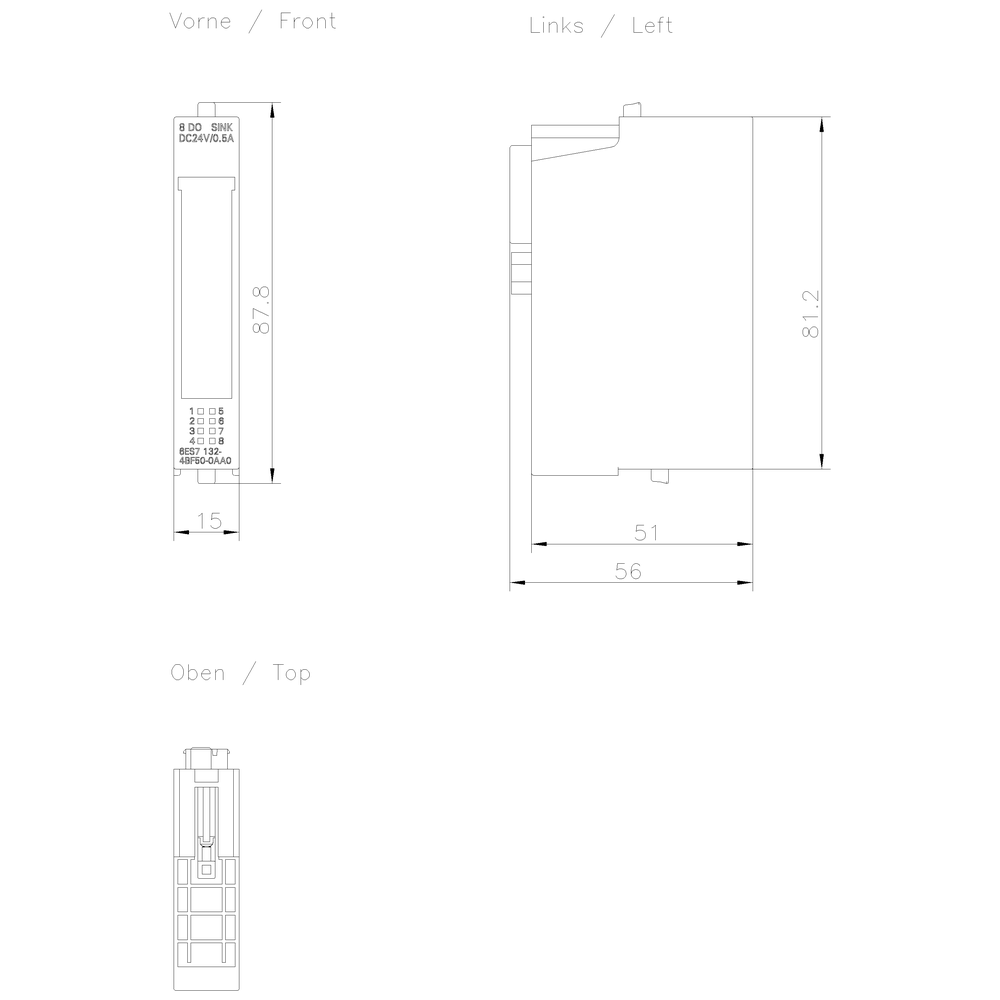

Width15 mm
Output current0.5 A
Type of digital outputTransistor
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces RS-4850
Number of HW-interfaces wireless0
Supporting protocol for CANfalse
Supporting protocol for Foundation Fieldbusfalse
Number of interfaces PROFINET0
Wall mounting/direct mountingfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
Appendant operation agent (Ex ia)false
Number of HW-interfaces RS-2320
Supporting protocol for SERCOSfalse
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
Number of digital inputs0
IO link masterfalse
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
System accessorytrue
Supporting protocol for INTERBUSfalse
Digital outputs configurabletrue
Supply voltage DC28.8 V
Supporting protocol for other bus systemsfalse
Radio standard WLAN 802.11false
Supporting protocol for SUCONETfalse
Height81 mm
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Radio standard Bluetoothfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard GSMfalse
Supporting protocol for Modbusfalse
Number of HW-interfaces USB0
Supporting protocol for ASIfalse
Radio standard UMTSfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces parallel0
Number of digital outputs8
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Number of HW-interfaces other0
Appendant operation agent (Ex ib)false
Depth52 mm
Rail mounting possibletrue
Supporting protocol for PROFIBUSfalse
Degree of protection (IP)IP20
Short-circuit protection, outputs availabletrue
Front built-in possiblefalse
With optical interfacefalse
Supply voltage DC20.4 V
Permitted voltage at output25.8 V
Supporting protocol for PROFINET CBAfalse
Type of output voltageDC
