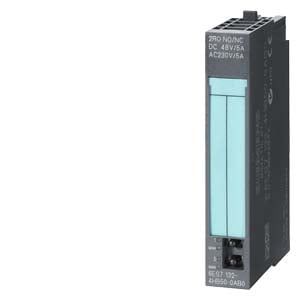

Material ID: 6ES7132-4HB13-0AB0

Spare part

SIMATIC DP, 5 electronic modules, ET 200S: 2 relay per module, isolated change-over contacts, 24 V-48 V DC/5 A, 24 V-230 V AC/5 A, 15 mm width, substitute value output, 5 units per packing unit

Technical Features

Commercial Benefits

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available. The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics, improving scalability in functionality and price
    • Modules available with standard functions (ST) or extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET IOfalse
Rack-assembly possiblefalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Short-circuit protection, outputs availablefalse
Radio standard GPRSfalse
Number of digital inputs0
Supporting protocol for KNXfalse
Type of digital outputRelay
Digital outputs configurabletrue
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Number of HW-interfaces RS-4850
Height81 mm
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingfalse
IO link masterfalse
Type of output voltageAC/DC
Supporting protocol for Modbusfalse
Radio standard WLAN 802.11false
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Rail mounting possibletrue
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Supporting protocol for LONfalse
Number of HW-interfaces industrial Ethernet0
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces other0
Supporting protocol for DeviceNet Safetyfalse
Permitted voltage at output20.4 V
Number of interfaces PROFINET0
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Width15 mm
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC20.4 V
Number of digital outputs2
Supporting protocol for SUCONETfalse
With optical interfacefalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Appendant operation agent (Ex ib)false
Output current5 A
Front built-in possiblefalse
Degree of protection (IP)IP20
Permitted voltage at output264 V
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Depth52 mm
Supporting protocol for ASIfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for PROFINET CBAfalse
