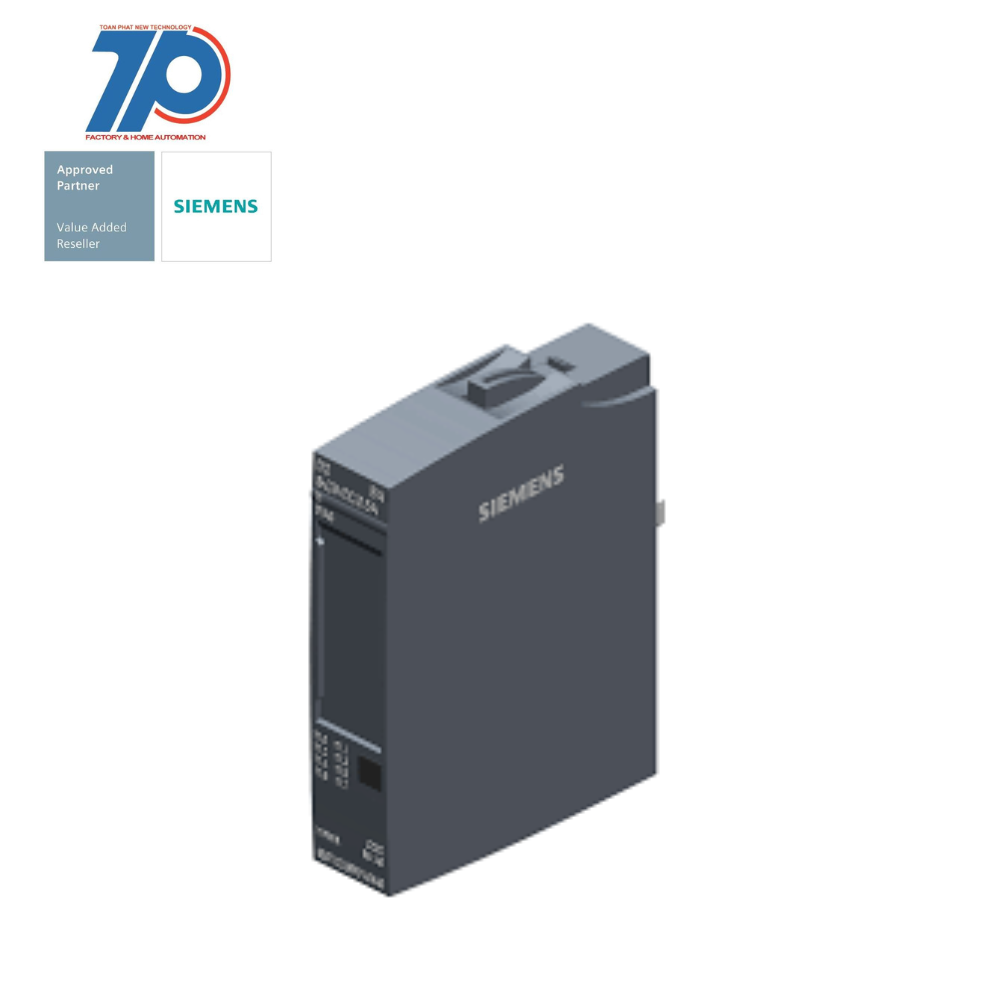

Material ID: 6ES7132-6BF01-2BA0
- SIMATIC ET 200SP
- Digital output module
- DQ 8x 24V DC/0.5A Standard
- Source output (PNP, P-switching)
- Packing unit: 10 pieces
- Fits to BU-type A0
- Colour Code CC02
- Substitute value output
- Module diagnostics for: short-circuit to L+ and ground, wire break, supply voltage
- Siemens offers a multifunctional and distributed I/O system
- Easy commissioning due to space-saving design
- Degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Consistent data
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for PROFINET IO | false |
| System accessory | true |
| Supporting protocol for PROFIsafe | false |
| Permitted voltage at output | 19.2 V |
| Appendant operation agent (Ex ia) | false |
| Front built-in possible | false |
| Rack-assembly possible | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for other bus systems | false |
| Digital outputs configurable | true |
| Supporting protocol for CAN | false |
| Supply voltage DC | 28.8 V |
| Type of output voltage | DC |
| Supporting protocol for SUCONET | false |
| Voltage type (supply voltage) | DC |
| Depth | 58 mm |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for KNX | false |
| Height | 73 mm |
| Radio standard Bluetooth | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for Foundation Fieldbus | false |
| Wall mounting/direct mounting | false |
| Suitable for safety functions | false |
| Supporting protocol for LON | false |
| Supporting protocol for Modbus | false |
| Fieldbus connection over separate bus coupler possible | true |
| With optical interface | false |
| Number of digital outputs | 8 |
| Short-circuit protection, outputs available | true |
| Supporting protocol for PROFINET CBA | false |
| Permitted voltage at output | 28.8 V |
| Supply voltage DC | 19.2 V |
| Supporting protocol for INTERBUS | false |
| Time delay at signal change | 0.05 ms |
| Supporting protocol for TCP/IP | false |
| Output current | 0.5 A |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard UMTS | false |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS-Safety | false |
| Time delay at signal change | 0.1 ms |
| Width | 15 mm |
| Radio standard GPRS | false |
| Supporting protocol for ASI | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Rail mounting possible | true |
| Supporting protocol for Data-Highway | false |
| IO link master | false |
