Material ID: 6ES7132-6BH00-2AA0

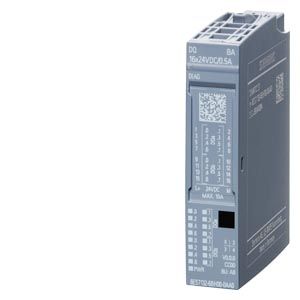

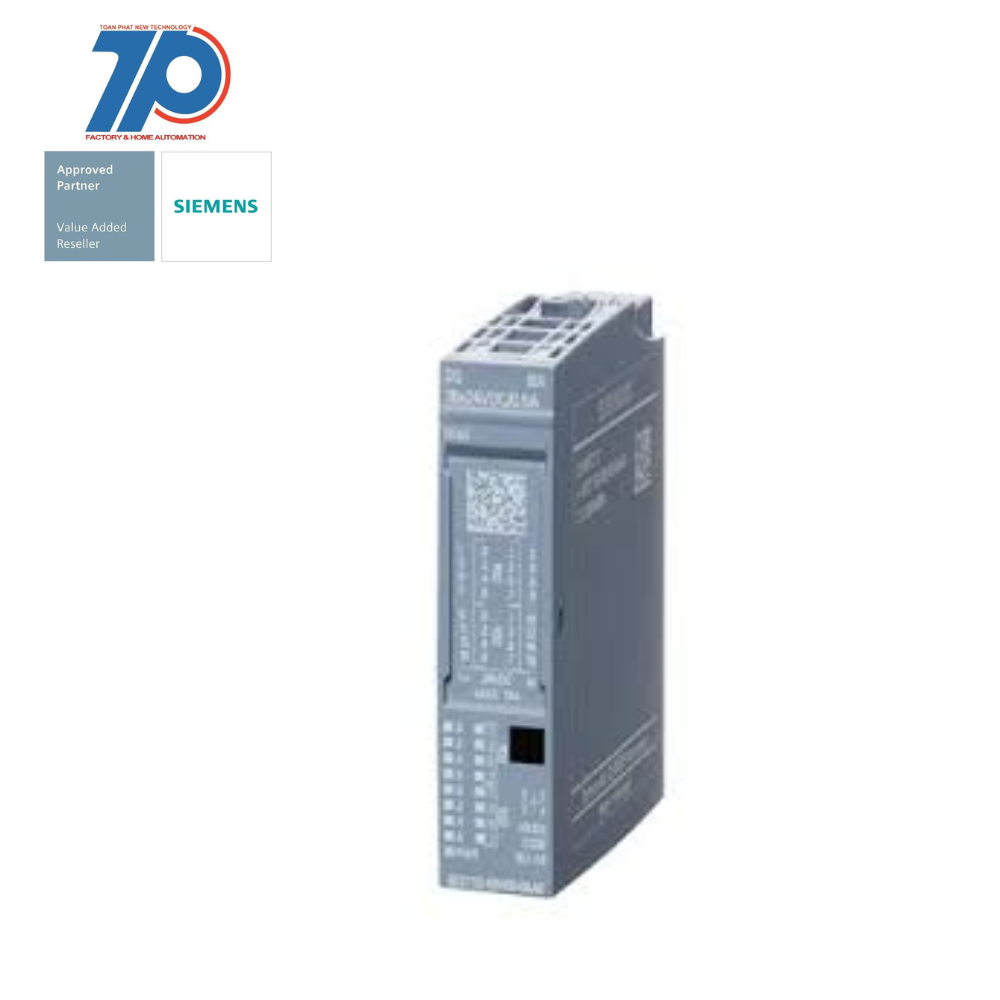

- SIMATIC ET 200SP, digital output module, DQ 16x 24VDC/0.5A Basic
- Pack quantity: 10 units
- Suitable for BU type A0, Color code CC00
- Module diagnostics included
- Multifunctional and distributed I/O system
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for easy module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol use
- Simplified installation and service with standardized identification system
- Future-proof investment with long-life automation products
- Scalable configuration with a range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters suitable for motors up to 5.5 kW
- Energy Meters, IO-Link master (V1.1.), and other communication modules available
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for ASI | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for CAN | false |
| Supporting protocol for SUCONET | false |
| Permitted voltage at output | 19.2 V |
| Supporting protocol for KNX | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for other bus systems | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for DeviceNet Safety | false |
| Type of output voltage | DC |
| Height | 73 mm |
| Front built-in possible | false |
| Permitted voltage at output | 28.8 V |
| Degree of protection (IP) | IP20 |
| Short-circuit protection, outputs available | true |
| Appendant operation agent (Ex ia) | false |
| With optical interface | false |
| Digital outputs configurable | true |
| Suitable for safety functions | false |
| Depth | 58 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ib) | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for Data-Highway | false |
| Number of digital outputs | 16 |
| Width | 15 mm |
| Voltage type (supply voltage) | DC |
| Time delay at signal change | 0.15 ms |
| Rail mounting possible | true |
| Rack-assembly possible | false |
| Time delay at signal change | 0.2 ms |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard GSM | false |
| Output current | 0.5 A |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for LON | false |
| Radio standard Bluetooth | false |
| Radio standard UMTS | false |
| System accessory | true |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for INTERBUS-Safety | false |
| IO link master | false |
| Radio standard GPRS | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SafetyBUS p | false |
