Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

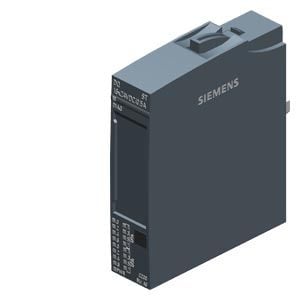

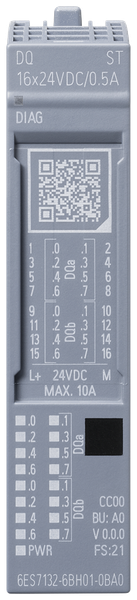

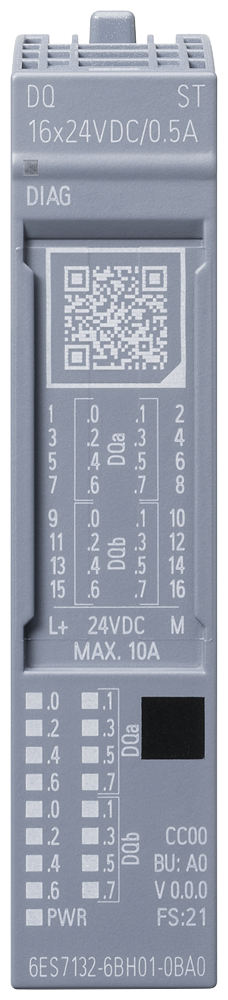

Material ID: 6ES7132-6BH01-0BA0
- SIMATIC ET 200SP
- Digital output module, DQ 16x 24V DC/0,5A Standard, Source output (PNP, P-switching)
- Packing unit: 1 piece
- Fits to BU-type A0
- Colour Code CC00
- Subsitute value output
- Module diagnostics for:
- Short-circuit to L+ and ground
- Wire break
- Supply voltage
- Siemens offers a multifunctional and distributed I/O system, which can be commissioned very simply due to its space-saving design.
- Approved for degree of protection IP20 and for installation in a compact control box.
- Maximum flexibility due to multi hot swapping feature for quick and simple replacement of modules.
- Wide range of different and fast communication methods available.
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols for flexible usage.
- Simplified installation and service with standardized
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Type of output voltage | DC |
| Supporting protocol for TCP/IP | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for PROFINET CBA | false |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for DeviceNet | false |
| Output current | 0.5 A |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for LON | false |
| Front built-in possible | false |
| Width | 15 mm |
| Radio standard Bluetooth | false |
| Permitted voltage at output | 28.8 V |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard GSM | false |
| Supporting protocol for SafetyBUS p | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for ASI | false |
| Digital outputs configurable | true |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for SERCOS | false |
| Radio standard GPRS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Short-circuit protection, outputs available | true |
| Supporting protocol for CAN | false |
| System accessory | true |
| Permitted voltage at output | 19.2 V |
| Rail mounting possible | true |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for EtherNet/IP | false |
| Suitable for safety functions | false |
| Supply voltage DC | 19.2 V |
| Radio standard UMTS | false |
| Degree of protection (IP) | IP20 |
| With optical interface | false |
| Number of digital outputs | 16 |
| Supporting protocol for KNX | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for SUCONET | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for PROFIBUS | false |
| Depth | 58 mm |
| Rack-assembly possible | false |
| Supporting protocol for Data-Highway | false |
| Height | 73 mm |
| Voltage type (supply voltage) | DC |
