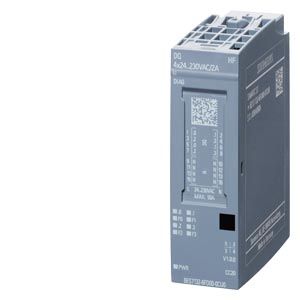

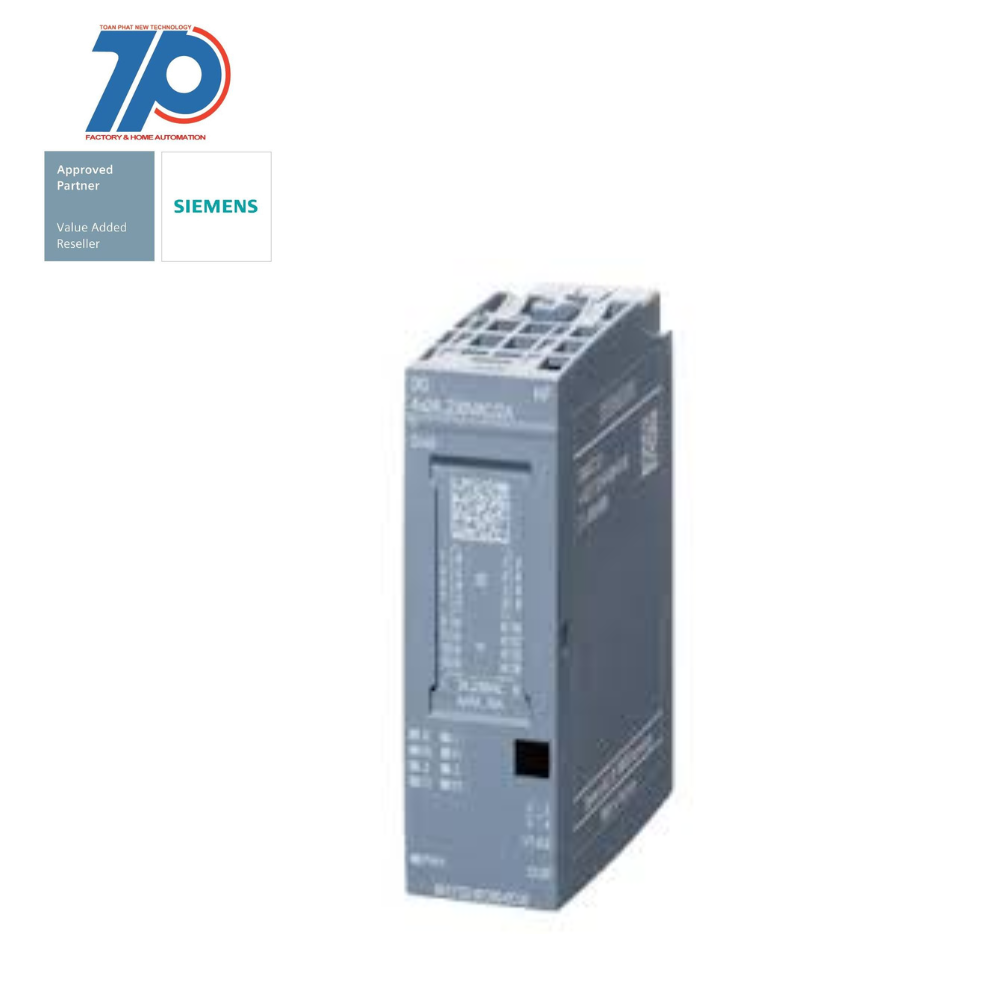

Material ID: 6ES7132-6FD00-0CU0
- SIMATIC ET 200SP digital output module DQ 4x 24..230V AC/2A HF packaging unit: 1 piece
- Two alternative modes: DQ and power control
- Fits to BU-Type U0, color code CC20, channel diagnosis
- Approved for degree of protection IP20 and for installation in a compact control box
- Multi hot swapping feature allows for quick and simple module replacement
- Offers a wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system simplifies installation and service
- Future-proof investment due to integration of innovative and long-life automation products
- Ensures consistent data availability, flexible use cases, and versatile integration options
- Scalable, cost-optimized configuration of an ET 200SP station is ensured by wide range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard Bluetooth | false |
| Supporting protocol for EtherNet/IP | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for LON | false |
| Supporting protocol for DeviceNet Safety | false |
| Rack-assembly possible | false |
| Front built-in possible | false |
| Suitable for safety functions | false |
| Voltage type (supply voltage) | AC |
| Time delay at signal change | 20 ms |
| Height | 73 mm |
| IO link master | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for INTERBUS | false |
| Rail mounting possible | true |
| With optical interface | false |
| Radio standard UMTS | false |
| Number of digital outputs | 4 |
| Supporting protocol for CAN | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage AC 60 Hz | 264 V |
| Supporting protocol for ASI | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for SERCOS | false |
| Supply voltage AC 60 Hz | 20.4 V |
| Supporting protocol for Data-Highway | false |
| Permitted voltage at output | 264 V |
| Supporting protocol for TCP/IP | false |
| Radio standard WLAN 802.11 | false |
| Output current | 2 A |
| Radio standard GSM | false |
| Radio standard GPRS | false |
| Supply voltage AC 50 Hz | 20.4 V |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for KNX | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | false |
| Type of digital output | Triac |
| Supply voltage AC 50 Hz | 264 V |
| Permitted voltage at output | 20.4 V |
| Depth | 58 mm |
| Supporting protocol for PROFINET CBA | false |
| Digital outputs configurable | true |
| Time delay at signal change | 40 ms |
| System accessory | true |
| Appendant operation agent (Ex ia) | false |
| Width | 20 mm |
| Short-circuit protection, outputs available | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SafetyBUS p | false |
| Wall mounting/direct mounting | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for other bus systems | false |
