Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

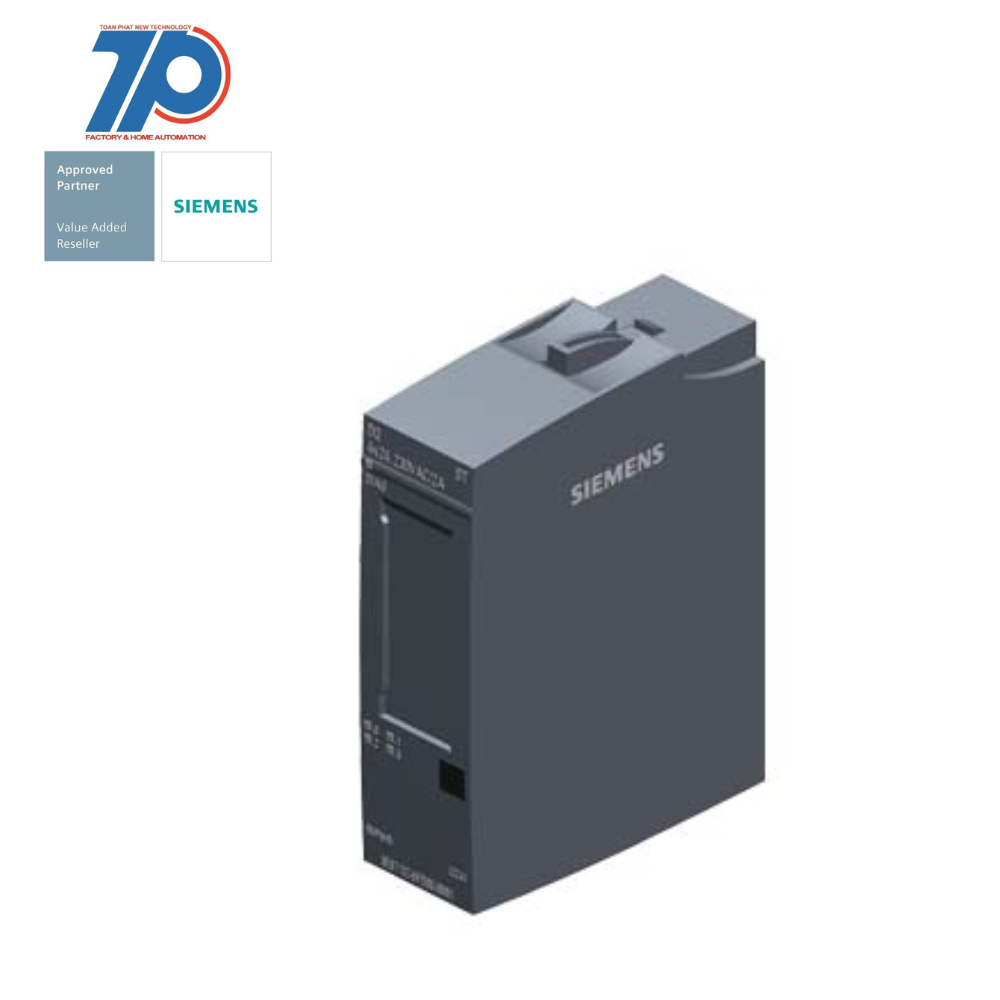

Material ID: 6ES7132-6FD00-2BB1
- SIMATIC ET 200SP, digital output module, DQ 4x 24..230V AC/2A Standard Pack quantity: 10 units
- Suitable for BU type B1, Color code CC41
- Module diagnostics
- Multifunctional and distributed I/O system
- Commissioned easily due to space-saving design
- Approved for degree of protection IP20 and installation in a compact control box
- Multi hot swapping feature for quick and simple module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF for flexible protocol use
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Consistent data availability, flexible use cases, and versatile integration options
- Scalable and cost-optimized configuration with a wide range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters suitable for
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted voltage at output | 20.4 V |
| Supporting protocol for EtherNet/IP | false |
| IO link master | false |
| Permitted voltage at output | 264 V |

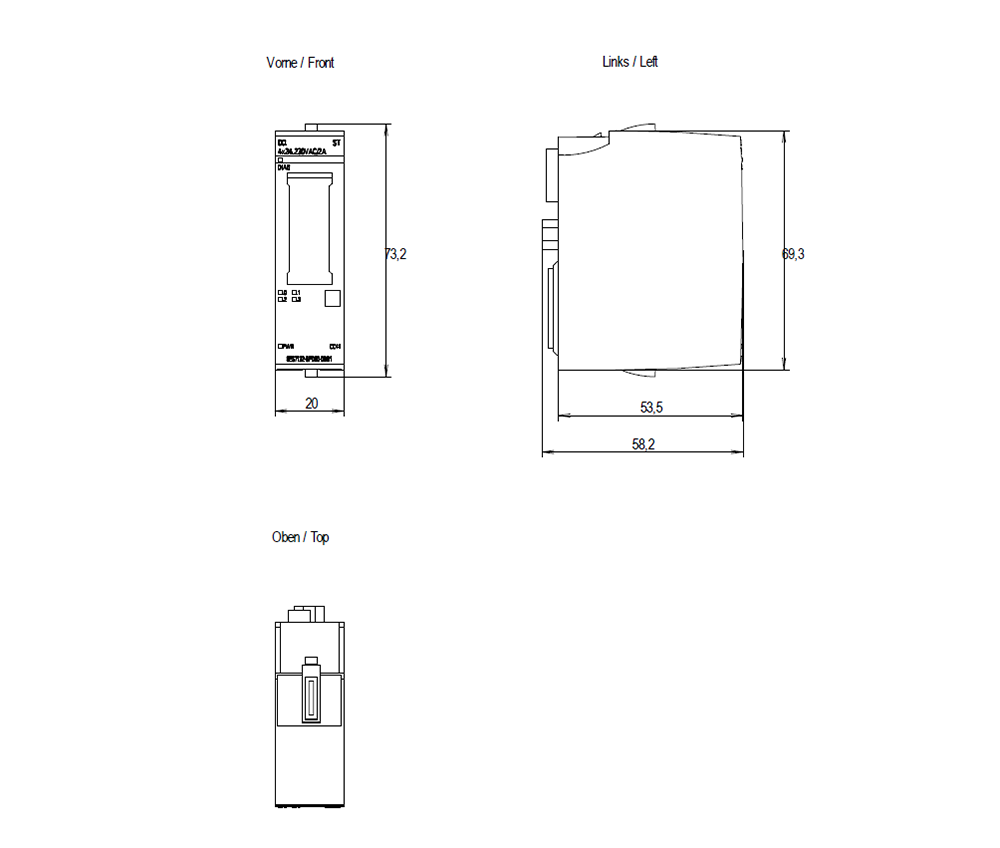

| Width | 20 mm |
| Suitable for safety functions | false |
| Radio standard GSM | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard Bluetooth | false |
| Supporting protocol for SUCONET | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFINET IO | false |
| Degree of protection (IP) | IP20 |
| Depth | 58 mm |
| Short-circuit protection, outputs available | false |
| Supporting protocol for CAN | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Modbus | false |
| Rack-assembly possible | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for ASI | false |
| System accessory | true |
| Rail mounting possible | true |
| Number of digital outputs | 4 |
| Radio standard GPRS | false |
| Radio standard UMTS | false |
| Supporting protocol for SafetyBUS p | false |
| Front built-in possible | false |
| Supply voltage AC 50 Hz | 20.4 V |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for LON | false |
| Digital outputs configurable | true |
| Supply voltage AC 50 Hz | 264 V |
| Height | 73 mm |
| Supporting protocol for AS-Interface Safety at Work | false |
| Output current | 2 A |
| Supply voltage AC 60 Hz | 20.4 V |
| Supporting protocol for SERCOS | false |
| Supporting protocol for PROFINET CBA | false |
| With optical interface | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFIBUS | false |
| Voltage type (supply voltage) | AC |
| Fieldbus connection over separate bus coupler possible | true |
| Time delay at signal change | 10 ms |
| Supply voltage AC 60 Hz | 264 V |
