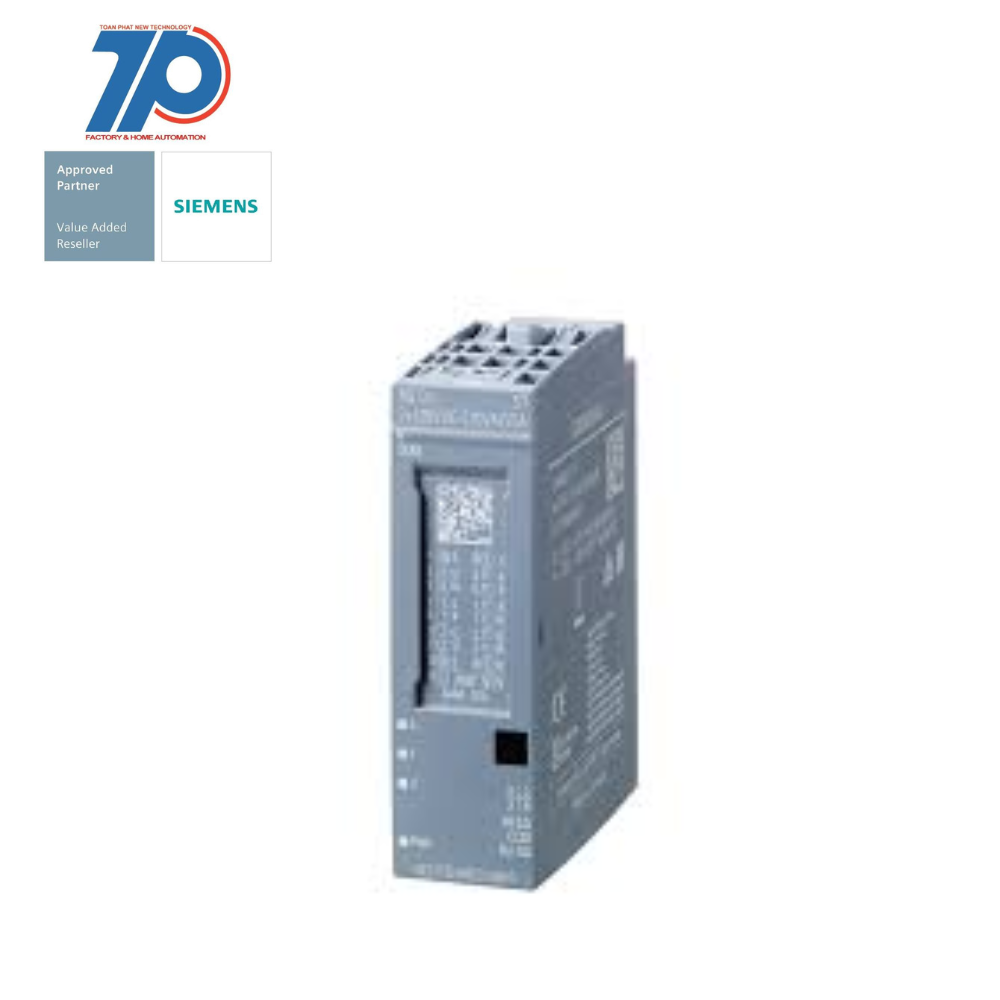

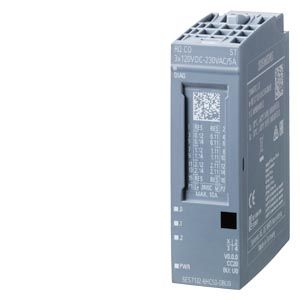

Material ID: 6ES7132-6HC50-0BU0
- SIMATIC ET 200SP, relay module, RQ CO 3x 120V DC..230VAC/5A ST
- 3 CO contacts isolated contacts
- Packing unit: 1 unit
- Suitable for BU type U0, color code CC20
- Substitute value output, module diagnostics for supply voltage
- Multifunctional and distributed I/O system by Siemens
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for quickly replacing modules
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Standardized identification system based on equipment labeling plates and color-coded connector assignments
- Future-proof investment with innovative and long-life automation products
- Scalable configuration with a wide range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters suitable for motors up to
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for AS-Interface Safety at Work | false |
| With optical interface | false |
| IO link master | false |
| Radio standard GSM | false |
| Supporting protocol for DeviceNet | false |
| Appendant operation agent (Ex ia) | false |
| Short-circuit protection, outputs available | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet Safety | false |
| Digital outputs configurable | true |
| Type of digital output | Relay |
| Permitted voltage at output | 20.4 V |
| Degree of protection (IP) | IP20 |
| Depth | 58 mm |
| Permitted voltage at output | 264 V |
| Height | 73 mm |
| Radio standard Bluetooth | false |
| Radio standard UMTS | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Modbus | false |
| System accessory | true |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for CAN | false |
| Supporting protocol for EtherNet/IP | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for other bus systems | false |
| Appendant operation agent (Ex ib) | false |
| Width | 20 mm |
| Supporting protocol for KNX | false |
| Type of output voltage | AC/DC |
| Supporting protocol for ASI | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFIsafe | false |
| Front built-in possible | false |
| Number of digital outputs | 3 |
| Supply voltage DC | 19.2 V |
| Rack-assembly possible | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Suitable for safety functions | false |
| Rail mounting possible | true |
| Supporting protocol for PROFIBUS | false |
| Radio standard WLAN 802.11 | false |
| Radio standard GPRS | false |
