Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

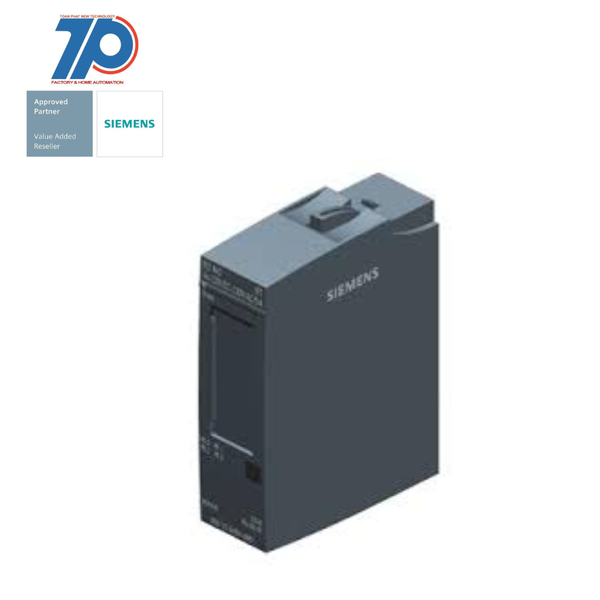

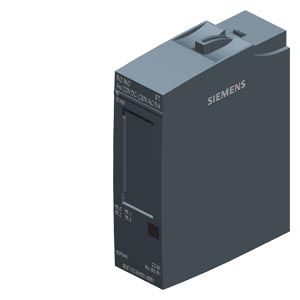

Material ID: 6ES7132-6HD01-2BB1
- SIMATIC ET 200SP, Relay module, RQ NO 4x 120V DC..230VAC/5A ST
- 4 normally open contacts
- Isolated contacts
- Packing unit: 10 pieces
- Fits to BU-type B0 and B1
- Colour Code CC40
- Substitute value output
- Module diagnostics for supply voltage
- Siemens offers a multifunctional and distributed I/O system with SIMATIC ET 200SP
- Commissioned simply due to space-saving design
- Approved for degree of protection IP20
- Installation in a compact control box
- Multi hot swapping feature for quick module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Simplified installation and service with standardized identification system
- Future-proof investment with integration of innovative and long-life automation products from Siemens
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted voltage at output | 264 V |
| Supporting protocol for ASI | false |
| Supply voltage DC | 19.2 V |
| Supporting protocol for other bus systems | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for EtherNet/IP | false |
| Type of digital output | Relay |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for INTERBUS | false |
| Wall mounting/direct mounting | false |
| Fieldbus connection over separate bus coupler possible | true |
| Digital outputs configurable | true |
| Supporting protocol for SafetyBUS p | false |
| Appendant operation agent (Ex ia) | false |
| Radio standard Bluetooth | false |
| Rail mounting possible | true |
| Supporting protocol for TCP/IP | false |
| With optical interface | false |
| Supporting protocol for DeviceNet Safety | false |
| Front built-in possible | false |
| Supporting protocol for Data-Highway | false |
| Height | 73 mm |
| IO link master | false |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for SERCOS | false |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Short-circuit protection, outputs available | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard WLAN 802.11 | false |
| Supply voltage DC | 28.8 V |
| Number of digital outputs | 4 |
| Supporting protocol for CAN | false |
| Width | 20 mm |
| Radio standard GPRS | false |
| Permitted voltage at output | 20.4 V |
| Suitable for safety functions | false |
| Rack-assembly possible | false |
| Depth | 58 mm |
| Supporting protocol for KNX | false |
| Type of output voltage | AC/DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Modbus | false |
| Radio standard GSM | false |
| Radio standard UMTS | false |
| System accessory | true |
| Supporting protocol for DeviceNet | false |
