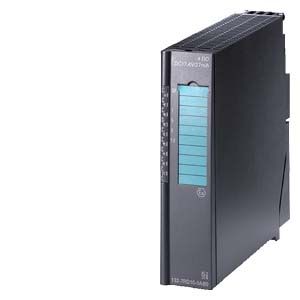

Material ID: 6ES7132-7GD10-0AB0Product Description

SIMATIC DP

Electronic Module for ET200iSP

The SIMATIC DP is an electronic module designed specifically for the ET200iSP system. It offers a range of features and benefits that make it an ideal choice for various applications.

Technical Features:

Commercial Benefits:

    • 4 DQ: This module provides 4 digital outputs.
    • 17.4 V DC/27 mA: It operates at a voltage of 17.4 V DC with a current of 27 mA.
    • "L"-shutdown: The module supports "L"-shutdown functionality.
    • Ex ib (ia Ga) IIC T4 Gb: It is certified for use in hazardous environments with Ex ib (ia Ga) IIC T4 Gb classification.
    • Ex ib [ia IIIC Da] IIC T4 Gb: It also has Ex ib [ia IIIC Da] IIC T4 Gb certification.
    • Ex ib [ia] I Mb: Additionally, it is certified with Ex ib [ia] I Mb classification.
    • The SIMATIC DP module offers reliable and efficient performance.
    • With its 4 digital outputs, it provides flexibility in controlling various devices.
    • It operates at a voltage of 17.4 V DC, ensuring compatibility with different power sources.
    • The "L"-shutdown feature enhances safety by allowing for immediate shutdown in case of emergencies.
    • Its Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb certifications make it suitable for use in hazardous environments.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Permitted voltage at output0 V
Appendant operation agent (Ex ib)true
Number of digital inputs0
Time delay at signal change1.5 ms
Rack-assembly possiblefalse

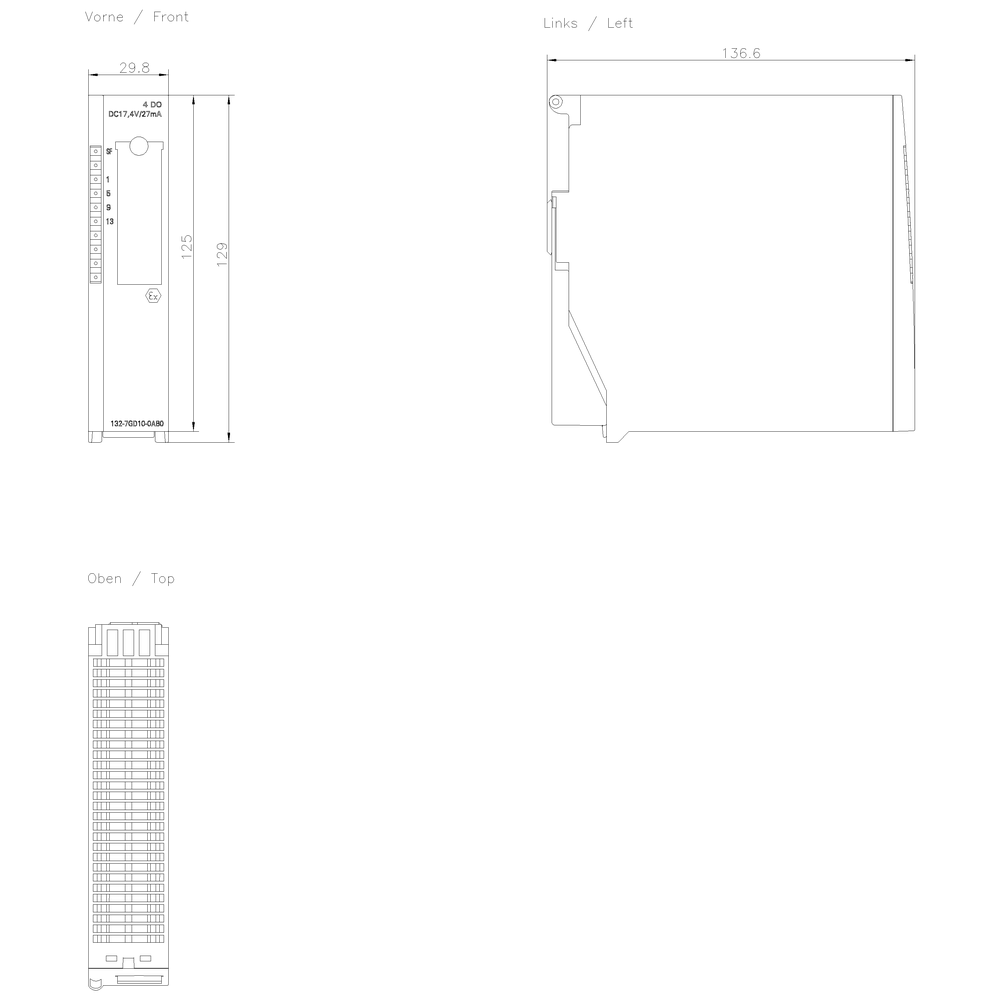

Depth136.5 mm
Radio standard GPRSfalse
Supporting protocol for KNXfalse
Output current0.027 A
Supporting protocol for Modbusfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Permitted voltage at output17.4 V
Supporting protocol for ASIfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4850
Degree of protection (IP)IP30
Number of HW-interfaces RS-2320
IO link masterfalse
Height129 mm
Width30 mm
Number of HW-interfaces parallel0
Radio standard GSMfalse
Supporting protocol for CANfalse
Number of HW-interfaces USB0
Number of HW-interfaces industrial Ethernet0
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Foundation Fieldbusfalse
Number of interfaces PROFINET0
Supporting protocol for DeviceNetfalse
Supporting protocol for LONfalse
With optical interfacefalse
Supporting protocol for PROFIBUSfalse
Fieldbus connection over separate bus coupler possibletrue
System accessorytrue
Number of HW-interfaces other0
Rail mounting possibletrue
Number of HW-interfaces RS-4220
Front built-in possibletrue
Supporting protocol for PROFINET IOfalse
Digital outputs configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Type of output voltageDC
Time delay at signal change2 ms
Supporting protocol for SUCONETfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of digital outputs4
Supporting protocol for INTERBUSfalse
Radio standard WLAN 802.11false
Wall mounting/direct mountingfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Short-circuit protection, outputs availabletrue
Radio standard Bluetoothfalse
Supporting protocol for PROFIsafefalse
Radio standard UMTSfalse
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces serial TTY0
Supporting protocol for PROFINET CBAfalse
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)true
