Material ID: 6ES7132-7GD21-0AB0

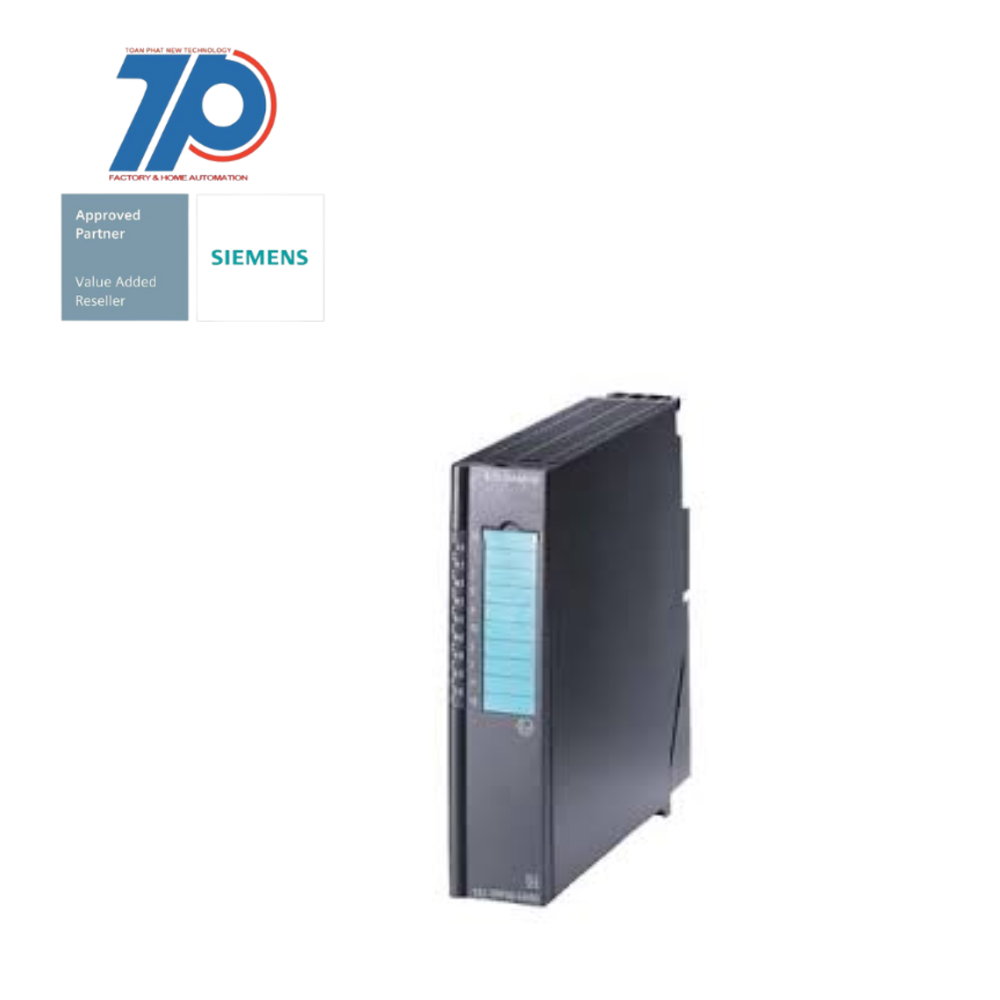

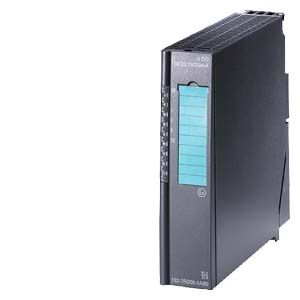

SIMATIC DP Electronic Module for ET200iSP

This electronic module is designed for use with the ET200iSP system. It offers the following technical features:

With its advanced features, this electronic module offers several commercial benefits:

    • 4 DQ: This module provides 4 digital outputs.
    • 17.4 V DC/40 mA: It operates at a voltage of 17.4 V DC with a current of 40 mA.
    • "L"-shutdown: The module supports "L"-shutdown functionality.
    • Ex ib (ia Ga) IIC T4 Gb: It is certified for use in hazardous areas with explosive gases (Ex ib) and has a temperature classification of T4. It is suitable for use in Zone 1 (Ga) and has a general level of protection (Gb).
    • Ex ib [ia IIIC Da] IIC T4 Gb: This module is also certified for use in hazardous areas with explosive dust (Ex ib) and has a temperature classification of T4. It is suitable for use in Zone 22 (Da) and has a general level of protection (Gb).
    • Ex ib [ia] I Mb: It is certified for use in hazardous areas with intrinsically safe circuits (Ex ib) and has a level of protection (Mb).
    • Enhanced safety: The module's certifications ensure safe operation in hazardous areas.
    • Flexible integration: It is designed for use with the ET200iSP system, allowing for easy integration into existing setups.
    • Reliable performance: The module's high-quality construction ensures reliable and consistent performance.
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for LONfalse
Radio standard GSMfalse

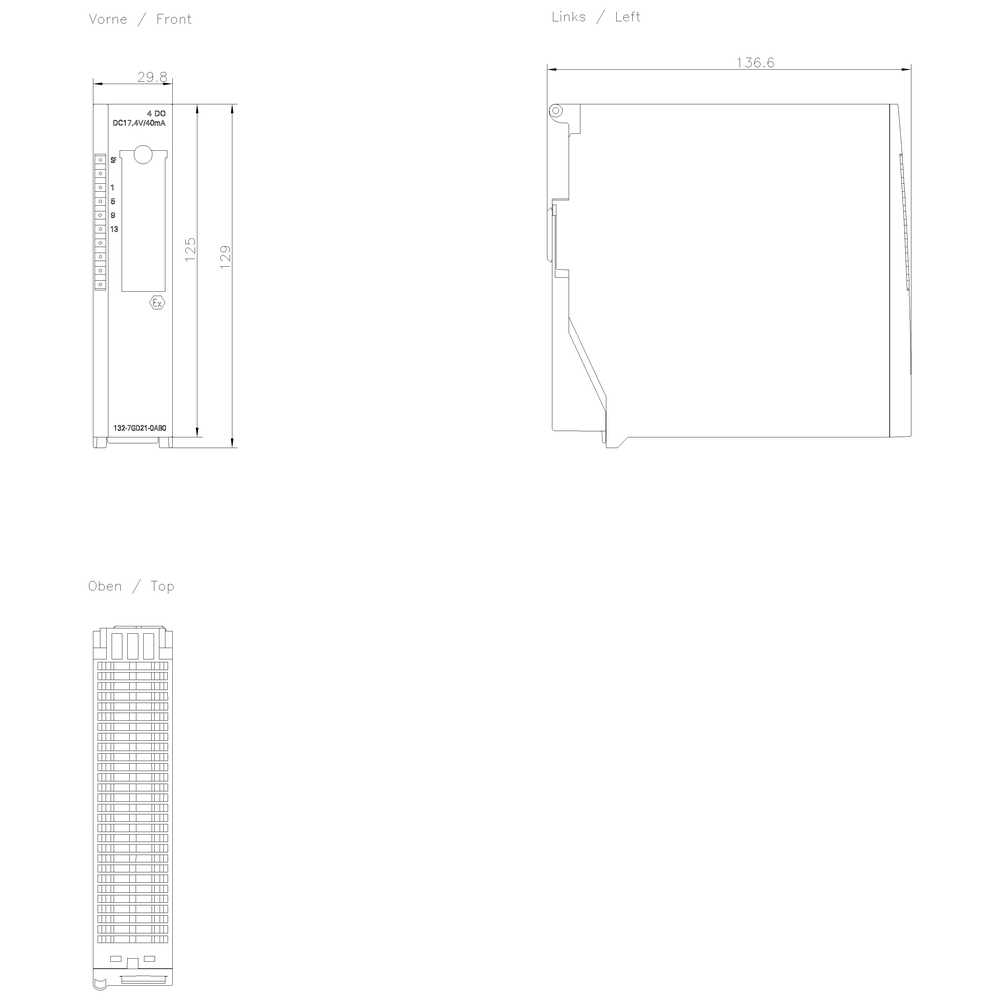

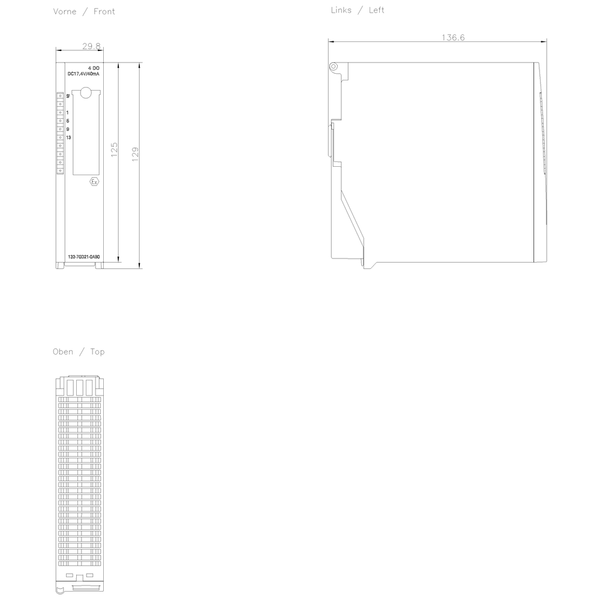

Width30 mm
Time delay at signal change2 ms
Supporting protocol for PROFIsafefalse
Supporting protocol for EtherNet/IPfalse
Permitted voltage at output0 V
Supporting protocol for CANfalse
Appendant operation agent (Ex ib)true
Height129 mm
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Data-Highwayfalse
Wall mounting/direct mountingfalse
Number of HW-interfaces RS-2320
Supporting protocol for other bus systemsfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for KNXfalse
Number of digital outputs4
Number of HW-interfaces industrial Ethernet0
Supporting protocol for Foundation Fieldbusfalse
Radio standard WLAN 802.11false
System accessorytrue
Supporting protocol for SUCONETfalse
Supporting protocol for SERCOSfalse
Rail mounting possibletrue
Output current0.04 A
Number of HW-interfaces wireless0
Supporting protocol for Modbusfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces serial TTY0
Time delay at signal change1.5 ms
Number of digital inputs0
Number of HW-interfaces other0
Number of interfaces PROFINET0
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Radio standard GPRSfalse
Short-circuit protection, outputs availabletrue
IO link masterfalse
Type of output voltageDC
Supporting protocol for DeviceNetfalse
Supporting protocol for PROFINET IOfalse
Digital outputs configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Number of HW-interfaces RS-4850
Permitted voltage at output17.4 V
Number of HW-interfaces parallel0
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Degree of protection (IP)IP30
Appendant operation agent (Ex ia)true
Number of HW-interfaces RS-4220
Supporting protocol for PROFIBUSfalse
Depth136.5 mm
Front built-in possibletrue
Radio standard UMTSfalse
With optical interfacefalse
Number of HW-interfaces USB0
Radio standard Bluetoothfalse
