Material ID: 6ES7132-7HB00-0AB0SIMATIC DP Electronic Module for ET200iSP

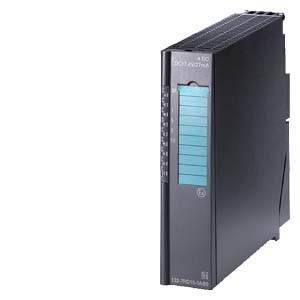

SIMATIC DP Electronic Module for ET200iSP

Technical Features:

Commercial Benefits:

    • Module Type: Electronic module for ET200iSP
    • Number of Digital Outputs: 2
    • Output Type: Relay
    • Rated Voltage: UC60V
    • Rated Current: 2A
    • Explosion Protection: Ex eb ib mb IIC T4 Gb
    • Explosion Protection Zone: Ex eb ib mb I Mb
    • Enhanced safety with explosion protection
    • Reliable relay output for control applications
    • Compatible with ET200iSP system
    • Easy integration into existing setups
Additional Information

Support

Technical Data

Manuals / Links

Thông số kỹ thuật
FEATUREVALUE
Type of output voltageAC/DC
Depth136.5 mm
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for SUCONETfalse
Number of HW-interfaces parallel0
Supporting protocol for other bus systemsfalse
Supporting protocol for INTERBUSfalse
System accessorytrue
Suitable for safety functionsfalse
Number of HW-interfaces USB0
Degree of protection (IP)IP30
Appendant operation agent (Ex ia)false
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNet Safetyfalse
With optical interfacefalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Radio standard GSMfalse
Supporting protocol for LONfalse
Number of HW-interfaces other0
Digital outputs configurabletrue
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Time delay at signal change7 ms
Supporting protocol for KNXfalse
IO link masterfalse
Number of HW-interfaces serial TTY0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Radio standard WLAN 802.11false
Height129 mm
Appendant operation agent (Ex ib)false
Supporting protocol for PROFINET IOfalse
Supporting protocol for Modbusfalse
Width30 mm
Rack-assembly possiblefalse
Number of digital inputs0
Output current2 A
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for ASIfalse
Supporting protocol for Foundation Fieldbusfalse
Time delay at signal change3 ms
Rail mounting possibletrue
Number of interfaces PROFINET0
Wall mounting/direct mountingfalse
Front built-in possibletrue
Number of digital outputs2
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIBUSfalse
Permitted voltage at output72 V
Permitted voltage at output0 V
Short-circuit protection, outputs availablefalse
Radio standard GPRSfalse
Number of HW-interfaces RS-4850
