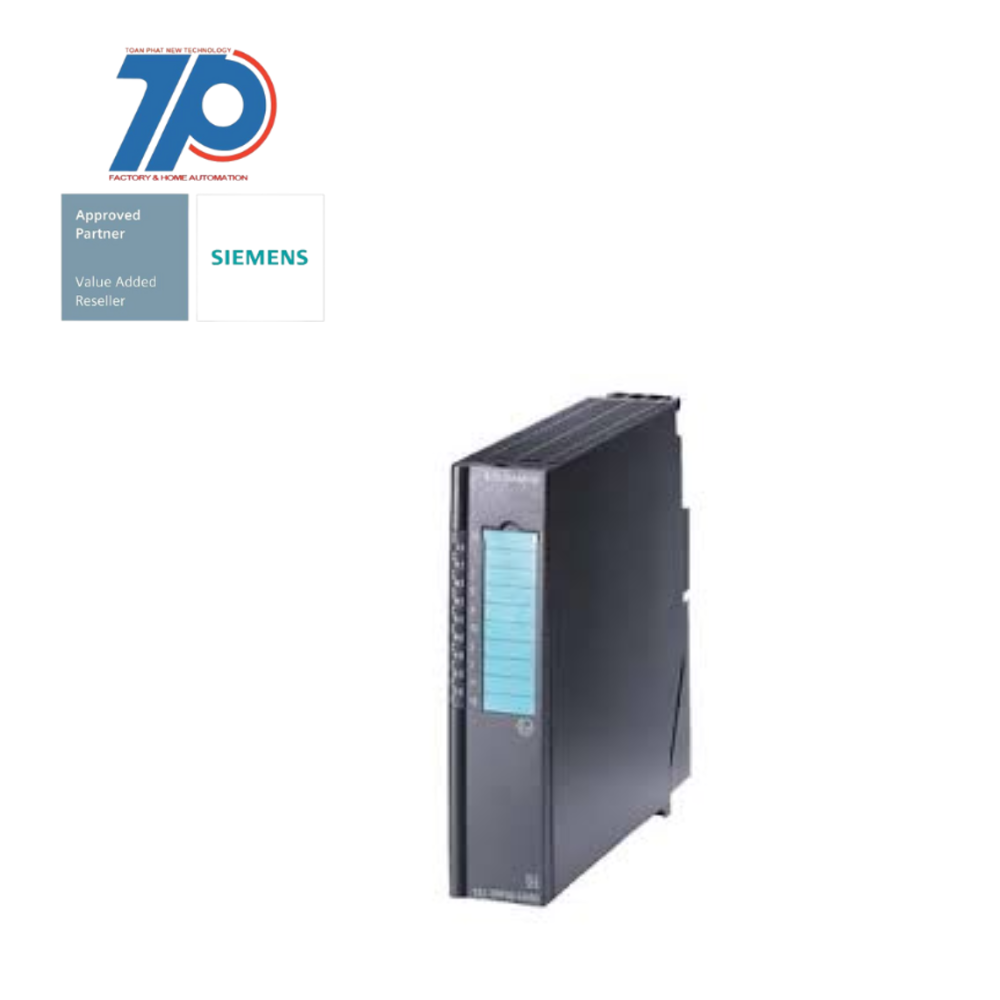

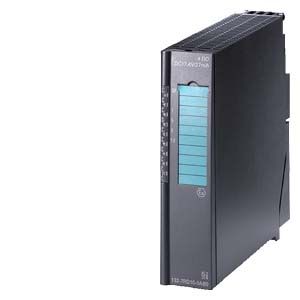

Material ID: 6ES7132-7RD11-0AB0

SIMATIC DP

Il modulo elettronico per ET200iSP è progettato per offrire prestazioni eccellenti e affidabilità. Con 4 DQ, è in grado di gestire una varietà di applicazioni.

Caratteristiche tecniche:

Vantaggi commerciali:

Questo modulo offre una soluzione affidabile per le applicazioni industriali. Grazie alle sue caratteristiche tecniche avanzate, garantisce una gestione efficiente dei dispositivi elettronici. La sua classificazione Ex ib lo rende adatto per l'utilizzo in ambienti potenzialmente esplosivi.

    • Tensione di alimentazione: 17.4 V DC
    • Corrente di alimentazione: 27 mA
    • Modalità di spegnimento "H"
    • Classificazione Ex ib (ia Ga) IIC T4 Gb
    • Classificazione Ex ib [ia IIIC Da] IIC T4 Gb
    • Classificazione Ex ib [ia] I Mb
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật

FEATUREVALUE
Time delay at signal change1.5 ms
Radio standard GSMfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Number of HW-interfaces other0
Appendant operation agent (Ex ia)true
Number of interfaces PROFINET0
Type of output voltageDC
Supporting protocol for AS-Interface Safety at Workfalse

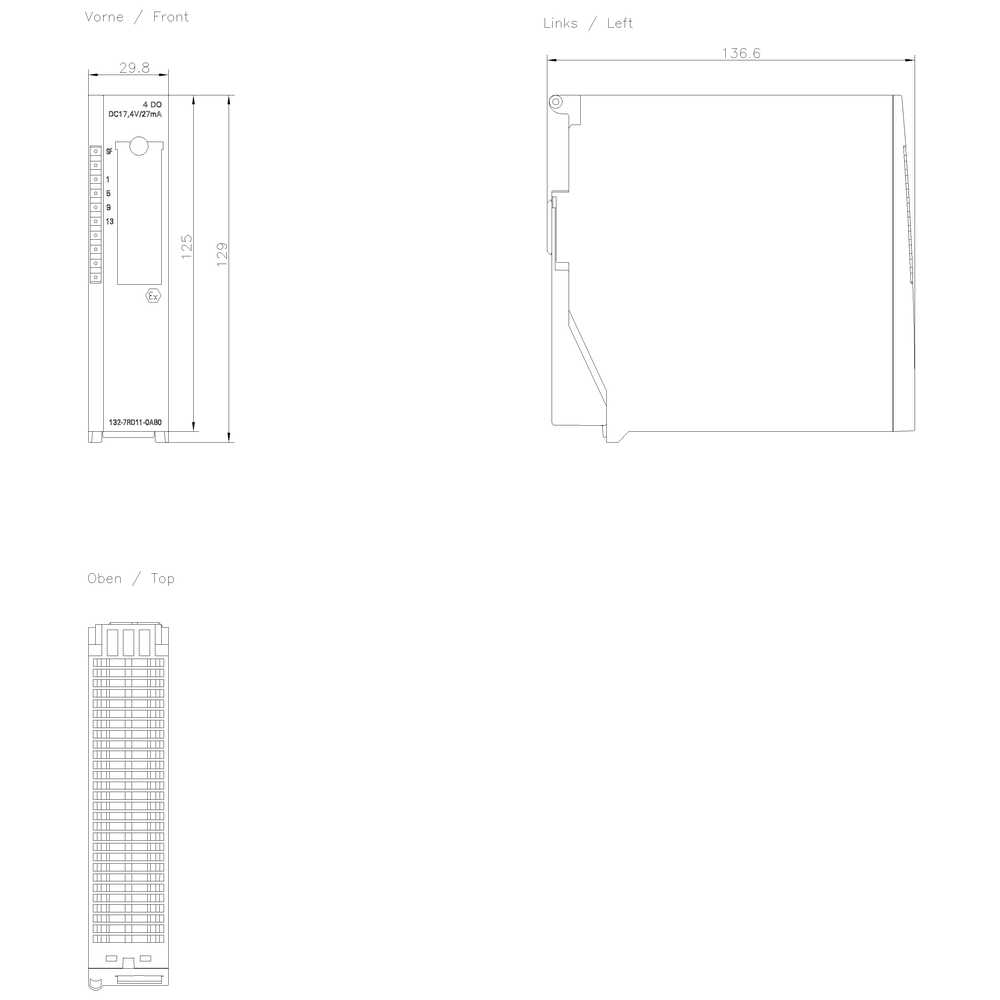

Height129 mm
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for INTERBUSfalse
Supporting protocol for ASIfalse
Number of HW-interfaces wireless0
Time delay at signal change2 ms
Number of HW-interfaces RS-4220
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for DeviceNet Safetyfalse
Number of digital outputs4
Supporting protocol for Modbusfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces parallel0
Radio standard UMTSfalse
Supporting protocol for PROFINET IOfalse
Radio standard WLAN 802.11false
Suitable for safety functionsfalse
Output current0.027 A
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for KNXfalse
Radio standard Bluetoothfalse
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB0
Supporting protocol for PROFINET CBAfalse
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Radio standard GPRSfalse
Degree of protection (IP)IP30
Appendant operation agent (Ex ib)true
Width30 mm
Supporting protocol for PROFIBUSfalse
Supporting protocol for SERCOSfalse
Supporting protocol for SUCONETfalse
Rack-assembly possiblefalse
With optical interfacefalse
Digital outputs configurabletrue
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Permitted voltage at output17.4 V
Short-circuit protection, outputs availabletrue
Permitted voltage at output0 V
Number of digital inputs0
Rail mounting possibletrue
Supporting protocol for LONfalse
IO link masterfalse
Depth136.5 mm
Front built-in possibletrue
