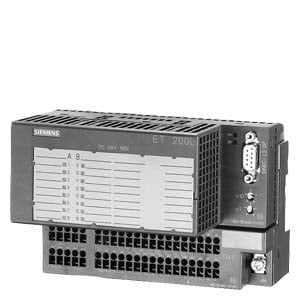

Material ID: 6ES7133-1BL01-0XB0
- Spare part
- SIMATIC DP
- Electronic module for ET 200L 16 DI/16 DO
- 24 V DC/0.5 A
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of digital inputs | 16 |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for KNX | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for CAN | false |
| Supply voltage DC | 20.4 V |
| Type of digital output | Transistor |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Radio standard UMTS | false |
| Supporting protocol for ASI | false |
| Rack-assembly possible | false |
| Width | 145 mm |
| Supporting protocol for INTERBUS | false |
| Rail mounting possible | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET IO | false |
| Permitted voltage at output | 25.8 V |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for PROFINET CBA | false |
| Permitted voltage at output | 17.4 V |
| Radio standard Bluetooth | false |
| Permitted voltage at input | 30 V |
| Time delay at signal change | 2 ms |
| Supporting protocol for LON | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard GSM | false |
| Output current | 0.5 A |
| Height | 60 mm |
| Appendant operation agent (Ex ia) | false |
| Type of output voltage | DC |
| Digital inputs configurable | true |
| Supporting protocol for Data-Highway | false |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Number of digital outputs | 16 |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet Safety | false |
| Front built-in possible | false |
| Supporting protocol for other bus systems | false |
| Supply voltage DC | 28.8 V |
| Digital outputs configurable | true |
| Degree of protection (IP) | IP20 |
| Appendant operation agent (Ex ib) | false |
| Time delay at signal change | 4.5 ms |
| System accessory | true |
| Wall mounting/direct mounting | false |
| Short-circuit protection, outputs available | true |
| IO link master | false |
| Type of voltage (input voltage) | DC |
| Suitable for safety functions | false |
| Input current at signal 1 | 5 mA |
| Permitted voltage at input | -30 V |
| Depth | 60.5 mm |
| With optical interface | false |
