SIMATIC DP, Electronics module ET 200S: 2 AI High Speed U, 15 bit, 15 mm width, Cycle time of module: 0.1 ms, with SF LED (group fault)
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for INTERBUS | false |
Number of HW-interfaces serial TTY | 0 |
Supporting protocol for Modbus | false |
Degree of protection (IP) | IP20 |
Appendant operation agent (Ex ia) | false |
Supporting protocol for PROFINET IO | false |
Supporting protocol for Foundation Fieldbus | false |
System accessory | true |
Front built-in possible | true |
Radio standard UMTS | false |
IO link master | false |
Analogue inputs configurable | true |
Number of HW-interfaces wireless | 0 |
Appendant operation agent (Ex ib) | false |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for ASI | false |
Input, resistor | false |
Radio standard GSM | false |
Number of analogue inputs | 2 |
Number of HW-interfaces other | 0 |
Supporting protocol for AS-Interface Safety at Work | false |
Supporting protocol for PROFINET CBA | false |
Supporting protocol for CAN | false |

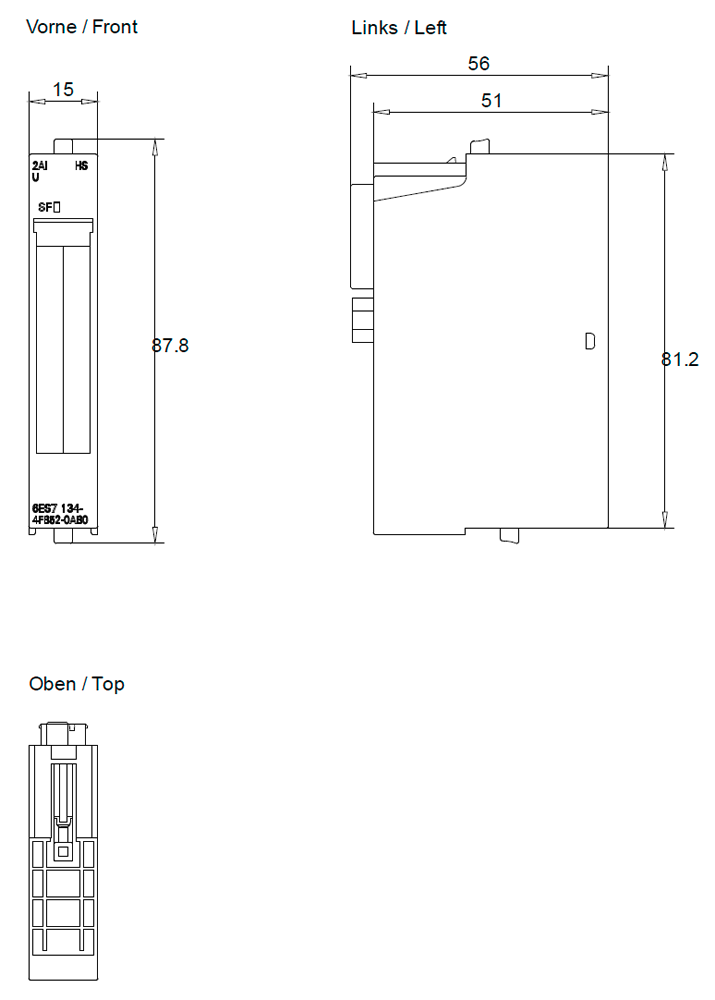

Height | 81 mm |
Input, resistance thermometer | false |
Input, current | false |
Depth | 52 mm |
Rack-assembly possible | false |
Rail mounting possible | true |
Supporting protocol for DeviceNet | false |
Supporting protocol for DeviceNet Safety | false |
Wall mounting/direct mounting | true |
Supporting protocol for LON | false |
Supporting protocol for PROFIBUS | false |
Radio standard GPRS | false |
Number of HW-interfaces industrial Ethernet | 0 |
Supporting protocol for SUCONET | false |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for Data-Highway | false |
Input signal, configurable | true |
Radio standard Bluetooth | false |
Input, voltage | true |
Supporting protocol for other bus systems | false |
Supporting protocol for PROFIsafe | false |
Radio standard WLAN 802.11 | false |
Supporting protocol for SERCOS | false |
Input, thermocouple | false |
Number of analogue outputs | 0 |
Number of HW-interfaces RS-485 | 0 |
Supply voltage DC | 28.8 V |
Number of HW-interfaces USB | 0 |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Supporting protocol for KNX | false |
Width | 15 mm |
Fieldbus connection over separate bus coupler possible | true |
Resolution of the analogue inputs | 16 Bit |
Supporting protocol for TCP/IP | false |
Number of HW-interfaces parallel | 0 |
Number of interfaces PROFINET | 0 |
Supply voltage DC | 20.4 V |
Suitable for safety functions | false |
Number of HW-interfaces RS-232 | 0 |
