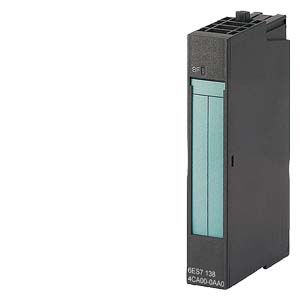

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price.
Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Number of HW-interfaces RS-485 | 0 |
Radio standard GPRS | false |
Number of interfaces PROFINET | 0 |
Supporting protocol for DeviceNet | false |
Suitable for safety functions | false |
Supporting protocol for Modbus | false |
Supporting protocol for other bus systems | false |
Resolution of the analogue inputs | 13 Bit |
Fieldbus connection over separate bus coupler possible | true |
Supporting protocol for Foundation Fieldbus | false |
Rack-assembly possible | false |
Number of analogue outputs | 0 |
Number of HW-interfaces wireless | 0 |
Radio standard Bluetooth | false |
Front built-in possible | true |
Supporting protocol for DeviceNet Safety | false |
Input, resistance thermometer | false |
Supporting protocol for TCP/IP | false |
Number of HW-interfaces parallel | 0 |
Supporting protocol for CAN | false |
Supporting protocol for PROFINET CBA | false |
Supporting protocol for ASI | false |
Supporting protocol for AS-Interface Safety at Work | false |
Number of HW-interfaces USB | 0 |
Number of HW-interfaces other | 0 |

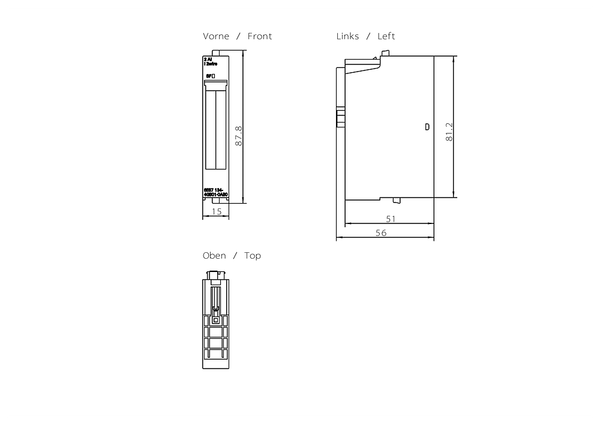

Width | 15 mm |
Radio standard GSM | false |
Input, resistor | false |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Input, thermocouple | false |
Radio standard WLAN 802.11 | false |
Supporting protocol for PROFIsafe | false |
IO link master | false |
System accessory | true |
Degree of protection (IP) | IP20 |
Supporting protocol for Data-Highway | false |
Supporting protocol for PROFIBUS | false |
Supporting protocol for SafetyBUS p | false |
Input, voltage | false |
Number of HW-interfaces industrial Ethernet | 0 |
Number of analogue inputs | 2 |
Radio standard UMTS | false |
Appendant operation agent (Ex ia) | false |
Supporting protocol for EtherNet/IP | false |
Input signal, configurable | true |
Rail mounting possible | true |
Depth | 52 mm |
Supporting protocol for SERCOS | false |
Analogue inputs configurable | true |
Number of HW-interfaces RS-422 | 0 |
Supply voltage DC | 20.4 V |
Height | 81 mm |
Input, current | true |
Appendant operation agent (Ex ib) | false |
Wall mounting/direct mounting | true |
Supply voltage DC | 28.8 V |
Supporting protocol for INTERBUS | false |
Number of HW-interfaces RS-232 | 0 |
Supporting protocol for LON | false |
Number of HW-interfaces serial TTY | 0 |
Supporting protocol for PROFINET IO | false |
Supporting protocol for KNX | false |
Supporting protocol for SUCONET | false |
