Material ID: 6ES7134-4GB52-0AB0Product Description

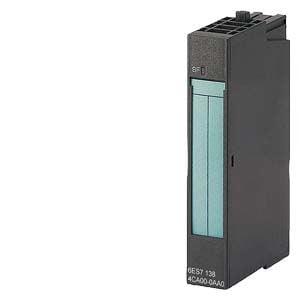

Spare part - SIMATIC DP, Electronics module ET200S

Technical Features:

Commercial Benefits:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    • 2AI High Speed I-2-wire 0-20 mA; 4.. 20mA
    • 15 bit, 15 mm width
    • Cycle time of module: 0.1 ms
    • With SF LED (group fault)
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supply voltage DC20.4 V
System accessorytrue
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Degree of protection (IP)IP20
Appendant operation agent (Ex ib)false
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Number of analogue outputs0
Supply voltage DC28.8 V
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for TCP/IPfalse
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Input signal, configurabletrue
Number of analogue inputs2
Supporting protocol for ASIfalse
Input, currenttrue
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Radio standard WLAN 802.11false
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Suitable for safety functionsfalse

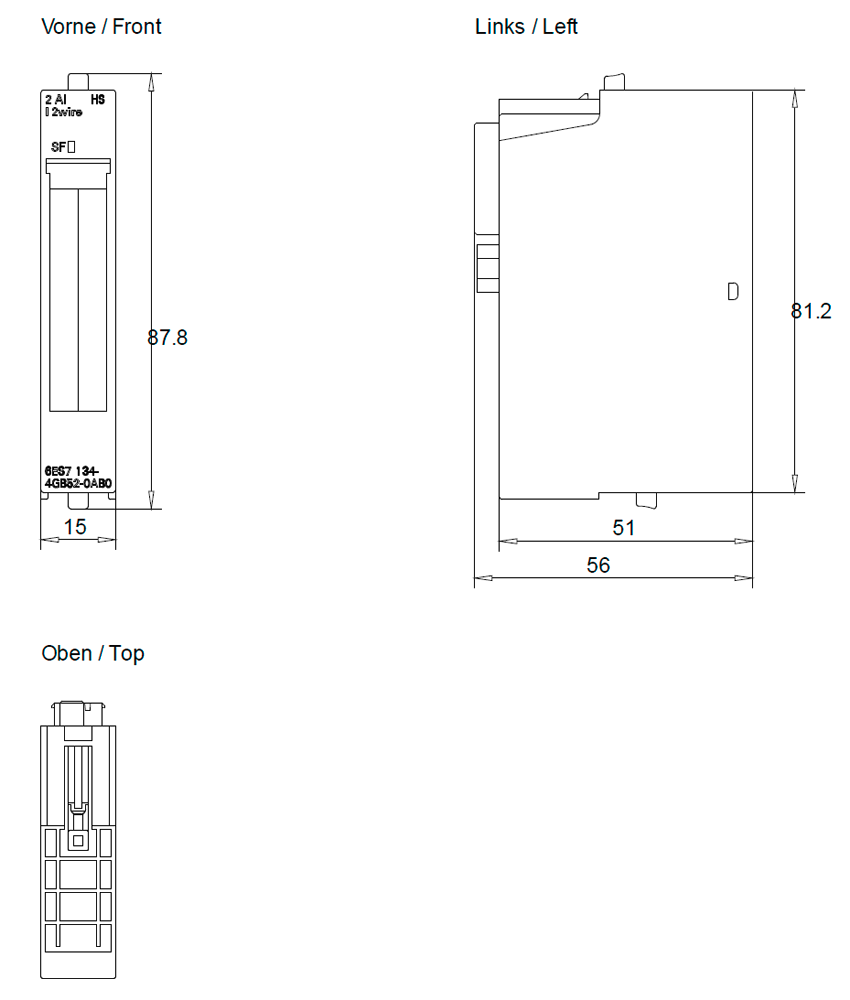

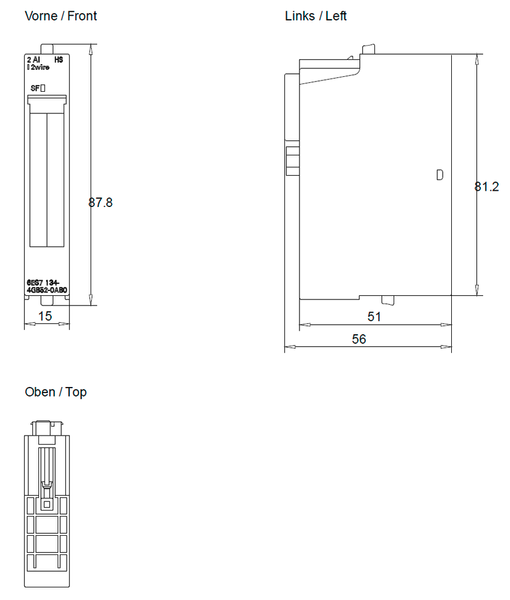

Width15 mm
Radio standard Bluetoothfalse
Wall mounting/direct mountingtrue
Analogue inputs configurabletrue
Input, thermocouplefalse
Radio standard GSMfalse
Input, resistorfalse
Appendant operation agent (Ex ia)false
Resolution of the analogue inputs16 Bit
Depth52 mm
Input, voltagefalse
Radio standard GPRSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for AS-Interface Safety at Workfalse
IO link masterfalse
Number of HW-interfaces parallel0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4850
Number of HW-interfaces other0
Supporting protocol for PROFIBUSfalse
Supporting protocol for SERCOSfalse
Supporting protocol for LONfalse
Supporting protocol for Data-Highwayfalse
Height81 mm
Input, resistance thermometerfalse
Number of interfaces PROFINET0
Supporting protocol for INTERBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces serial TTY0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Front built-in possibletrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for KNXfalse
