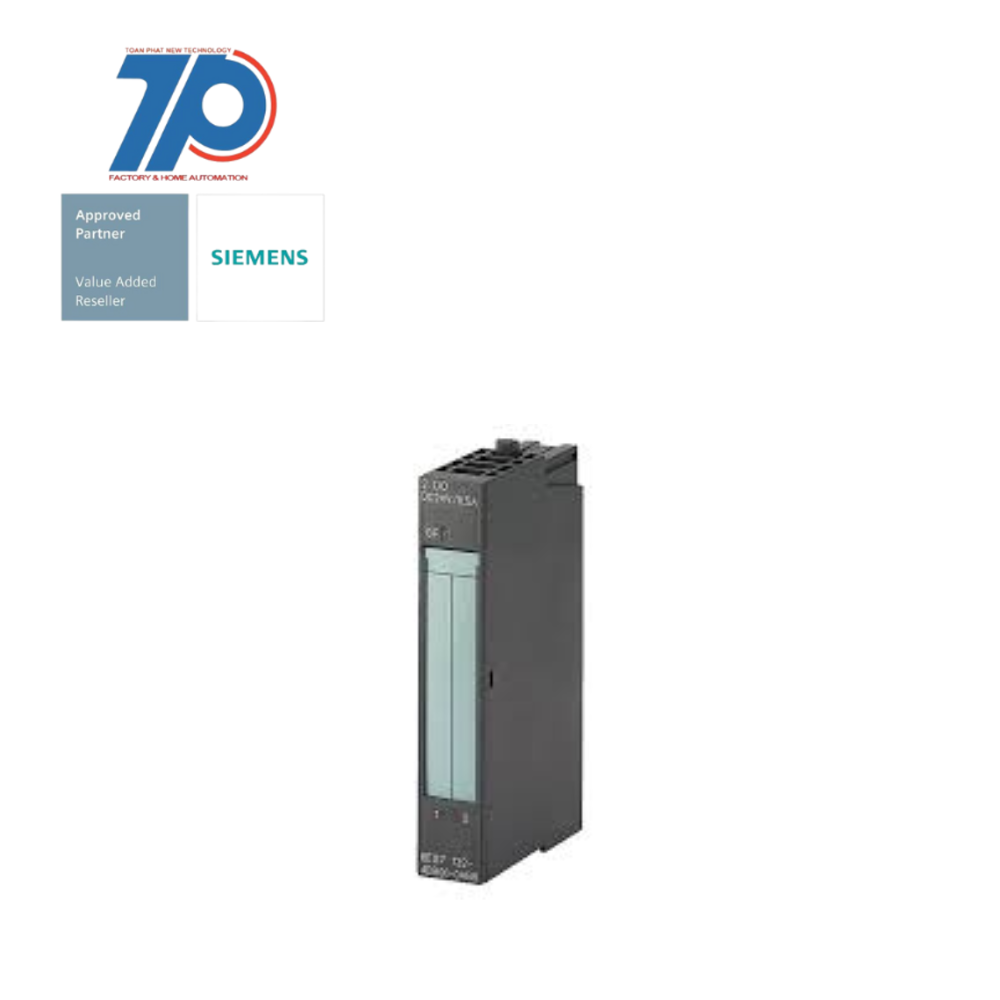

Material ID: 6ES7134-4GD00-0AB0Spare part - SIMATIC DP, Electronics module ET 200S 4AI standard I-2-wire, 4-20 mA

Spare part

SIMATIC DP, Electronics module ET 200S 4AI standard I-2-wire, 4-20 mA

This spare part is an electronics module designed for the SIMATIC DP system. It is specifically built for the ET 200S series and supports 4 analog inputs (4AI) with a standard I-2-wire interface. The module operates in the 4-20 mA range and provides a resolution of 13 bits. With a width of only 15 mm, it is compact and space-efficient.

The module is compatible with 2-wire transducers and has a cycle time of 40 ms per module. It features an SF LED for group fault indication, ensuring easy troubleshooting and maintenance.

Technical Features

Commercial Benefits

The SIMATIC ET 200S system is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the following advantages:

With its ease of use, scalability, and flexibility, the SIMATIC ET 200S system is an ideal choice for various industrial applications.

Note: "Hot swapping" refers to the capability of swapping modules and terminal boxes during operation, further enhancing the availability and productivity of the machine.

    • 4 analog inputs (4AI)
    • Standard I-2-wire interface
    • 4-20 mA operating range
    • 13-bit resolution
    • Compact design (15 mm width)
    • Compatible with 2-wire transducers
    • Cycle time: 40 ms per module
    • SF LED for group fault indication
    • Modular scalability: The system can be expanded with up to 64 I/O modules, allowing for flexible configuration.
    • Compatibility: The modules can be directly plugged into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
    • Wide range of modules: The system provides a comprehensive range of modules, including modules with standard functions (ST) and modules with extended functions and diagnostics (HF High Feature/ HS High Speed).
    • Improved scalability: The availability and functionality of the system can be enhanced by choosing modules with specific characteristics, tailoring the system to meet specific requirements.
    • Easy application: The ET 200S system allows for module and terminal box swapping during operation, minimizing downtime and increasing machine availability and productivity.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for INTERBUSfalse
Radio standard GSMfalse
Input, resistorfalse
Supporting protocol for LONfalse
Supporting protocol for Foundation Fieldbusfalse
Appendant operation agent (Ex ib)false
Number of interfaces PROFINET0
Number of HW-interfaces USB0
Rail mounting possibletrue
Number of HW-interfaces RS-4850
Number of HW-interfaces RS-2320
Supporting protocol for EtherNet/IPfalse
Number of analogue inputs4
Radio standard GPRSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SUCONETfalse
IO link masterfalse

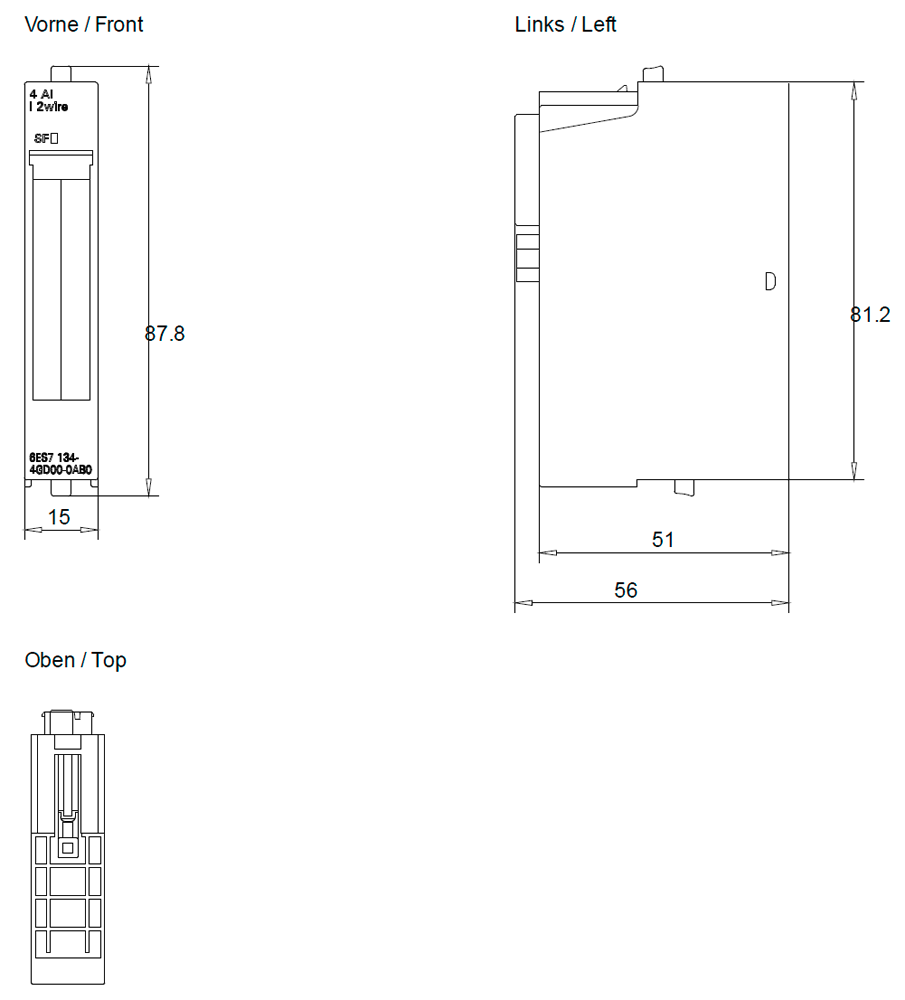

Depth52 mm
Input, resistance thermometerfalse
Number of HW-interfaces serial TTY0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Width15 mm
Supply voltage DC28.8 V
Input, currenttrue
Input, voltagefalse
Supporting protocol for DeviceNetfalse
Input signal, configurabletrue
Appendant operation agent (Ex ia)false
Wall mounting/direct mountingtrue
Height81 mm
Input, thermocouplefalse
Number of analogue outputs0
Resolution of the analogue inputs13 Bit
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Number of HW-interfaces other0
Rack-assembly possiblefalse
Supporting protocol for PROFIBUSfalse
Degree of protection (IP)IP20
Supporting protocol for Modbusfalse
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Supporting protocol for other bus systemsfalse
Front built-in possibletrue
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
System accessorytrue
Supporting protocol for ASIfalse
Number of HW-interfaces parallel0
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFINET CBAfalse
Analogue inputs configurabletrue
Supply voltage DC20.4 V
Suitable for safety functionsfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for CANfalse
Supporting protocol for TCP/IPfalse
Fieldbus connection over separate bus coupler possibletrue
