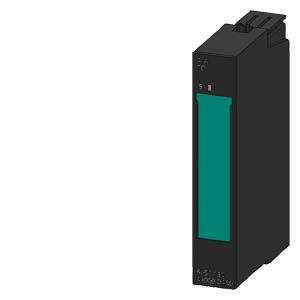

SIMATIC DP, Electronics module for ET 200S, 4 AI TC, +/-80 mV; 15 mm width, 15 bit+sign with SF LED (group fault)
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for LON | false |
Supporting protocol for other bus systems | false |
Radio standard GSM | false |
Input, resistor | false |

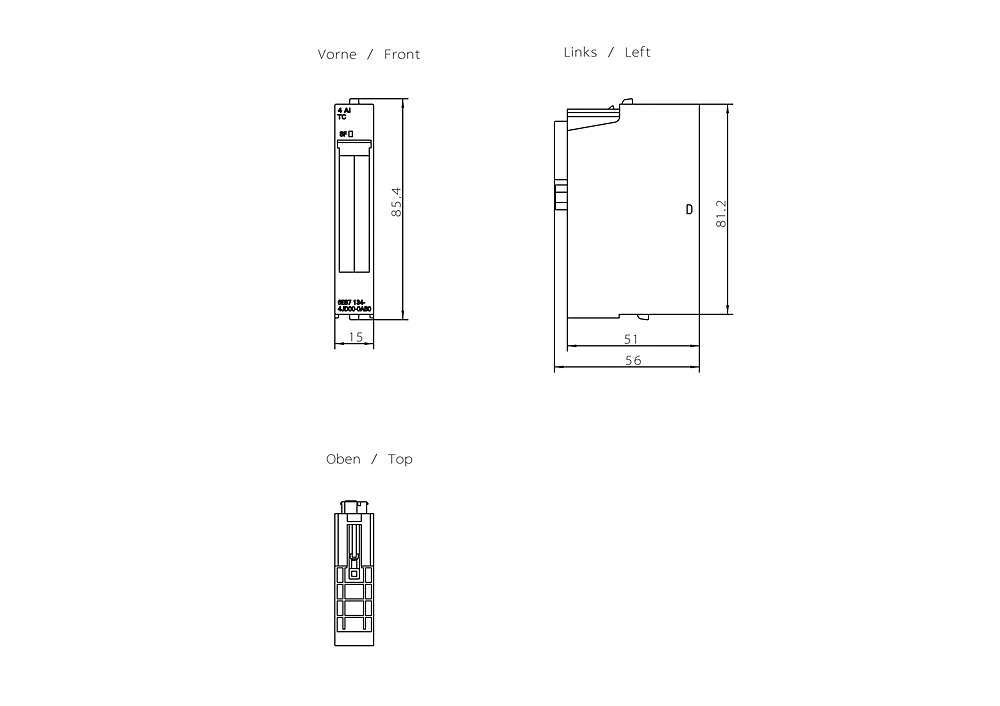

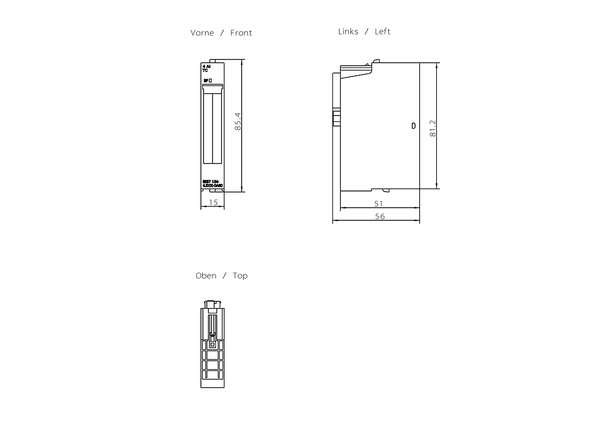

Width | 15 mm |
Number of HW-interfaces serial TTY | 0 |
Number of analogue inputs | 4 |
Supporting protocol for EtherNet/IP | false |
Appendant operation agent (Ex ib) | false |
Number of HW-interfaces RS-485 | 0 |
Number of HW-interfaces industrial Ethernet | 0 |
Number of interfaces PROFINET | 0 |
Number of HW-interfaces RS-232 | 0 |
Input, resistance thermometer | false |
Number of HW-interfaces wireless | 0 |
Supporting protocol for INTERBUS | false |
Supply voltage DC | 28.8 V |
Number of HW-interfaces USB | 0 |
Depth | 52 mm |
Supporting protocol for DeviceNet | false |
Rail mounting possible | true |
Input, thermocouple | true |
IO link master | false |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for PROFIsafe | false |
Input signal, configurable | true |
Radio standard WLAN 802.11 | false |
Radio standard GPRS | false |
Supporting protocol for SUCONET | false |
Supporting protocol for ASI | false |
Supporting protocol for KNX | false |
Number of HW-interfaces parallel | 0 |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for PROFINET IO | false |
System accessory | true |
Supporting protocol for PROFIBUS | false |
Resolution of the analogue inputs | 16 Bit |
Number of HW-interfaces other | 0 |
Degree of protection (IP) | IP20 |
Wall mounting/direct mounting | true |
Front built-in possible | true |
Height | 81 mm |
Supply voltage DC | 20.4 V |
Suitable for safety functions | false |
Supporting protocol for AS-Interface Safety at Work | false |
Supporting protocol for Data-Highway | false |
Radio standard Bluetooth | false |
Appendant operation agent (Ex ia) | false |
Input, current | false |
Supporting protocol for Modbus | false |
Rack-assembly possible | false |
Supporting protocol for SERCOS | false |
Number of analogue outputs | 0 |
Supporting protocol for DeviceNet Safety | false |
Fieldbus connection over separate bus coupler possible | true |
Supporting protocol for Foundation Fieldbus | false |
Supporting protocol for TCP/IP | false |
Radio standard UMTS | false |
Analogue inputs configurable | true |
Input, voltage | true |
Supporting protocol for PROFINET CBA | false |
Supporting protocol for CAN | false |
Supporting protocol for INTERBUS-Safety | false |
Voltage type (supply voltage) | DC |
