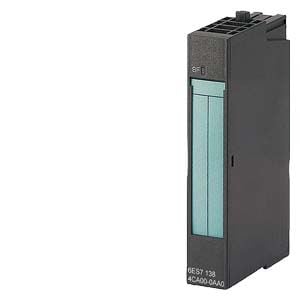

SIMATIC DP, Electronics module f. ET200S, 2AI TC High Feature, 15 mm width, 15 bit+sign with internal temperature Compensation
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for Modbus | false |
Supporting protocol for SERCOS | false |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for KNX | false |
Wall mounting/direct mounting | true |
Front built-in possible | true |
Input, current | false |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for Data-Highway | false |
Radio standard UMTS | false |
Supporting protocol for PROFIBUS | false |
Degree of protection (IP) | IP20 |
Supporting protocol for PROFINET IO | false |
System accessory | true |
Height | 81 mm |
Supply voltage DC | 20.4 V |
Suitable for safety functions | false |
Input signal, configurable | true |
Radio standard Bluetooth | false |
Supporting protocol for AS-Interface Safety at Work | false |
Supporting protocol for PROFINET CBA | false |
Supporting protocol for CAN | false |
Number of analogue outputs | 0 |
Rack-assembly possible | false |
Fieldbus connection over separate bus coupler possible | true |
Supporting protocol for DeviceNet Safety | false |
Appendant operation agent (Ex ia) | false |
Analogue inputs configurable | true |
Number of HW-interfaces wireless | 0 |
Input, voltage | true |
Resolution of the analogue inputs | 16 Bit |
Number of HW-interfaces other | 0 |
Supporting protocol for INTERBUS-Safety | false |
Voltage type (supply voltage) | DC |
Radio standard GSM | false |
Input, resistor | false |
Width | 15 mm |
Supporting protocol for Foundation Fieldbus | false |
Number of interfaces PROFINET | 0 |
Number of HW-interfaces serial TTY | 0 |
IO link master | false |
Supporting protocol for PROFIsafe | false |
Supporting protocol for TCP/IP | false |
Appendant operation agent (Ex ib) | false |
Input, resistance thermometer | false |
Supporting protocol for LON | false |
Number of HW-interfaces RS-485 | 0 |
Number of HW-interfaces RS-232 | 0 |
Supporting protocol for INTERBUS | false |
Supply voltage DC | 28.8 V |
Number of HW-interfaces USB | 0 |
Supporting protocol for ASI | false |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for DeviceNet | false |
Supporting protocol for other bus systems | false |
Depth | 52 mm |
Rail mounting possible | true |
Input, thermocouple | true |
Number of HW-interfaces parallel | 0 |
Number of analogue inputs | 2 |
Radio standard GPRS | false |
Number of HW-interfaces industrial Ethernet | 0 |
Supporting protocol for SUCONET | false |
Radio standard WLAN 802.11 | false |
