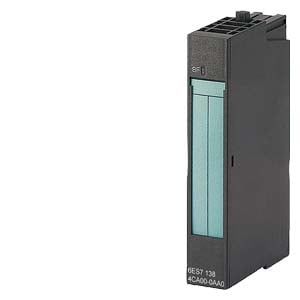

15 mm width, 15 bit+sign accuracy +/-0.1%, for 2-/3-/4-wire sensors, with internal compensation of the line resistance, with SF LED (group fault)
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for TCP/IP | false |
Fieldbus connection over separate bus coupler possible | true |
Supporting protocol for INTERBUS | false |
Number of HW-interfaces serial TTY | 0 |
IO link master | false |
Input, resistor | true |
Number of HW-interfaces industrial Ethernet | 0 |
Number of HW-interfaces parallel | 0 |
Input, resistance thermometer | true |
Radio standard UMTS | false |
Input, current | false |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Appendant operation agent (Ex ib) | false |
Supply voltage DC | 20.4 V |
Radio standard GSM | false |
Wall mounting/direct mounting | true |
Supporting protocol for PROFINET CBA | false |
Resolution of the analogue inputs | 16 Bit |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for ASI | false |
Rack-assembly possible | false |
Supporting protocol for AS-Interface Safety at Work | false |
Radio standard Bluetooth | false |
Height | 81 mm |
Number of HW-interfaces other | 0 |
Input signal, configurable | true |
Number of analogue inputs | 2 |
System accessory | true |
Supporting protocol for DeviceNet | false |
Depth | 52 mm |
Supporting protocol for PROFINET IO | false |
Supporting protocol for SUCONET | false |
Front built-in possible | true |
Supply voltage DC | 28.8 V |
Degree of protection (IP) | IP20 |
Supporting protocol for PROFIBUS | false |
Supporting protocol for SERCOS | false |
Rail mounting possible | true |
Supporting protocol for LON | false |
Supporting protocol for PROFIsafe | false |
Number of HW-interfaces RS-232 | 0 |
Supporting protocol for Data-Highway | false |
Supporting protocol for KNX | false |
Number of HW-interfaces wireless | 0 |
Radio standard WLAN 802.11 | false |
Supporting protocol for DeviceNet Safety | false |
Suitable for safety functions | false |
Supporting protocol for SafetyBUS p | false |
Number of HW-interfaces USB | 0 |
Number of analogue outputs | 0 |
Input, thermocouple | false |
Appendant operation agent (Ex ia) | false |
Width | 15 mm |
Supporting protocol for CAN | false |
Input, voltage | false |
Number of interfaces PROFINET | 0 |
Supporting protocol for Modbus | false |
Radio standard GPRS | false |
Supporting protocol for Foundation Fieldbus | false |
Analogue inputs configurable | true |
Number of HW-interfaces RS-485 | 0 |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for other bus systems | false |
