Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

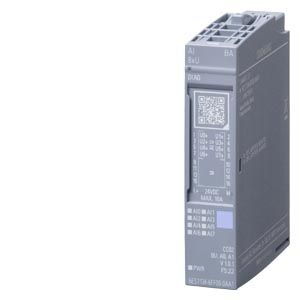

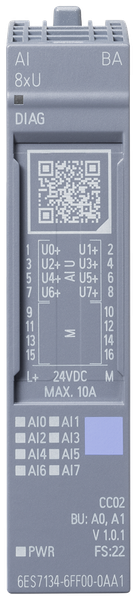

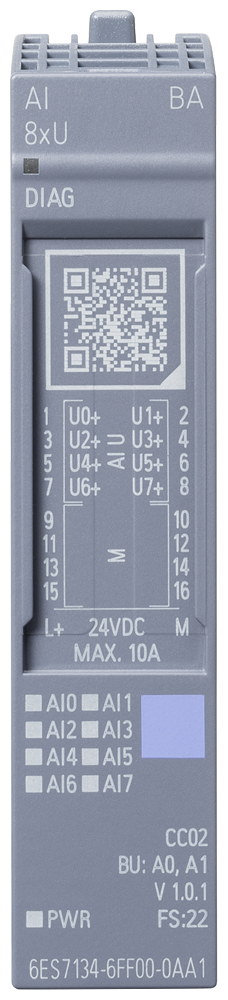

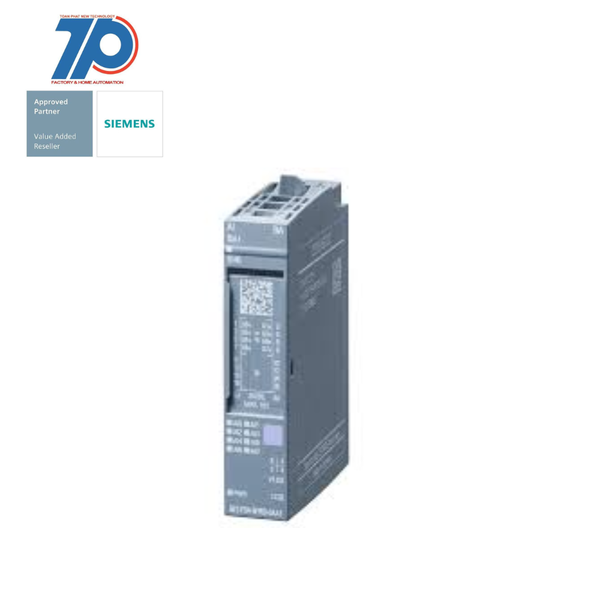

Material ID: 6ES7134-6FF00-0AA1
- SIMATIC ET 200SP
- Analog input module AI 8XU Basic
- Suitable for BU type A0, A1
- Color code CC02
- Module diagnostics
- 16 bit resolution
- Space-saving design for easy commissioning
- Degree of protection IP20
- Installation in compact control box
- Multi hot swapping feature for module replacement
- Wide range of communication methods
- Integrated MultiFieldbus interface module IM155-6MF
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative automation products
- Consistent data availability and versatile integration options
- Wide range of signal modules for cost-optimized configuration
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters for motors up to 5.5 kW
- Energy Meters, IO-Link master (V1.1.), and other communication and technology modules for adaptability
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for TCP/IP | false |
| System accessory | true |
| Supporting protocol for Foundation Fieldbus | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for SafetyBUS p | false |
| Number of analogue inputs | 8 |
| Degree of protection (IP) | IP20 |
| Radio standard Bluetooth | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for Modbus | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |

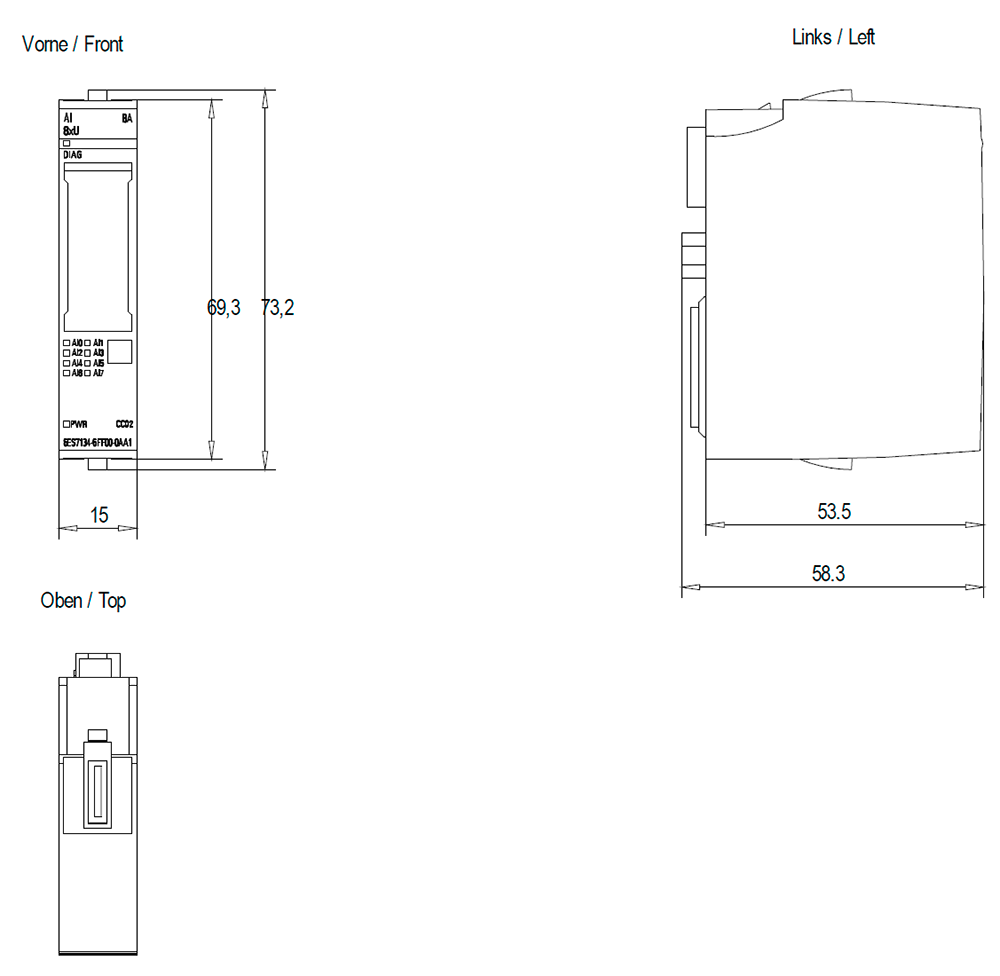

| Depth | 58 mm |
| Rack-assembly possible | true |
| Analogue inputs configurable | true |
| Supporting protocol for ASI | false |
| Radio standard UMTS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SUCONET | false |
| Rail mounting possible | true |
| Supporting protocol for PROFIsafe | false |
| Input, current | false |
| Supporting protocol for PROFIBUS | false |
| IO link master | false |
| Voltage type (supply voltage) | DC |
| Radio standard GPRS | false |
| Resolution of the analogue inputs | 16 Bit |
| Height | 73 mm |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET IO | false |
| Input, resistance thermometer | false |
| Width | 15 mm |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for other bus systems | false |
| Supply voltage DC | 19.2 V |
| Radio standard GSM | false |
| Supporting protocol for KNX | false |
| Supporting protocol for PROFINET CBA | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for LON | false |
| Supporting protocol for INTERBUS-Safety | false |
| Wall mounting/direct mounting | false |
| Input signal, configurable | true |
| Input, voltage | true |
| Suitable for safety functions | false |
| Supporting protocol for SERCOS | false |
| Appendant operation agent (Ex ib) | false |
| Input, thermocouple | false |
| Input, resistor | false |
| Front built-in possible | true |
