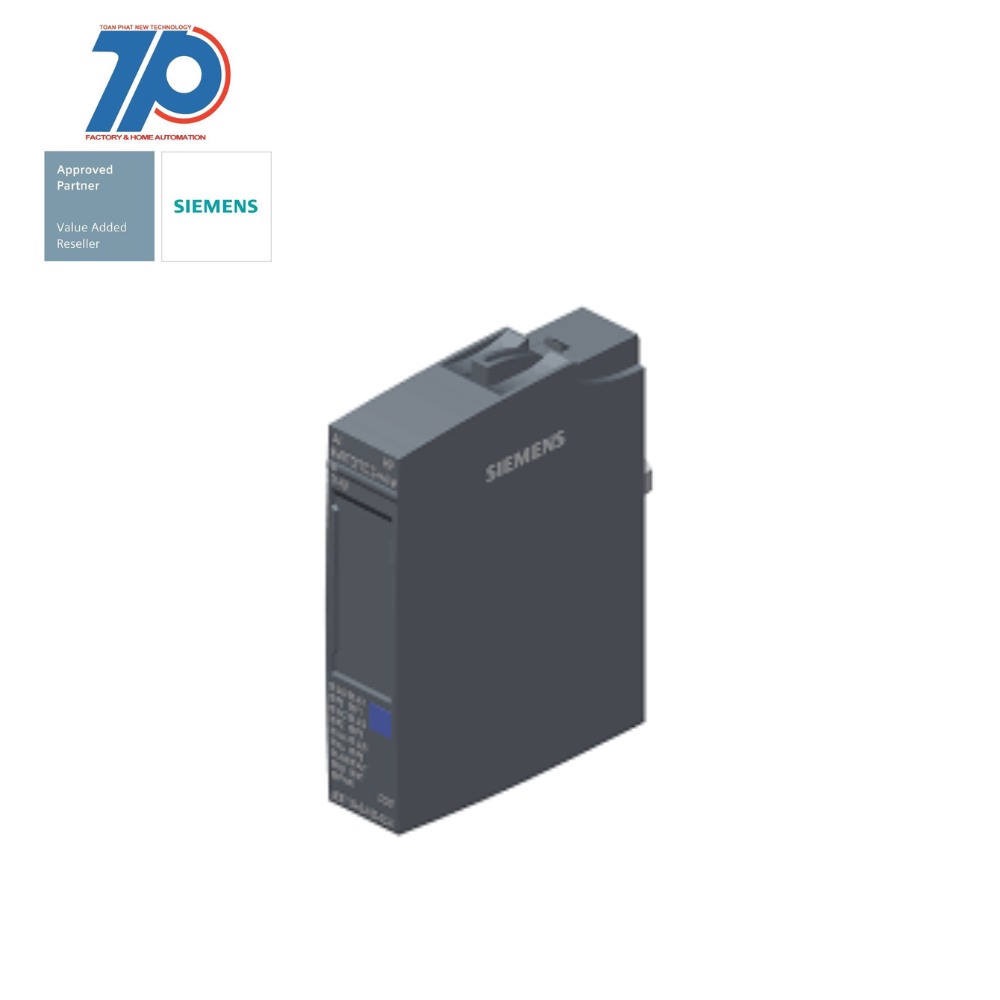

Material ID: 6ES7134-6JF00-0CA1
- SIMATIC ET 200SP, Analog input module, AI 8xRTD/TC 2-wire High Feature suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%
- Siemens offers a multifunctional and distributed I/O system with the ET 200SP
- The system is IP20 approved and can be installed in a compact control box
- Multi hot swapping feature allows for quick and simple module replacement
- Wide range of communication methods available with SIMATIC ET 200SP
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system simplifies installation and service
- Future-proof investment guaranteed with integration of innovative automation products
- Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance
- Scalable, cost-optimized configuration of ET 200SP station with a wide range of signal modules
- Fail-safe
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for LON | false |
| Supporting protocol for KNX | false |
| Input, resistor | true |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for Foundation Fieldbus | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for CAN | false |
| Input, voltage | true |
| Supporting protocol for INTERBUS-Safety | false |
| Analogue inputs configurable | true |
| Radio standard GPRS | false |
| Input, current | false |
| Suitable for safety functions | false |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| Voltage type (supply voltage) | DC |
| Appendant operation agent (Ex ia) | false |
| Height | 73 mm |
| Radio standard WLAN 802.11 | false |
| Rack-assembly possible | true |
| Input, thermocouple | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIBUS | false |
| Width | 15 mm |
| IO link master | false |
| Supporting protocol for DeviceNet | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for other bus systems | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SERCOS | false |
| Wall mounting/direct mounting | false |
| Front built-in possible | true |
| Supply voltage DC | 19.2 V |
| Supporting protocol for PROFINET CBA | false |
| System accessory | true |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SUCONET | false |
| Radio standard Bluetooth | false |
| Depth | 58 mm |
| Input, resistance thermometer | true |
| Supporting protocol for Data-Highway | false |
| Number of analogue inputs | 8 |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for TCP/IP | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for SafetyBUS p | false |
| Rail mounting possible | true |
| Resolution of the analogue inputs | 16 Bit |
| Input signal, configurable | true |
| Supporting protocol for INTERBUS | false |
| Radio standard UMTS | false |
