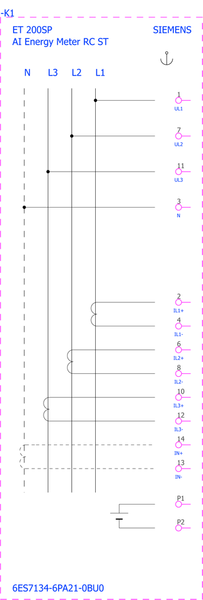

Material ID: 6ES7134-6PA21-0BU0
- SIMATIC ET 200SP, analog input module, AI Energy Meter RC ST
- For Rogowski coils or current/voltage transformer 333 mV, suitable for BU type U0
- Channel diagnostics
- Siemens offers a multifunctional and distributed I/O system with SIMATIC ET 200SP
- Commissioned simply due to space-saving design
- Approved for degree of protection IP20, suitable for compact control box installation
- Multi hot swapping feature allows for quick and easy module replacement
- Wide range of different and fast communication methods with SIMATIC ET 200SP
- Integrated MultiFieldbus interface module IM155-6MF supports multiple Ethernet protocols
- Standardized identification system simplifies installation and service
- Future-proof investment due to integration of innovative automation products
- Scalable, cost-optimized configuration of ET 200SP station
- Range of signal modules available, including fail-safe variants up to SIL 3
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Height | 73 mm |
| Supporting protocol for SERCOS | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for SUCONET | false |
| Supporting protocol for Data-Highway | false |
| Appendant operation agent (Ex ib) | false |
| Suitable for safety functions | false |
| Supply voltage DC | 28.8 V |
| Supporting protocol for LON | false |
| Supply voltage DC | 19.2 V |
| Input, thermocouple | false |
| Supporting protocol for PROFIsafe | false |
| Radio standard GSM | false |
| Rack-assembly possible | false |
| Radio standard WLAN 802.11 | false |
| System accessory | true |
| Radio standard GPRS | false |
| IO link master | false |
| Radio standard UMTS | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Modbus | false |
| Input, voltage | true |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Voltage type (supply voltage) | DC |
| Input, current | true |
| Rail mounting possible | true |
| Supporting protocol for CAN | false |
| Analogue inputs configurable | true |
| Radio standard Bluetooth | false |
| Supporting protocol for PROFIBUS | false |
| Depth | 58 mm |
| Input signal, configurable | true |
| Width | 20 mm |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet Safety | false |
| Front built-in possible | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for SafetyBUS p | false |
| Input, resistor | false |
| Input, resistance thermometer | false |
| Supporting protocol for ASI | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for KNX | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for other bus systems | false |
| Appendant operation agent (Ex ia) | false |
| Wall mounting/direct mounting | false |
| Supporting protocol for INTERBUS-Safety | false |
