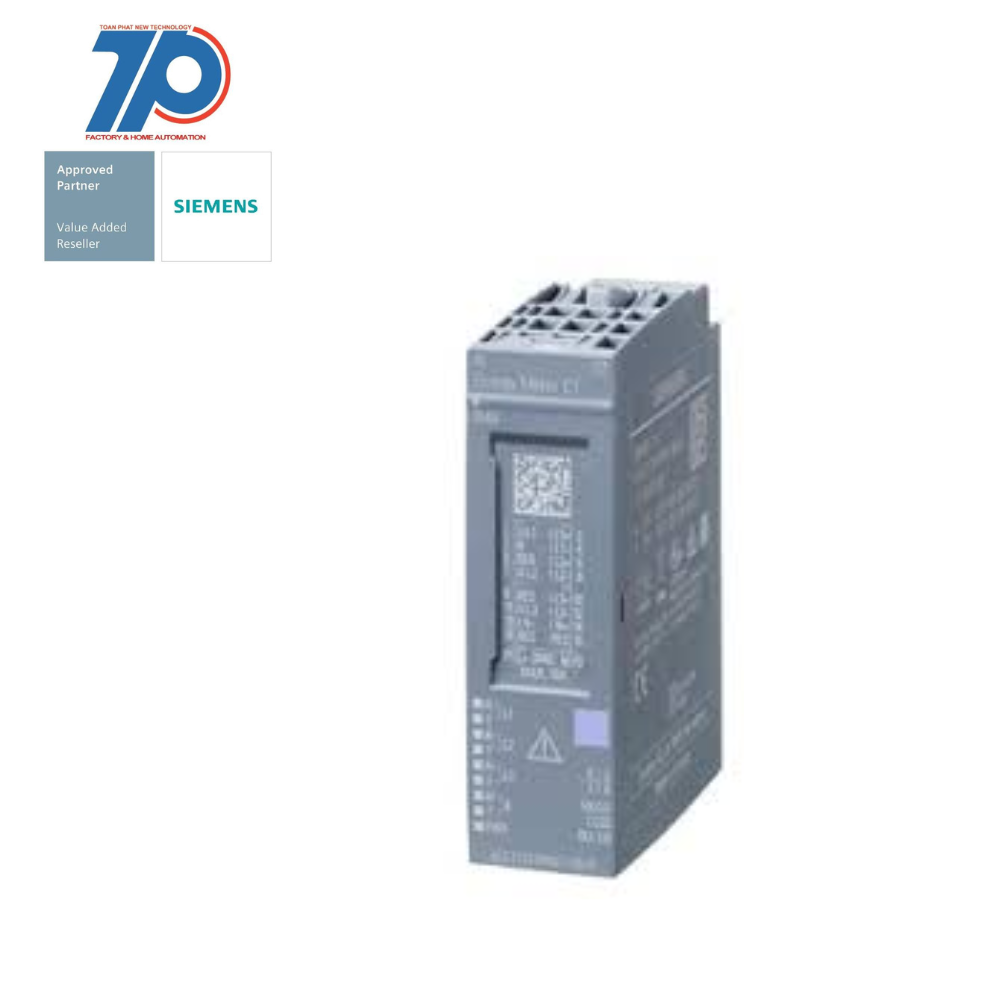

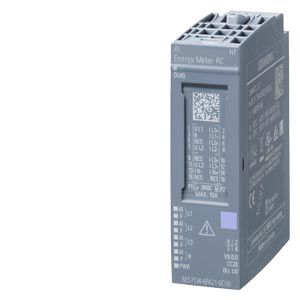

Material ID: 6ES7134-6PA21-0CU0
- SIMATIC ET 200SP analog input module, AI Energy Meter RC HF
- Suitable for Rogowski coils or current/voltage transformer 333 mV
- Includes network analysis functions
- Suitable for BU type U0
- Channel diagnostics
- SIMATIC ET 200SP features
- Multifunctional and distributed I/O system
- Space-saving design for simple commissioning
- Approved for degree of protection IP20
- Installation in compact control box
- Multi hot swapping feature for easy module replacement
- Communication methods of SIMATIC ET 200SP
- Wide range of different and fast communication methods
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Simplified installation and service
- Standardized identification system based on equipment labeling plates and color-coded connector assignments
- Future-proof investment guaranteed by Siemens
- Integration of innovative and long-life automation products
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Radio standard Bluetooth | false |
| Supporting protocol for SERCOS | false |
| Input, current | true |
| IO link master | false |
| Radio standard GPRS | false |
| Appendant operation agent (Ex ia) | false |
| Input signal, configurable | true |
| Depth | 58 mm |
| Suitable for safety functions | false |
| Radio standard UMTS | false |
| Height | 73 mm |
| Supporting protocol for SUCONET | false |
| System accessory | true |
| Supporting protocol for LON | false |
| Wall mounting/direct mounting | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for Foundation Fieldbus | false |
| Input, thermocouple | false |
| Supporting protocol for EtherNet/IP | false |
| Radio standard WLAN 802.11 | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFIsafe | false |
| Width | 20 mm |
| Input, voltage | true |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for KNX | false |
| Supply voltage DC | 28.8 V |
| Input, resistance thermometer | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET CBA | false |
| Degree of protection (IP) | IP20 |
| Front built-in possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Input, resistor | false |
| Fieldbus connection over separate bus coupler possible | true |
| Supporting protocol for other bus systems | false |
| Supply voltage DC | 19.2 V |
| Analogue inputs configurable | true |
| Supporting protocol for SafetyBUS p | false |
| Rack-assembly possible | false |
| Radio standard GSM | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for TCP/IP | false |
| Supporting protocol for PROFINET IO | false |
| Rail mounting possible | true |
