Material ID: 6ES7134-7SD00-0AB0

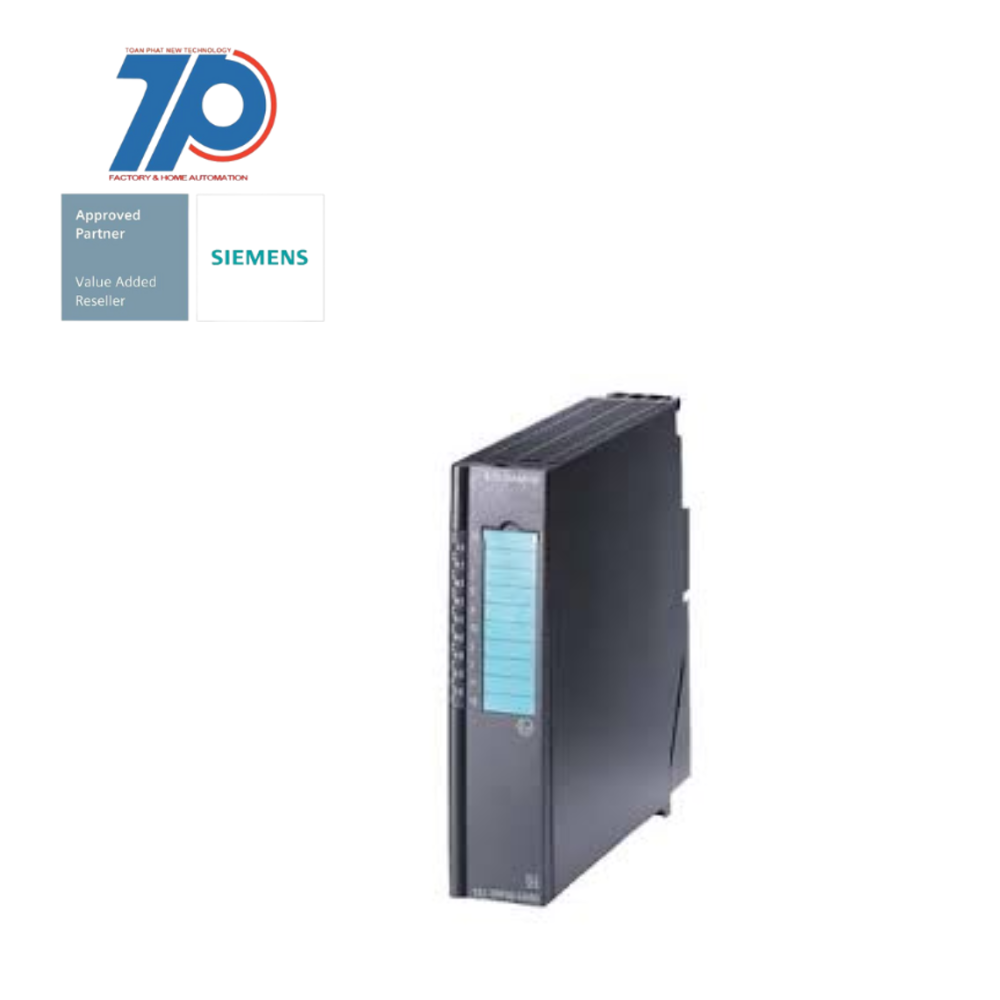

SIMATIC DP, modulo elettronico per ET200iSP
Il modulo elettronico SIMATIC DP per ET200iSP è progettato per la connessione di termocoppie per la misurazione di tensione. È certificato per l'uso in ambienti potenzialmente esplosivi, con le seguenti classificazioni:
Questo modulo offre 4 ingressi analogici (AI) per la connessione di termocoppie. Grazie alla sua compatibilità con il sistema ET200iSP, può essere facilmente integrato in un'ampia gamma di applicazioni industriali.
Con il modulo SIMATIC DP per ET200iSP, è possibile misurare con precisione la tensione delle termocoppie, consentendo un controllo accurato dei processi industriali.
- Ex ib (ia Ga) IIC T4 Gb
- Ex ib [ia IIIC Da] IIC T4 Gb
- Ex ib [ia] I Mb
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for SafetyBUS p | false |
| Supply voltage DC | 28.8 V |
| Radio standard GPRS | false |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFIsafe | false |
| Input signal, configurable | true |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces USB | 0 |
| Radio standard WLAN 802.11 | false |
| Input, voltage | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for DeviceNet Safety | false |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 20.4 V |
| Suitable for safety functions | false |
| Supporting protocol for PROFINET CBA | false |
| Number of analogue inputs | 4 |
| Number of HW-interfaces other | 0 |
| Radio standard UMTS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for other bus systems | false |
| Number of analogue outputs | 0 |
| Supporting protocol for KNX | false |
| Input, thermocouple | true |
| Wall mounting/direct mounting | false |
| Supporting protocol for TCP/IP | false |
| Degree of protection (IP) | IP30 |
| Supporting protocol for CAN | false |
| Supporting protocol for ASI | false |
| Input, resistor | false |
| Radio standard GSM | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for INTERBUS | false |

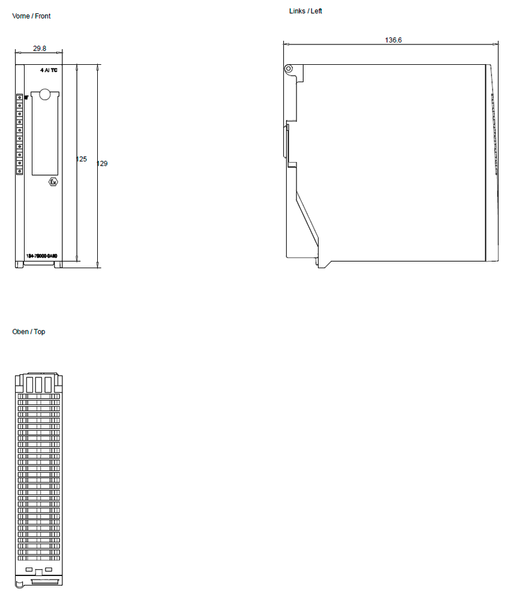

| Depth | 136.5 mm |
| Supporting protocol for Modbus | false |
| System accessory | true |
| Height | 129 mm |
| Fieldbus connection over separate bus coupler possible | true |
| Number of HW-interfaces serial TTY | 0 |
| Front built-in possible | true |
| IO link master | false |
| Appendant operation agent (Ex ib) | true |
| Resolution of the analogue inputs | 16 Bit |
| Analogue inputs configurable | true |
| Input, resistance thermometer | false |
| Number of HW-interfaces RS-485 | 0 |
| Appendant operation agent (Ex ia) | true |
| Radio standard Bluetooth | false |
| Input, current | false |
| Supporting protocol for EtherNet/IP | false |
| Number of HW-interfaces wireless | 0 |
| Width | 30 mm |
| Supporting protocol for PROFIBUS | false |
| Number of HW-interfaces industrial Ethernet | 0 |
