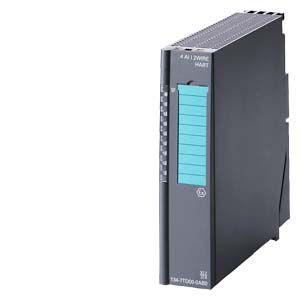

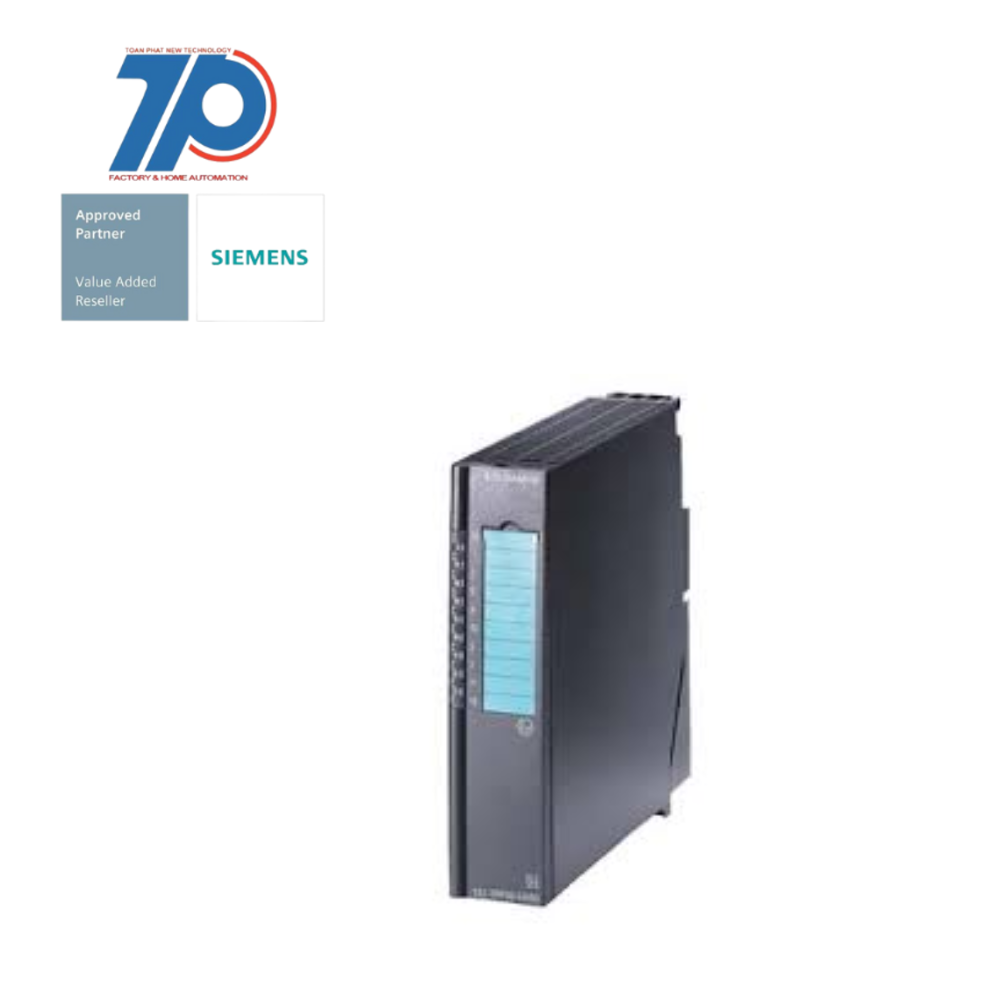

Material ID: 6ES7134-7TD00-0AB0

SIMATIC DP

Il modulo elettronico SIMATIC DP è progettato per ET200iSP e offre una soluzione avanzata per la connessione di trasmettitori HART a 2 fili. Supporta il protocollo HART Versione 6.0 e offre una serie di funzionalità tecniche.

Caratteristiche tecniche:

Vantaggi commerciali:

    • 4 AI HART: Il modulo supporta 4 ingressi analogici HART.
    • 2DMU: Dispone di 2 unità di misura digitali.
    • Protocollo HART Versione 6.0: Supporta l'ultima versione del protocollo HART.
    • Ex ib (ia Ga) IIC T4 Gb: Certificazione di sicurezza per l'uso in ambienti potenzialmente esplosivi.
    • Ex ib [ia IIIC Da] IIC T4 Gb: Certificazione di sicurezza per l'uso in ambienti con polveri combustibili.
    • Ex ib [ia] I Mb: Certificazione di sicurezza per l'uso in ambienti con gas infiammabili.
    • Connessione semplice e affidabile dei trasmettitori HART a 2 fili.
    • Compatibilità con il protocollo HART Versione 6.0 per una comunicazione avanzata.
    • Utilizzo sicuro in ambienti potenzialmente esplosivi, con polveri combustibili e gas infiammabili.
    • Funzionalità avanzate per una gestione efficiente dei dati.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
IO link masterfalse
Supporting protocol for Data-Highwayfalse
Suitable for safety functionsfalse
Appendant operation agent (Ex ib)true
Front built-in possibletrue
Input, resistorfalse
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse

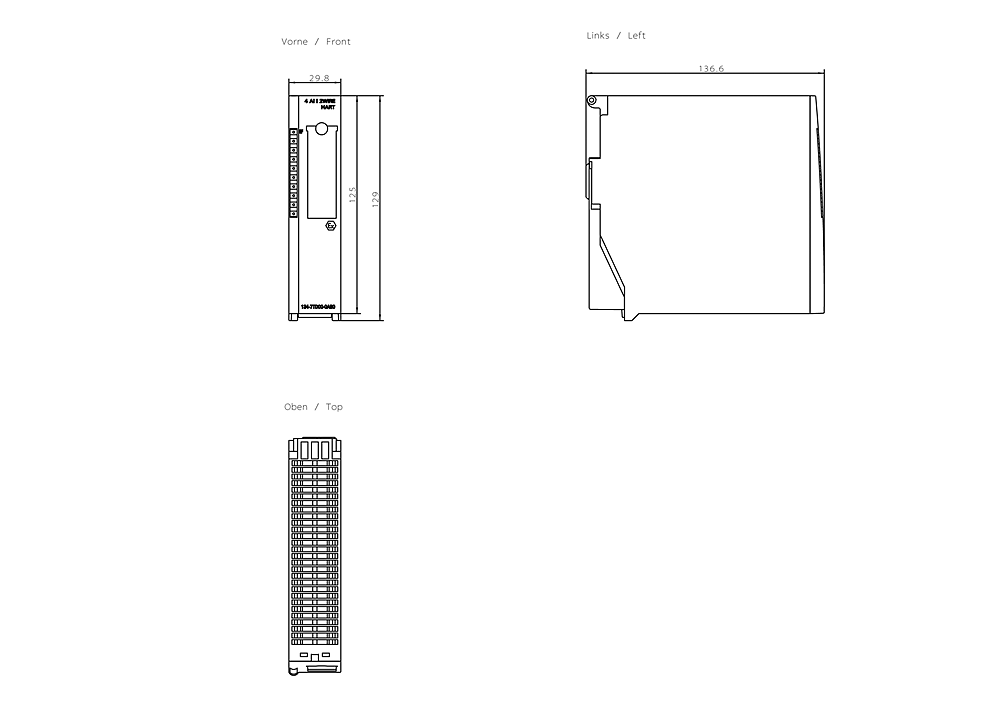

Depth136.5 mm
Supporting protocol for Modbusfalse
Height129 mm
Supply voltage DC28.8 V
Resolution of the analogue inputs13 Bit
Number of HW-interfaces wireless0
Input, voltagefalse
Degree of protection (IP)IP30
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces RS-4220
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Rack-assembly possiblefalse
Rail mounting possibletrue
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces RS-4850
Radio standard Bluetoothfalse
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Number of analogue outputs0
Supporting protocol for KNXfalse
Appendant operation agent (Ex ia)true
Input, thermocouplefalse
Fieldbus connection over separate bus coupler possibletrue
Analogue inputs configurabletrue
Input, resistance thermometerfalse
Number of interfaces PROFINET0
Supporting protocol for TCP/IPfalse
Number of HW-interfaces parallel0
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Width30 mm
Number of HW-interfaces RS-2320
Supporting protocol for PROFINET IOfalse
Supporting protocol for SUCONETfalse
Supply voltage DC20.4 V
Number of analogue inputs4
Input, currenttrue
Number of HW-interfaces other0
Supporting protocol for PROFIsafefalse
Wall mounting/direct mountingfalse
Input signal, configurabletrue
System accessorytrue
Radio standard UMTSfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Number of HW-interfaces serial TTY0
