Material ID: 6ES7135-4GB01-0AB0

Spare part

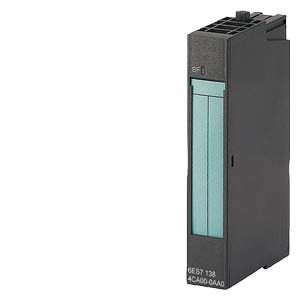

SIMATIC DP, Electronics module for ET 200S, 2 AO I 15 mm width, +/-20mA; 13 bit+sign, 4..20mA; 13 bit

Technical Features

Commercial Benefits

SIMATIC ET 200S is a versatile spare part that offers a modularly scalable, distributed I/O system. It is specifically designed for installation in small control boxes near the machine. The system allows modules to be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. With the capability of expanding up to 64 I/O modules, the system provides a comprehensive range of modules with various characteristics, improving scalability in functionality and price. The modules are available with standard functions (ST) as well as an extended range of functions and diagnostics (HF High Feature/ HS High Speed). One of the key advantages of the ET 200S system is its ease of application, allowing for swapping of modules and terminal boxes during operation. This feature significantly increases the availability and productivity of the machine, thanks to the "hot swapping" capability.

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules available with a wide variety of characteristics, improving scalability in functionality and price
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine
    • Hot swapping capability
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of interfaces PROFINET0
Number of HW-interfaces industrial Ethernet0
Degree of protection (IP)IP20
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Fieldbus connection over separate bus coupler possibletrue
Rail mounting possibletrue
Output signal configurabletrue
Number of HW-interfaces RS-2320
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
IO link masterfalse
Supporting protocol for Modbusfalse
Front built-in possibletrue
Radio standard WLAN 802.11false
Supporting protocol for PROFINET IOfalse
Supporting protocol for EtherNet/IPfalse
Output, voltagefalse
Supporting protocol for INTERBUSfalse

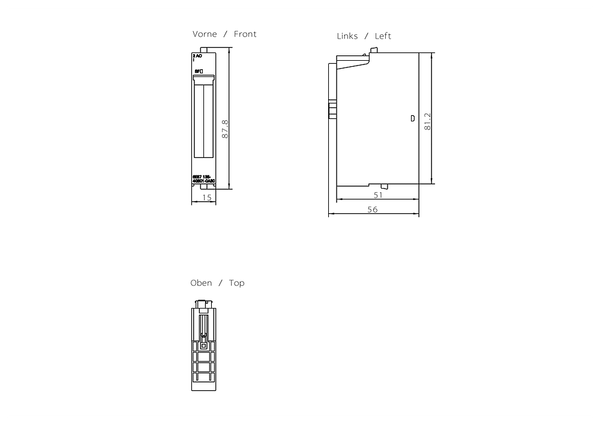

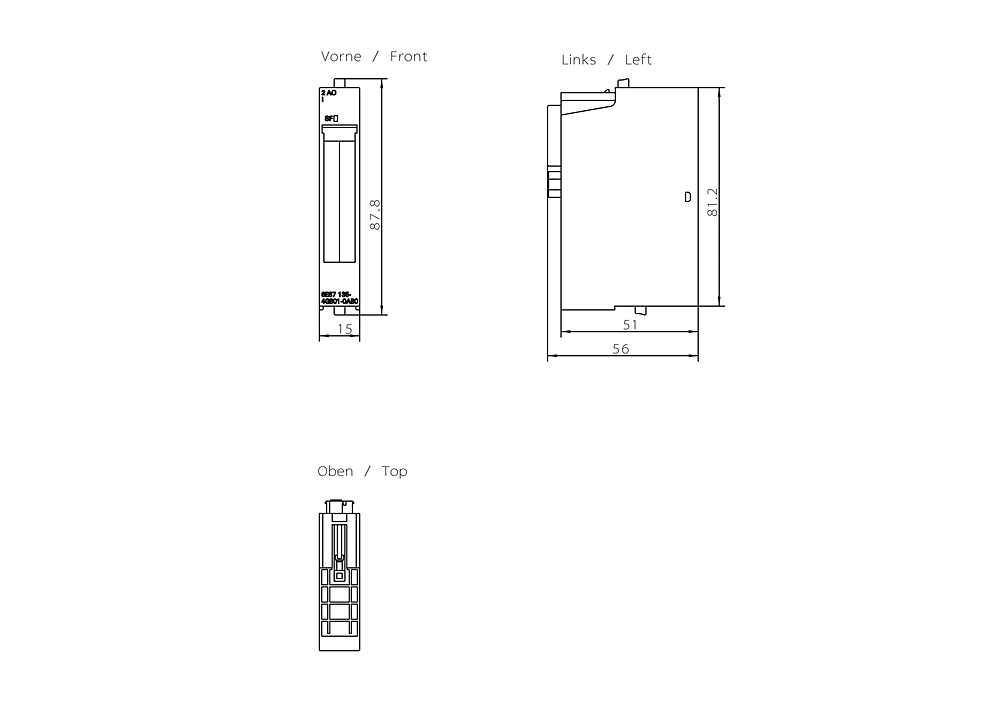

Height81 mm
Radio standard GSMfalse
Supporting protocol for PROFINET CBAfalse
Supply voltage DC28.8 V
Number of HW-interfaces other0
Supporting protocol for ASIfalse
Supporting protocol for other bus systemsfalse
Wall mounting/direct mountingtrue
Output, currenttrue
Supporting protocol for LONfalse
Supporting protocol for PROFIBUSfalse
Supply voltage DC20.4 V
Radio standard UMTSfalse
Number of HW-interfaces wireless0
Width15 mm
Radio standard GPRSfalse
Supporting protocol for TCP/IPfalse
Resolution of the analogue outputs14 Bit
Appendant operation agent (Ex ib)false
Number of HW-interfaces parallel0
Depth52 mm
Number of HW-interfaces serial TTY0
Supporting protocol for AS-Interface Safety at Workfalse
Rack-assembly possiblefalse
Supporting protocol for CANfalse
Number of HW-interfaces RS-4220
Supporting protocol for Foundation Fieldbusfalse
System accessorytrue
Suitable for safety functionsfalse
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Appendant operation agent (Ex ia)false
Supporting protocol for KNXfalse
Number of analogue outputs2
Supporting protocol for SERCOSfalse
Supporting protocol for DeviceNet Safetyfalse
Analogue outputs configurabletrue
Number of HW-interfaces RS-4850
Number of analogue inputs0
Supporting protocol for PROFIsafefalse
