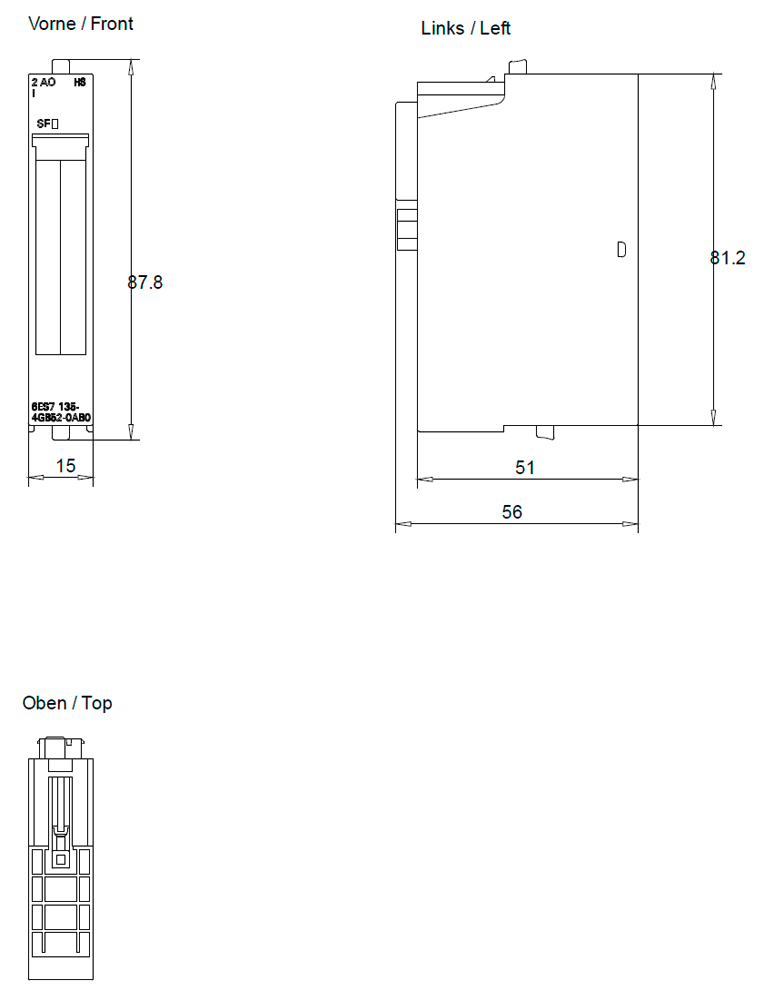

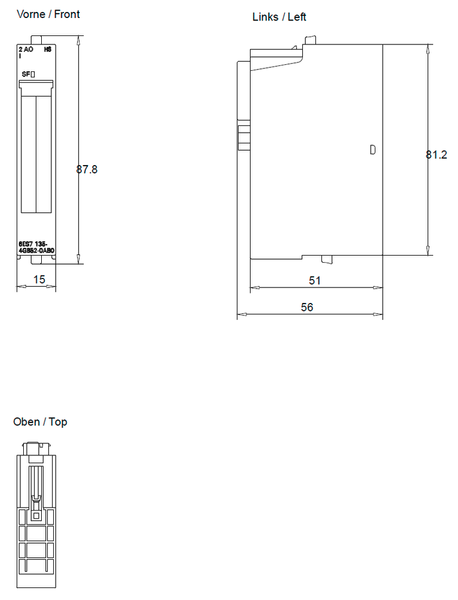

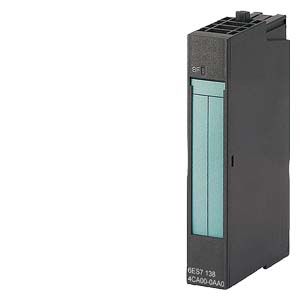

SIMATIC DP, Electronics module for ET 200S, 2 AO I High Speed 15 mm width, +/-20mA; 16 bit, 4..20 mA; 16 bit, Cycle time 0.1 ms with SF LED (group fault)
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Appendant operation agent (Ex ib) | false |
Appendant operation agent (Ex ia) | false |
Radio standard UMTS | false |
Supporting protocol for PROFINET CBA | false |
Supporting protocol for CAN | false |
System accessory | true |
Suitable for safety functions | false |
Height | 81 mm |
Supporting protocol for INTERBUS | false |
Resolution of the analogue outputs | 16 Bit |
IO link master | false |
Supporting protocol for PROFIBUS | false |
Output, voltage | false |
Radio standard GSM | false |
Number of HW-interfaces RS-232 | 0 |
Radio standard Bluetooth | false |
Number of HW-interfaces RS-485 | 0 |
Number of HW-interfaces RS-422 | 0 |
Supporting protocol for DeviceNet | false |
Supporting protocol for DeviceNet Safety | false |
Number of HW-interfaces wireless | 0 |
Supporting protocol for Modbus | false |
Analogue outputs configurable | true |
Radio standard GPRS | false |
Supporting protocol for ASI | false |
Number of analogue inputs | 0 |
Supporting protocol for KNX | false |
Voltage type (supply voltage) | DC |
Supporting protocol for INTERBUS-Safety | false |
Width | 15 mm |
Number of interfaces PROFINET | 0 |
Number of HW-interfaces other | 0 |
Number of HW-interfaces industrial Ethernet | 0 |
Supporting protocol for SafetyBUS p | false |
Supporting protocol for PROFIsafe | false |
Degree of protection (IP) | IP20 |
Front built-in possible | true |
Wall mounting/direct mounting | true |
Supply voltage DC | 28.8 V |
Output, current | true |
Supporting protocol for TCP/IP | false |
Supply voltage DC | 20.4 V |
Supporting protocol for AS-Interface Safety at Work | false |
Number of HW-interfaces parallel | 0 |
Supporting protocol for SUCONET | false |
Number of analogue outputs | 2 |
Supporting protocol for EtherNet/IP | false |
Depth | 52 mm |
Rack-assembly possible | false |
Rail mounting possible | true |
Output signal configurable | true |
Supporting protocol for SERCOS | false |
Supporting protocol for other bus systems | false |
Fieldbus connection over separate bus coupler possible | true |
Supporting protocol for PROFINET IO | false |
Supporting protocol for Foundation Fieldbus | false |
Supporting protocol for LON | false |
Number of HW-interfaces serial TTY | 0 |
Supporting protocol for Data-Highway | false |
Radio standard WLAN 802.11 | false |
Number of HW-interfaces USB | 0 |
