Spare part

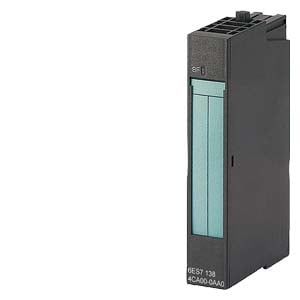

SIMATIC DP, Electronics module 2 AO U High Feature for ET 200S

15 mm width, Cycle time per module: 0.5 ms, +/-10V; 15 bit+sign, 1.. 5V; 15 bit, Operational limit +/-0.07% with SF LED (group fault)

Technical Features

Commercial Benefits

• • SIMATIC ET 200S is a modularly scalable, distributed I/O system
  • Designed for installation in small control boxes near the machine
  • Modules can be plugged directly into an ET 200S IM with CPU functionality
  • Modules can be connected to a central controller via PROFINET or PROFIBUS
  • Expandable with up to 64 I/O modules
  • Comprehensive range of modules with different characteristics
  • Modules available with standard functions (ST), extended functions (HF High Feature), and diagnostics (HS High Speed)
  • Easy application with the capability of swapping modules and terminal boxes during operation
  • Improved scalability in terms of functionality and price
  • Increased availability and productivity of the machine due to "hot swapping"

Additional Information
