Material ID: 6ES7135-4MB02-0AB0

Spare part

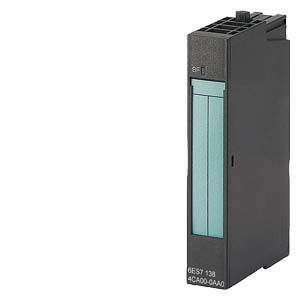

SIMATIC DP, Electronics module 2 AO I High Feature for ET 200S, 15 mm width

Cycle time per module: 0.5 ms

+/-20mA; 15 bit+sign

4.. 20mA; 15 bits Operational limit +/-0.05% with SF LED (group fault)

SIMATIC ET 200S

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price.

Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Number of HW-interfaces other0
    Supporting protocol for EtherNet/IPfalse
    System accessorytrue
    Radio standard GPRSfalse
    Wall mounting/direct mountingtrue
    Supporting protocol for other bus systemsfalse
    Radio standard Bluetoothfalse

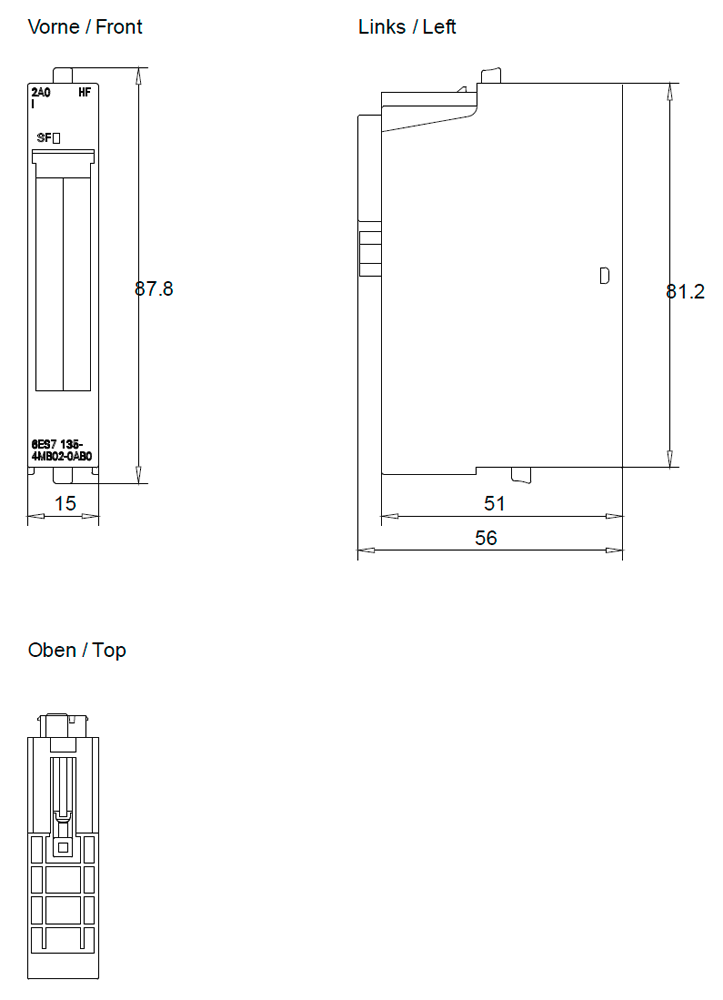

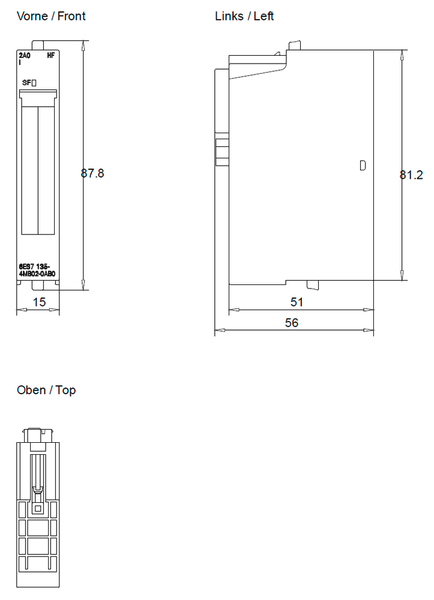

    Width15 mm
    Supporting protocol for PROFIsafefalse
    Output, voltagefalse
    Number of HW-interfaces RS-4850
    Radio standard WLAN 802.11false
    Number of HW-interfaces RS-4220
    Output signal configurabletrue
    Radio standard GSMfalse
    Rail mounting possibletrue
    Fieldbus connection over separate bus coupler possibletrue
    IO link masterfalse
    Depth52 mm
    Supply voltage DC20.4 V
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for TCP/IPfalse
    Supporting protocol for DeviceNetfalse
    Number of HW-interfaces USB0
    Supporting protocol for Data-Highwayfalse
    Appendant operation agent (Ex ib)false
    Supporting protocol for ASIfalse
    Rack-assembly possiblefalse
    Number of analogue outputs2
    Radio standard UMTSfalse
    Supporting protocol for LONfalse
    Supporting protocol for PROFIBUSfalse
    Number of HW-interfaces RS-2320
    Supporting protocol for PROFINET CBAfalse
    Output, currenttrue
    Supply voltage DC28.8 V
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for SUCONETfalse
    Number of HW-interfaces parallel0
    Analogue outputs configurabletrue
    Front built-in possibletrue
    Supporting protocol for CANfalse
    Supporting protocol for Foundation Fieldbusfalse
    Appendant operation agent (Ex ia)false
    Degree of protection (IP)IP20
    Number of analogue inputs0
    Supporting protocol for Modbusfalse
    Number of interfaces PROFINET0
    Number of HW-interfaces wireless0
    Resolution of the analogue outputs16 Bit
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Number of HW-interfaces serial TTY0
    Supporting protocol for KNXfalse
    Supporting protocol for INTERBUSfalse
    Height81 mm
    Suitable for safety functionsfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for AS-Interface Safety at Workfalse
